cement grinding plant
- Capacity: 50 TPD – 1000 TPD
- Grinding System: Ball Mill System / Vertical cement Mill (VRM)
- Fineness Of Product: 320–450 m²/kg
The process of cement production is primarily composed of raw material preparation, clinker firing, and cement grinding. Cement grinding is the final step and a key step. The quality and efficiency of cement grinding directly influence the quality, application, and price of cement. It allows manufacturers to produce different types of cement (OPC, PPC, PSC) with stable quality and high efficiency.
Our cement grinding plant could help you increase production efficiency, reduce energy consumption and ensure production safety. It is one of the key factors for achieving refined production, high automation and high efficiency.With capacities ranging from 50 TPD to 1000+ TPD, we provide turnkey grinding stations tailored to your specific project requirements
parameter of cement grinding plant
| Item | Details |
|---|---|
| Capacity | 50 TPD – 1000 TPD |
| Main Raw Materials | Clinker, Gypsum, Additives (Fly Ash, Slag, Limestone, etc.) |
| Grinding System | Ball Mill System / Vertical cement Mill (VRM) |
| Fineness Of Product | 320–450 m²/kg |
| Specific Power Consumption | 25–35 kWh/ton cement (Depends on the process) |
| Cement Types | OPC, PPC, PSC, Composite Cement |
| Final Product Storage | Cement Silos (Single or Multiple, 500–10,000 tons capacity each) |
| Installation & Commissioning | 4–6 Months |
cement grinding unit process
Crushing
The raw material of the cement grinding plant is cement clinker, whose particles are larger, and need the process of crushing. Raw material crushing usually adopts hammer crushers and impact crushers. After crushing, the material is sent to the next step.
Classification
The particle sizes of the raw materials after grinding are not uniform. It needs to be handled on a graded basis to ensure that the particle size of the cement after grinding meets the requirements. Classification usually adopts an air classifier. The particle is classified by air. The particles that meet the requirements are sent into the grinding machine for grinding, while the particles that do not meet the requirements are returned to the grinding machine for further grinding.
Grinding
Grinding is the core step of the cement grinding plant. Its main aim is to grind the raw materials into a fine powder suitable for the production of cement products. The grinding is usually done with a vertical roller mill. By grinding the raw material particles, we can achieve the desired fineness and activity.
Packing
After grinding, the cement is packed to be transported to the packaging machine by conveyor.
advantages of cement grinding plant
Low energy consumption
The cement mill grinds the raw materials into powder within the grinding cylinder through the action of friction and gravity. At the same time, the cement grinding unit has various conical sieve plates, which could effectively remove the fine powder. This increases the quality of the product and reduces energy consumption.
Good quality
Our cement grinding plant could effectively increase the quality of the product. In the cement grinding plant, the raw material can be fully mixed and ground. Evenly processing could make the cement have a stable quality. At the same time, the fineness of the cement is higher, which is more conducive to the hardening and solidification of the cement.
High output
Our cement grinding plant has high output. That’s because the equipment and technologies used are relatively mature in our cement grinding plant. This could effectively grind the raw cement materials into the desired powder form. At the same time, it could carry out classification and sorting processes to ensure product quality.
Easy to handle
Our cement grinding plant is easy to handle. It adopts modern monitoring systems and PLC technology, making cement production convenient and fast. In addition, the maintenance cost of the cement grinding plant is lower, just needing a simple cleaning and maintenance.
cement grinding machine
Vertical Cement Mill
It is mainly used for grinding the cement clinker and mixed materials during the cement production process. Vertical roller mill has two systems, one type is a closed-loop system, and the other is an open-loop system. We adopt a closed-loop system as standard. Because it is more energy-efficient and can grind different types of cement.

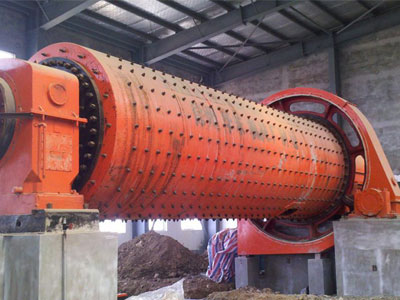

Ball mill
The main advantages of our ball mill are high energy-saving efficiency. Compared with an ordinary ball mill, the processing capacity has increased by more than 20%, the production efficiency has increased by 20%-30% and the energy consumption has reduced by 30%. The inner part of the ball mill ball mill have good wear resistance and is not easy to wear out.

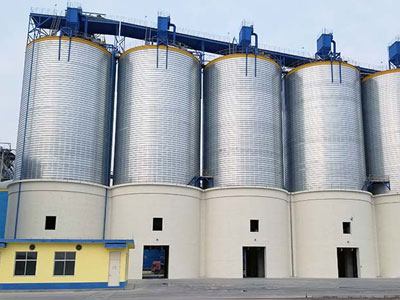

Cement Silo
After grinding, the cement is sent to the cement silo. The composition and fineness of the ground cement may fluctuate. By using the homogenization system, the properties of the cement are made more uniform, ensuring stable quality at the time of delivery. A cement silo usually has a ventilation system and temperature control to avoid cement caking.

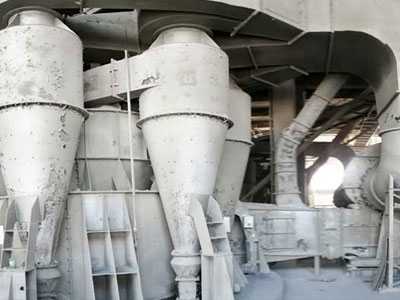

Cement classifier
The main equipment of the closed-loop grinding system is the cement classifier. It is used to screen cement, and the coarser cement powder is sent back to the grinding machine for further grinding to ensure the uniformity of the particle size. In addition, it could also screen fine substances, avoid the phenomenon of material condensation, and adhere to the grinding media.
why choose us
Reduce investment cost
We will optimize the overall layout of your production line based on specific conditions, making the process simple, smooth, compact, reasonable, and beautiful, reducing floor space, reducing equipment, and the amount of wires and cables used.
Make the plan based on the requirements
Carry out project-specific planning and formulation of specific plans for each project. Adopt a step-by-step cooperation approach and provide goods in stages.
Rich experience
We have participated in a number of cement production line projects both at home and abroad. And have rich EPC project experience and a comprehensive management system.
Complete industrial chain with fast delivery
We have a large-scale casting base. The project needs a vertical roller machine. Other equipment required for the project is all manufactured by our company. We have strong processing capabilities and a fast production speed.
Production line contract operation service
We have 20 years of manufacturing experience, more than 150 cement production lines, and, based on actual installation practices, offer you comprehensive services ranging from production operation to technical guidance, ensuring greater peace of mind.

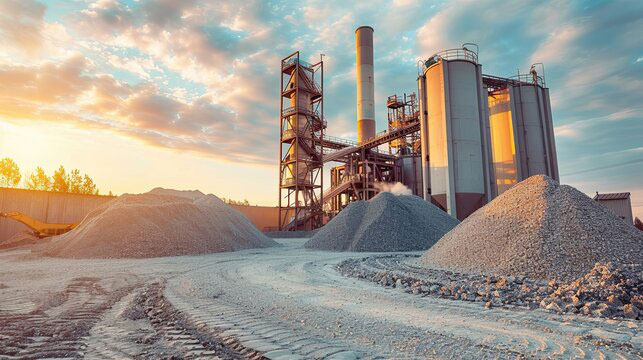

global projects of cement grinding unit
500TPD Cement Grinding Plant in Africa
- Location: Nigeria
- Capacity: 500 Tons Per Day
- Equipment Supplied: Ball Mill, High-Efficiency Separator, Cement Silo
800TPD Cement Grinding Unit in Vietnam
- Location: Vietnam
- Capacity: 800 TPD
- Equipment Supplied: Vertical Roller Mill (VRM), Conveying System, Cement Storage Silos
