- AGICO is a leading cement industry equipment supplier. We could provide you with a complete turnkey solution for the ground granulated blast-furnace slag (GGBS) production line.
- Ground granulated blast-furnace slag is also often called steel slag Portland cement. It is a by-product of the process of making iron in a blast furnace. GGBS is made from the slag discharged during the ironmaking process of a blast furnace, its main component is silicate, aluminum silicate, and calcium silicate. After a specific process such as quenching and grinding, GGBS becomes a high-performance slag powder, which is widely used in the building materials field.
free quote services
long-term maintenance support
the advantage of GGBS production
low CO2 emissions
Compared with traditional cement production, GGBS energy consumption production is lower to reduce CO2 emissions.
Waste use
Waste slag, a by-product of steelmaking, is reused, keep it out of landfills.
High cost-effective
GGBS is usually cheaper and lowers the cost of concrete production cost.
simple craft
GGBS production line is simple, don’t need complicated technology and maintenance required.
the process of GGBS production
01. Raw material preparation
A blast furnace slag is broken and screened by a magnetic separator and vibrating screen, getting the slag to meet standards.
02. Drying treatment
The slag is dried to remove water, ensuring the smooth progress of subsequent grinding.
03. Grinding process
After drying slag, adopting a ball mill or vertical roller mill to grind, obtain GGBS that meets the particle size requirement.
04. Classification and collection
Ground GGBS is classified by sorting machine. The finished product is collected by the bag dust collector, and transported to the silo.
the main equipment of GGBS production

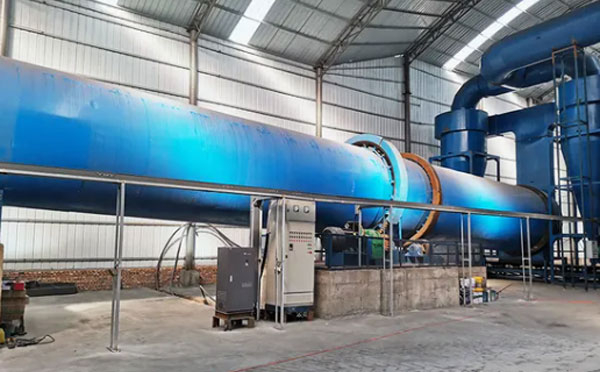

rotary dryer

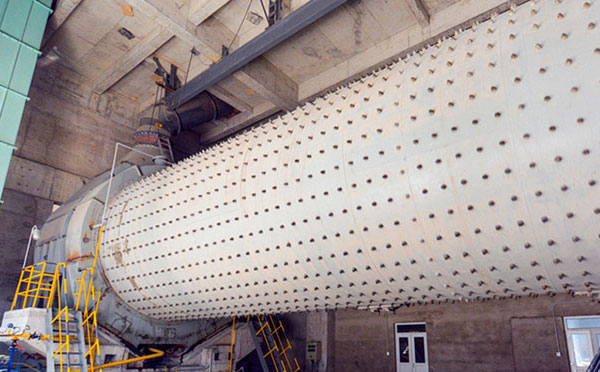

ball mill

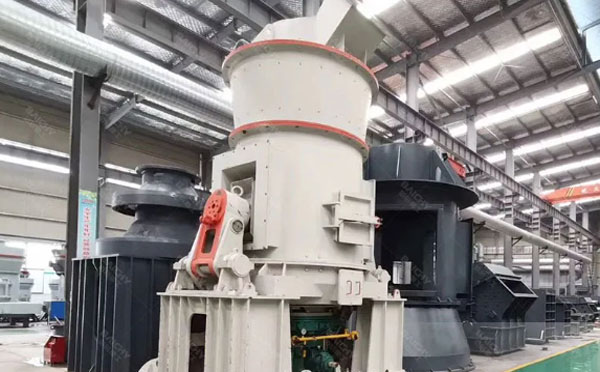

vertical roller mill

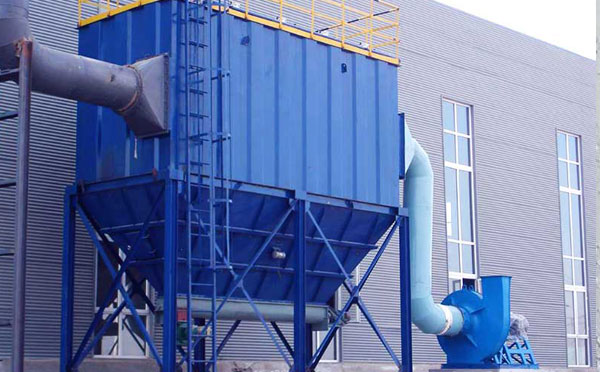

bag filter

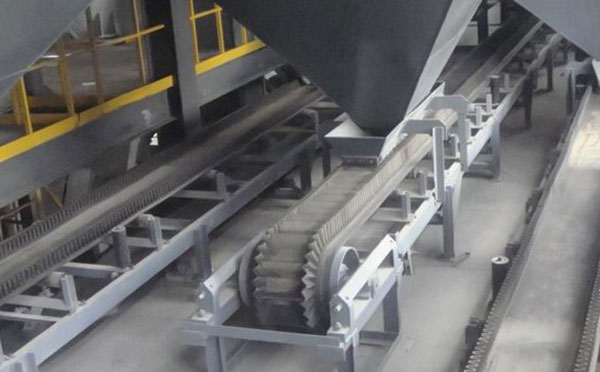

belt conveyor
The difference between ball mill and vertical roller mill
The slag grinding system has a ball mill and a vertical roller mill. Each piece of equipment has its advantages and disadvantages. The ball mill is a traditional grinding system, that has strong adaptability to materials, a large specific surface area, and better particle shape than a vertical roller mill. Its shape of particle is better than a vertical roller mill and has simple maintenance and cheap accessories. However the area is large, the power consumption is large, the material needs to be dried separately, and the process is complex. The vertical roller mill is simple. Drying, grinding, and powder selection are all completed in the mill. Its investment is small and low unit power consumption, and fast heat transfer, but more difficult to maintain than the ball mill.
| Item | Ball mill | Vertical roller mill |
|---|---|---|
| Installation and footprint | Horizontal installation, large footprint | Vertical installation, small footprint |
| Energy efficiency | Lower | Higher |
| Flexibility | Handle wet and dry grinding | Primarily dry grinding |
| Applicability | Fine grinding | Rough grinding |
| Finished product | High purity, low pollution. | Susceptible to metal contamination |
| Cost | Higher investment, lower operation | Lower investment, higher operation |
The parameter of ball mill
| Ball Mill Model | Hourly Capacity (t/h) | Annual Capacity (t/y) | Ball Mill Motor Power (KW) |
|---|---|---|---|
| φ1.2×4.5m | 1.5-2 | 15000 | 55 |
| φ1.5×5.7m | 3-4 | 30000 | 130 |
| φ2.2×9m | 8-9 | 60000 | 475 |
| φ2.2×11m | 9-10 | 80000 | 570 |
| φ2.4×11m | 12-14 | 100000 | 630 |
| φ2.4×13m | 15-17 | 130000 | 800 |
| φ2.6×10m | 18-20 | 150000 | 1000 |
| φ3.0×11m | 23-25 | 200000 | 1250 |
The parameter of vertical roller mill
| Vertical Mill Model | Hourly Capacity (t/h) | Annual Capacity (t/y) | Vertical Mill Motor Power (KW) |
|---|---|---|---|
| AGRM08.2 | 1.5-2 | 15000 | 55 |
| AGRM11.2 | 3-4 | 30000 | 110 |
| AGRM13.2 | 8-9 | 60000 | 185 |
| AGRM15.2 | 9-10 | 80000 | 250 |
| AGRM17.2 | 12-14 | 100000 | 355 |
| AGRM19.2 | 15-17 | 130000 | 450 |
| AGRM20.2 | 18-20 | 150000 | 560 |
| AGRM22.3 | 23-25 | 200000 | 710 |
Application of GGBS
GGBS is extensively used. GGBS is not only used in concrete production and ocean wharf but also in infrastructure and cement. AGICO Group has experience in 32 years, could provide a full range of solutions for GGBS production line. If you want to build a GGBS production line, our company is your best choice.
concrete
bridge
ocean wharf

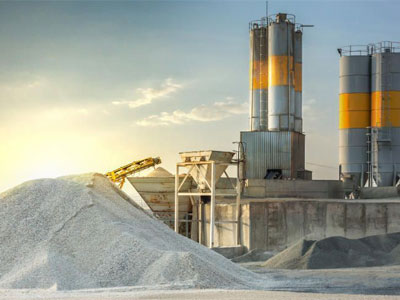

cement
why choose us
01
turnkey solution
Starting from customer needs, the BBGS production line is designed according to specific circumstances. We provide complete turnkey solutions, from design to installation and training to meet different customer requirements.
02
advance technology
The complete production line adopts a pulse bag-type dust collector. The production system adopts a negative pressure process, the dust emission concentration ≤10mg/m³, lower than the national standard.
03
HIGH QUALITY
The quality of the project could guarantee and the project could fast delivery. GGBS production line of AGICO Group has been exported from over 80 countries. Its quality is recognized by customers in various countries.
04
Quick return on profits
With the slag widely used, the demand for the GGBS production line fast increasing. Investment in GGBS production lines usually pays for itself in 1-3 years.
