Rotary Kiln Cement Plant

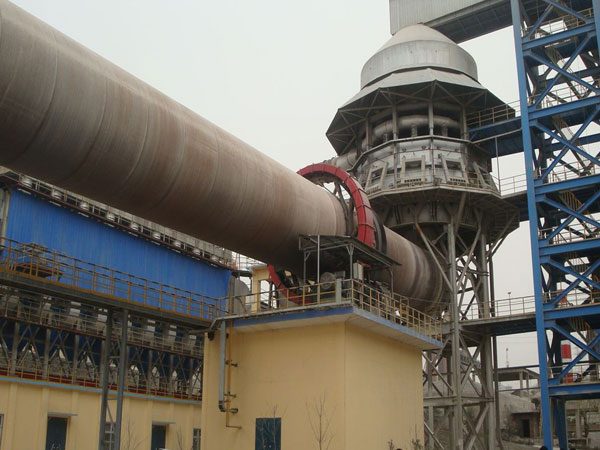

What Is Rotary Kiln cement plant

‌Rotary Kiln cement plant ‌refers to a plant that calcines cement clinker using a rotary kiln. The rotary kiln is the core equipment used in cement production. When the cement rotary kiln is working, the coal (natural gas) is burned in the rotary kiln to generate heat, and the raw material is heated by gas conduction. At the same time, as the kiln body keeps rotating according to the designed slope and speed, the raw material also periodically rolls forward in the kiln so that the raw material is transported from the feeding end to the discharging end to ensure that the raw material becomes a qualified clinker. The rotary kiln’s temperature and rotation ensure the clinker’s quality and uniformity. This provides the basics for the subsequent processing of cement.

process system in rotary kiln cement plant

STEP 1: Feed raw materials: Raw materials enter the rotary kiln from the feed port.
STEP 2: Rotate and heat: The kiln rotates slowly, leading the raw materials to move gradually down the kiln. At the bottom of the kiln, fuel is burned to make a lot of heat. The raw materials are heated to high temperatures, reaching around 1400–1500°C.
STEP 3: Create clinker: The material is dried, preheated, calcined, and cooled in the kiln to eventually become clinker.
STEP 4: Cool the clinker: The clinker is rapidly cooled from its high temperature to around 120°C. This prevents damage to the equipment and minimizes the temperature of the clinker when it enters the cement mill. The cooled clinker is discharged from the discharge port of the rotary kiln.
STEP 5: Store the clinker: The cooled clinker is stored in clinker silos.

equipments of rotary kiln cement plant

Cement rotary kiln

The cement rotary kiln is used for calcining cement clinker. The coal is burned in the rotary kiln to generate heat, the material is heated through gas conduction. The material moved from the feed end to the discharge end, to complete the clinker calcining process.

Crushing equipment

The materials of cement production are limestone, clay, and iron ore. These materials need to be crushed by a crusher before entering the production line. The particle size of the crushed material is more uniform and easier to further processing.

Ball mill

It is a core equipment for further crushing after the material is crushed. It is widely used for the final stage of cement production. The cement clinker is added to the appropriate amount of mixed material for grinding, finally producing finished cement.

Cooling machine

The clinker has a high temperature. If it is not cooled by cooling, it will influence the quality of the cement. Cement cooling equipment through uniform spray or heat exchange to realize evenly cooling cement.

Packing machine

The cement packing machine is a kind of special equipment necessary in the production of bagged cement. It is mainly applied to packing cement. It could improve packing speed, reduce labor costs, and ensure packing quality.

Preheater

The main function of a cement preheater is to use the waste gas and the residual heat of ‌ the kiln tail and ‌ decomposing furnace to preheat raw materials into the kiln. It not only meets the production demand, and improves production efficiency, but also makes full use of waste heat.

the advantage of cement rotary kiln

Advanced kiln design

The cement rotary kiln realizes high precision measuring piston pump, high precision speed regulating valve, and contact graphite block sealing device through technical innovation. It ensures the cement rotary kiln stability and high efficiency.

High efficiency cooling system

As a leading manufacturer of rotary kilns, our specially designed cooling systems use advanced heat exchange technology to cool the clinker quickly. This technology not only reduces the energy consumption in the cement production process but also realizes the recycling of energy and further improves energy utilization efficiency.

High yield and low consumption

The heat generated by fuel combustion through the rotary kiln is timely transferred to the raw material. This makes the equipment achieve high yield and low consumption. Compared with the same specification equipment, the output is increased by 5%-10%, and the heat consumption is reduced by 15%

Cement Rotary Kiln Specifications

specification	diameter(m)	length(m)	inclination(%)	output(t/d)	rotate speed(r/min)	motor power(kw)	total weight(t)
Φ2.5×40	2.5	40	3.5	180	0.44-2.44	55	149.61
Φ2.5×50	2.5	50	3.0	200	0.62-1.86	55	187.37
Φ2.5×54	2.5	54	3.5	280	0.48-1.45	55	196.29
Φ2.7×42	2.7	42	3.5	320	0.10-1.52	55	198.50
Φ2.8×44	2.8	44	3.5	450	0.437-2.18	55	201.58
Φ3.0×45	3.0	45	3.5	500	0.5-2.47	75	210.94
Φ3.0×48	3.0	48	3.5	700	0.6-3.48	100	237.00
Φ3.0×60	3.0	60	3.5	800	0.3-2	100	310.00
Φ3.2×50	3.5	50	4.0	1000	0.6-3	125	278.00
Φ3.3×52	3.3	52	3.5	1300	0.266-2.66	125	283.00
Φ3.5×54	3.5	54	3.5	1500	0.55-3.4	220	363.00
Φ3.6×70	3.6	70	3.5	1800	0.25-1.25	125	419.00
Φ4.0×56	4.0	56	4.0	2300	0.41-4.07	315	456.00
Φ4.0×60	4.0	60	3.5	2500	0.396-3.96	315	510.00
Φ4.2×60	4.2	60	4.0	2750	0.41-4.07	375	633.00
Φ4.3×60	4.3	60	3.5	3200	0.396-3.96	375	583.00

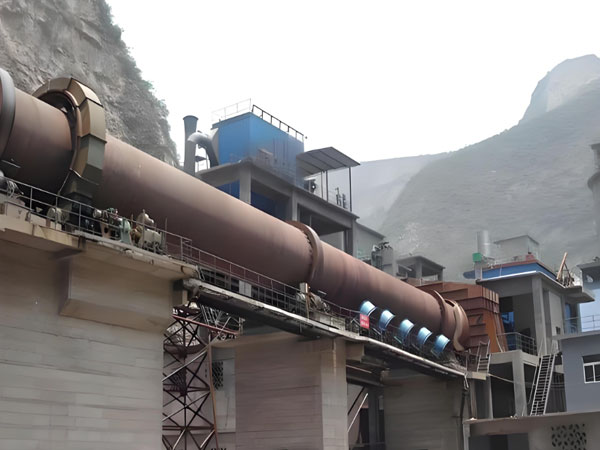

Why Choose AGICO Group For Rotary Kiln Cement Plant

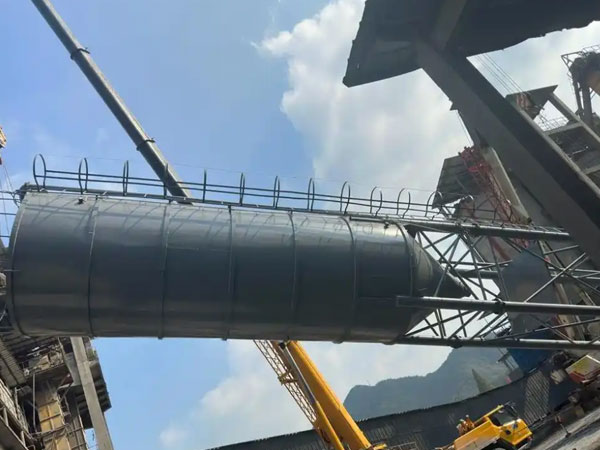

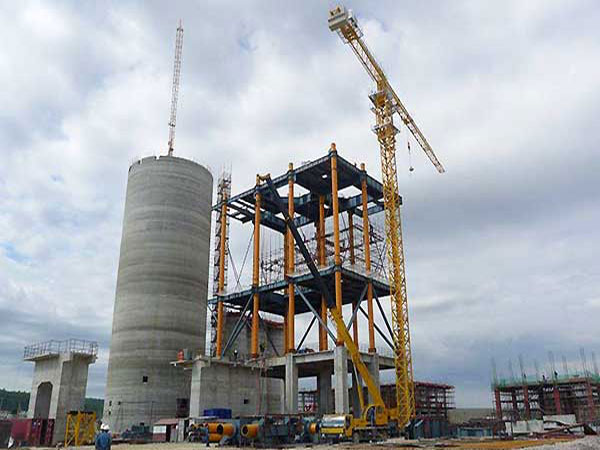

AGICO Group could provide production line design, civil construction, complete sets of equipment, installation and commissioning, technical services, and project general contracting. From the customer needs, to customize satisfactory solutions for customers. Civil construction involves land development, infrastructure construction, and public works. Installation equipment refers to installing, commissioning, and servicing various equipment. We provide the highest quality service and provide cement solutions for our customers.
