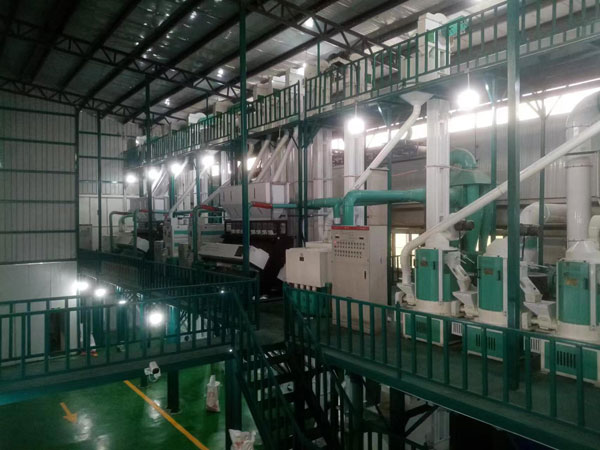

rice flour making machine
Rice flour is made from high-quality rice and exhibits characteristics such as high expansion and uniform powder quality, as well as good water solubility. Rice flour is used for producing noodles, rice noodles, pastries, baked goods, and other similar products. Additionally, we have equipment such as a maize milling plant and a wheat flour mill.
- Capacity: 1-150 tpd
- Main process: cleaning, peeling, grinding, sieving, drying, and packaging
how to make rice flour

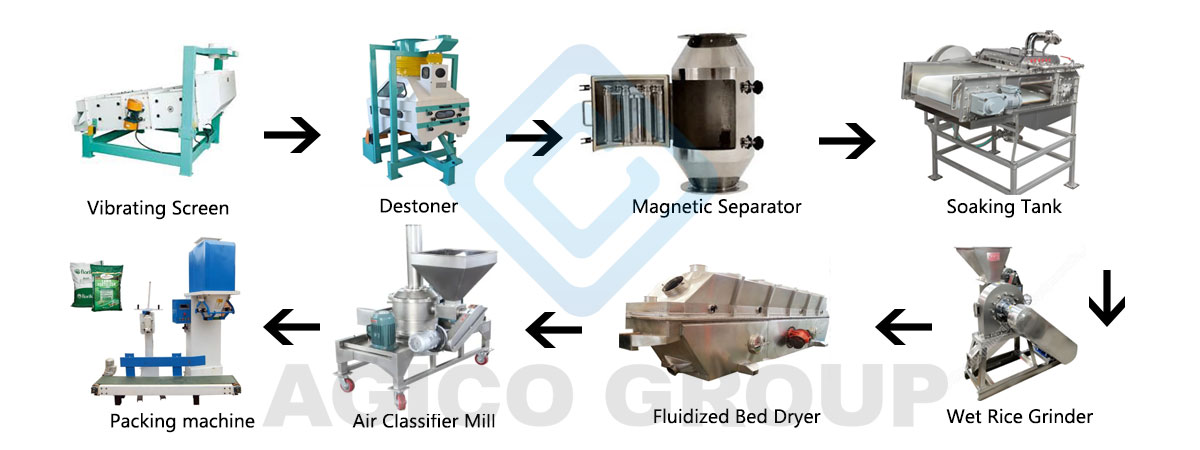

wet grinding
- Step 1: Cleaning and Shelling: Vibrating screens and stone-removing machines, as well as magnetic separators, are used to remove impurities from the surface of the rice and immature grains.
- Step 2: Soaking: The rice need be soaked in water at room temperature or at a low temperature for 6 to 24 hours. This could soften the rice, reduce the energy consumption of wet grinding, and increase whiteness and fineness.
- Step 3: Wet grinding: Use a sand mill to grind the soaked rice and water together into a rice paste. This results in a finer particle size, and starch damage is minimal.
- Step 4: Filtration: Adopting a vibrating screen to remove coarse particles and fibers, which will ensure the uniformity of the powder.
- Step 5: Dehydration: Excess water is removed from the rice paste by using a centrifugal dehydrator to reduce the burden on the drying system.
- Step 6: Drying: After dehydration, the rice flour adopt flash dryer to achieve the desired final moisture content of 12% – 14%.
- Step 7: Fine grinding: Drying is complete, and the rice flour undergoes a second fine grinding process to enhance its uniformity.
- Step 8: Screening and grading: The dried rice flour is screened and classified through a centrifugal screening machine to meet different particle size requirements.
- Step 9: Packing: Rice flour is usually packaged in 0.5–50 kg bags using automatic weighing, filling, and sealing systems.

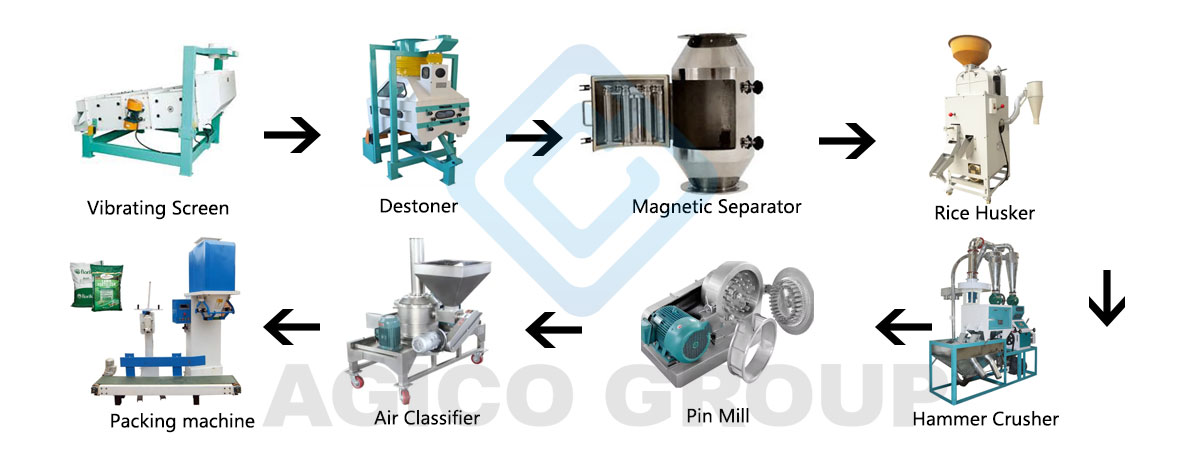

dry grinding
- Step 1: Cleaning and Shelling: Vibrating screens and stone-removing machines, magnetic separators are used to remove the impurities on the surface of the rice and the immature grains.
- Step 2: Milling: Use a grinder to grind the washed and shelled rice into powder; the dry grinding method is simple and has a lower investment cost.
- Step 3: Screening and Classification: The milled rice flour is screened and classified to achieve a uniform particle size.
- Step 4: Drying: Drying is applied to reduce the moisture content of the rice flour by fluidized bed dryers or hot air ovens to a safe storage level, typically around 12–14%.
- Step 9: Packing: Rice flour is usually packaged in 0.5–50 kg bags using automatic weighing, filling, and sealing systems.
wet grinding vs dry grinding
| Item | Wet grinding | Dry grinding |
|---|---|---|
| partical size | thinner | relatively thick |
| whiteness | high | ordinary |
| equipment investment | high | low |
| application | High- end food (Baby food and infant cereals) | Common use (Noodles and general food processing) |
Application of rice flour milling
Rice flour is not only used for food, such as traditional foods made from rice, bread, and snack products, but also used in industry as a filler and binder for tablets. Additionally, it can be used in skincare and as an animal feed supplement.
advantages of rice flour making machine
Low maintenance cost
The main parts of this equipment adopt patented stainless steel material, could ensure production efficiency and be used for a long time. Service life is long so as to enable users to avoid incurring excessive expenses in maintenance.
High automation
The rice flour production process has high automation, from raw material cleaning, shelling, grinding, screening, and drying to the finished product, achieve continous and stable operation, efficient reduce labor dependency.
Wide application
Our rice flour making machine has a wide application; it not only processes rice, but also other grains such as wheat, millet, and other types of grains.
the profit of rice flour making machine
rice flour making machine cost
| Capacity | Cost |
|---|---|
| Small 5–10 TPD | USD 80,000 – 250,000 |
| Medium 20–50 TPD | USD 350,000 – 1.5 million |
| Large 100+ TPD | USD 2 – 5 million |
Major Operating Costs
| Item | Cost |
|---|---|
| Raw rice | 60–70% |
| Electricity & fuel | 8–12% |
| Labor | 5–8% |
| Maintenance & consumables | 3–5% |
| Packaging & logistics | 5–7% |
Take a 20 tpd (medium-sized) mill as an example
- Plant capacity: 20 tons/day
- Operating days: 300 days/year
- Annual output: 6,000 tons
- Standard rice flour: USD 380–500 / ton
- Premium wet-milled flour: USD 550–750 / ton
- Annual Revenue: USD 2.3 – 4.5 million
- Estimated Net Profit: USD 350,000 – 900,000 per year
why choose us
AGICO Turnkey Solutions of rice flour making machine
step 1. Investment analysis
We pay special attention to choosing suitable technology and the scale. Because this will decide on the final profit capacity of the rice flour plant, this method ensures higher yield, stable output quality, and a strong return on investment over the long term.
Step 2. Project design
Every customer all could get our tailor-made service so that find the best solution for rice processing. Based on your raw material, production capacity, factory layout, and budget, we offer customized process designs and equipment configurations.
step 3. Installation and training
We provide on-site installation and commissioning services, which are handled by experienced engineers. In addition, we also provide free training for operation staff to ensure the safe and stable operation.
step 4.After-sales service
We will regularly conduct customer visits and quality tracking to learn about our product use conditions. Listen to the feedback from customers and provide timely services to those who encounter problems.

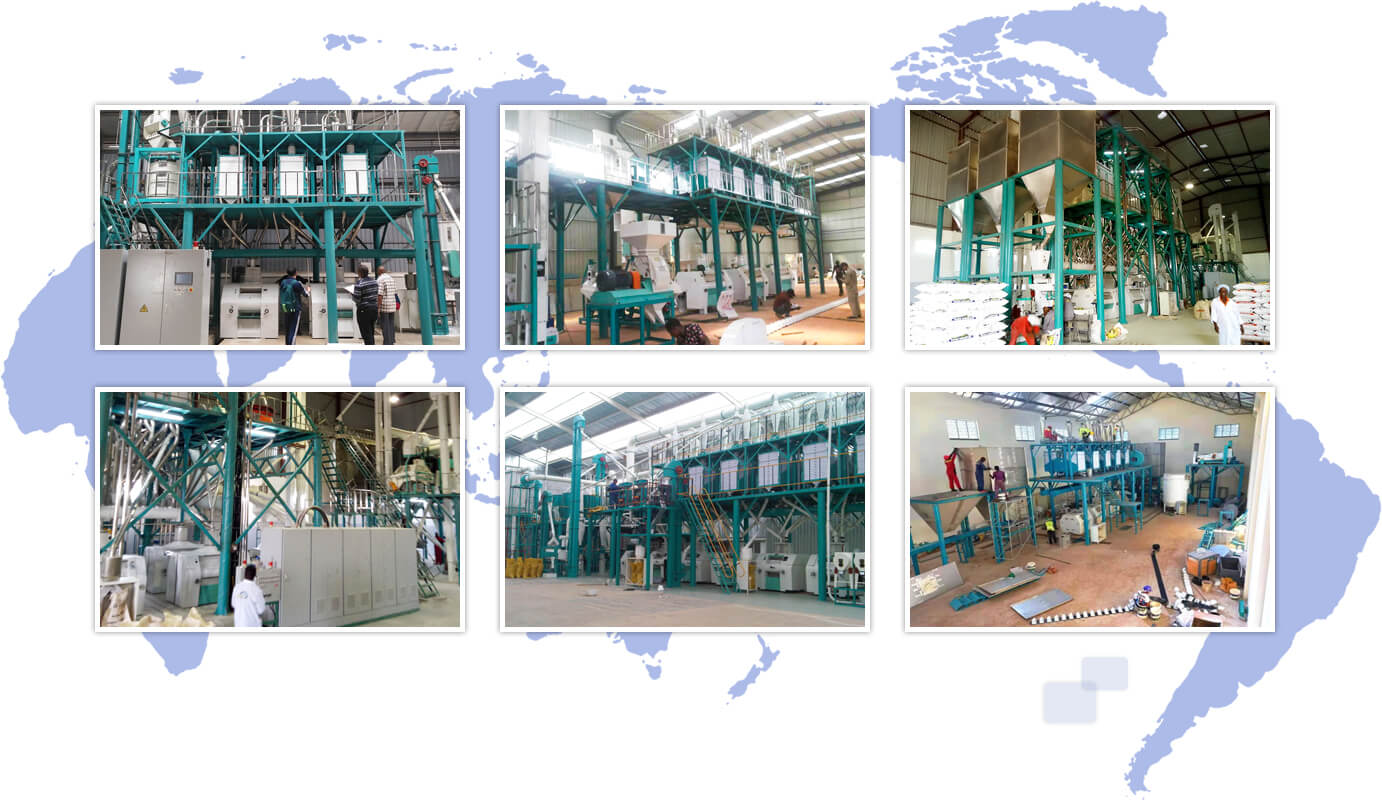

global case of rice flour making machine
FAQ Of rice flour making machine
Is the rice processing business profitable?
Rice processing is profitable; if you choose a suitable location, purchase suitable equipment, and select the right strategy, you will get adequate profit. What is the pillar of a country’s economy? It is agriculture
How to start a rice flour processing business?
Choosing a high-quality and reliable supplier of large-scale rice flour processing equipment, you have already succeeded by half. Our designed rice processing equipment has low maintenance costs and high automation. It also has a small footprint. We will recommend to you the most suitable rice processing equipment for your market. Get professional advice now.
What types of rice processing machines are there?
We have rich experience in the rice flour industry, could manufacture ans supplier all kinds of processing machines, small, medium, and large-sized rice flour processing equipment（1-100tpd). We can customize any-sized rice flour processing machine according to customer requirements
How much is the rice flour processing machine?
As a leading manufacturer of rice flour making machines, we insist on high -quality and favorable price. All products are sold directly by the factory at discounted prices. However, the exact prices may vary depending on the different processes and equipment selected.
