Quick Lime Plant

The main component of the quick lime is calcium oxide (CaO), which is prepared by calcining natural rocks whose main component is calcium carbonate at high temperatures. This material has a wide range of uses. It is widely used in construction, metallurgy, paper making, glass manufacturing, soda ash production, tanning leather, sugar, and other industrial fields.

Quick Lime Manufacturing Process

STEP1: Pretreatment

Crushing: Limestone is used for jaw crusher, impact crusher and hammer crusher to crush a particle size suitable for calcination.
Washing: Limestone is washed to remove dirt from the limestone surface. It is to ensure quality of product. It is used for a rotary stone washing machine to wash by a counter-current manner. Clean water is introduced from the discharge end, ‌dirty water is discharged from the feed end.‌
Screening: Screening chose a suitable particle size of limestone to ensure the quality of the calcination. Screening usually uses a vibrating screen.

STEP2: Calcination

Pretreatment limestone particles are placed in a lime kiln for heating and calcining. Calcination is a key step to producing quick lime. The calcium carbonate in the limestone is composed by heating. The carbon dioxide is released, and quick lime is obtained.

STEP3: Cooling

The calcinated material is sent to the cooler by conveying equipment and then cool air is blown in for cooling. This makes use of heat exchange between cold air and hot lime, reduces lime temperature, and achieves safe storage and use standards.

STEP4: Storage and packing

Calcinated limestone particles become quick lime. Quick lime is usually packed in a bag or bulk. In the packing process, the quick lime is packed in bags and adds desiccant. Then seal the bag to ensure a product of quality. Quick lime needs put in a dry and ventilated place, and avoid moisture.

Quick Lime Processing Machinery

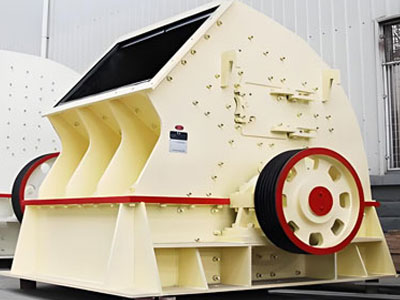

Crusher

Heavy hammer crusher‌: This equipment has a large volume. It has three counterattack zones at the bottom. In the crushing process, it integrates crushing, shaping, ‌and molding in three counterattack zones. It makes crushed limestone clear specifications, ‌and better grain type.
Hammer crusher‌: Compared to a heavy hammer crusher, a hammer crusher is a small piece of equipment. They hammer the limestone with a hammer at high speed. The finished product is good particle size and ‌particle type. It is suitable for small lime plants.

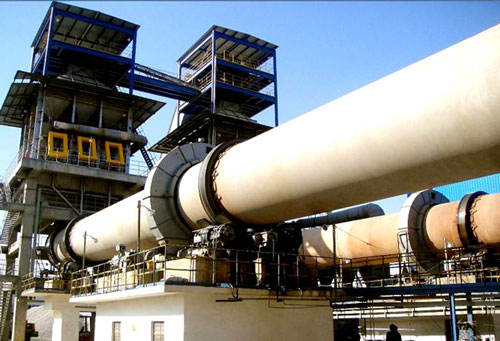

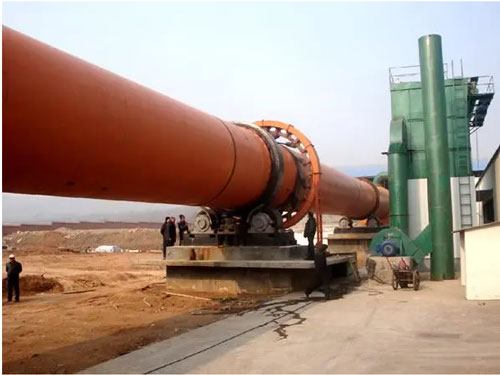

Rotary kiln

A lime shaft kiln is equipment that has a high temperature. The shaft kiln calcinates limestone at high temperatures, which makes limestone decompose into quicklime and carbon dioxide. Rotary kiln has the advantage of high quality and output, but it has high investment, difficult operation, and occupies a large area. Compared with a shaft kiln, The adaptability to the terrain is not as good as that of a shaft kiln.

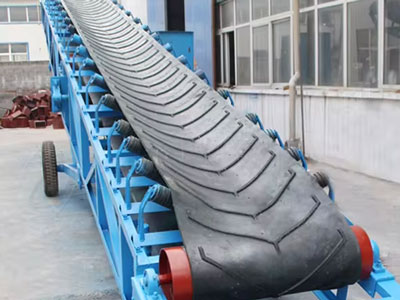

Convey equipment

Quick lime convey equipment is an efficient and reliable equipment. It is widely used for lime industrial. It adopts the principle of screwing and pushes the lime forward continuously. It finishes material convey. The screw convey has the advantages of a simple structure, easy operation, and low maintenance.

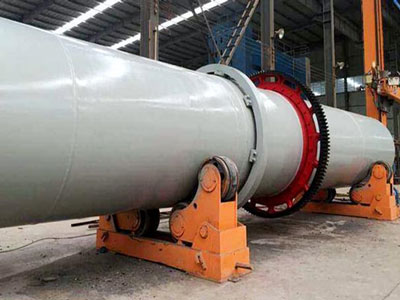

Cooler

Cooler is an important component of production. It is to cool suitable temperature for follow-up treatment and storage. This equipment has an influence on quick lime of quality and production efficiency.

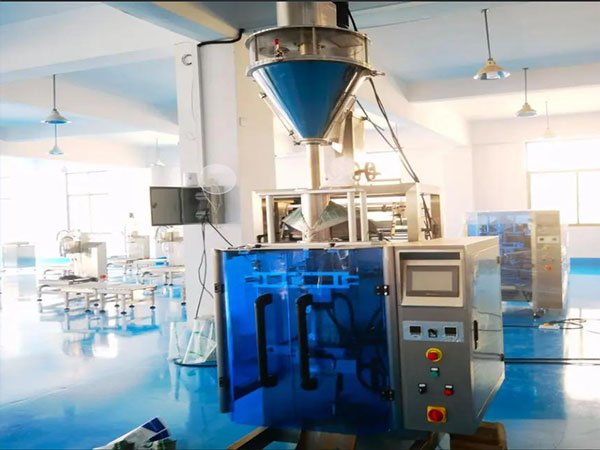

Packing machine

The packing machine is special in packing the quick lime. It has the characteristics of high precision, speed, and stability. It can automatically measure and pack materials.‌

Difference of quick lime and hydrated lime

PROCESS: The quick lime is made of limestone by high temperature. This is a process calcium carbonate is broken down into calcium oxide. While hydrated lime is a process that the quick lime react with water.
INGREDIENT: The quick lime main ingredient is calcium oxide. While hydrated lime is a process calcium oxide react with water.
APPLICATION: The quick lime has strong hygroscopic properties. So it is usually used drying agent. While the hydrated lime is warm and has higher solubility. So it is used as a neutralizer in construction, paper and is also used for soil conditioning and improving soil quality.

The advantage of AGICO’ S equipment

AGICO’S equipment could make use of heat energy reduce production costs, and ensure the quality of product.

AGICO’S equipment could strengthen the sealing performance of the shaft kiln and the reasonable heat transfer between the preheater, cooler, and shaft kiln to make full use of the heat generated by the fuel. It achieves production line environmental protection production.

AGICO’S equipment adopts an intelligent control system for accurate data acquisition and analysis. Production temperature, pressure, material flow and other key parameters could get real-time dynamic monitoring. It ensures stable and efficient.
