1-100 tpd coconut oil mill
- Cold Press Technology – preserves nutrients and natural aroma
- Physical Extraction– no chemical solvents, safe & eco-friendly
- Flexible Capacity– from small-scale to industrial (1–100+ TPD)
- High Oil Yield– optimized pressing & drying system
- Automated Line– reduced labor and stable operation
coconut oil mill manufacturer
As a professional manufacturer of coconut oil production lines, we not only provide single oil extraction machines but also offer comprehensive turnkey solutions for the entire oil processing line. Focusing on raw material supply, operating conditions, energy costs, and skilled labor across various countries and regions, we can design safe, stable, cost-effective, and long-term operable coconut oil production lines during the engineering design stage to meet the needs of customers.

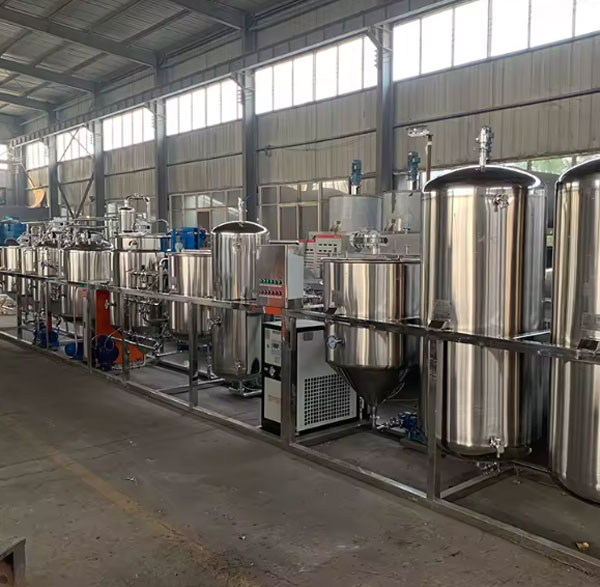

coconut oil mill machinery
step 1: raw material selection
Choosing fresh, mature, and undamaged coconuts as the raw materials to ensure the oil yield.
step 2: dehusking

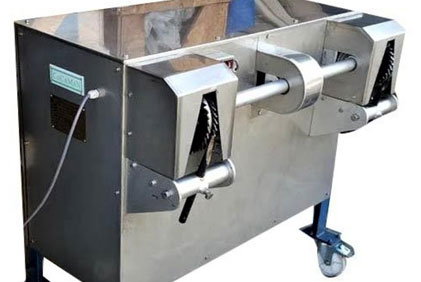

Coconut is removed from the outer shell by a specialized shelling machine, then the coconut is split by the shell breaker, and the coconut flesh is extracted from the shell.
step 3: cleaning
Using a cleaning sieve, clean the coconut to remove impurities, dirt, and residues.
step 4: crushing
Crush the coconut meat into small pieces for easier drying and oil extraction.
step 5: drying

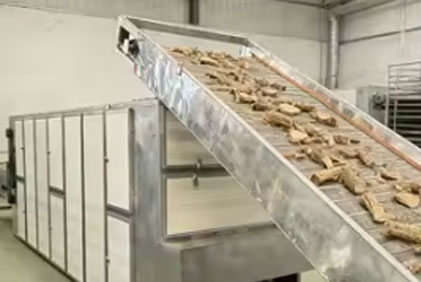

The coconut meat is dried using a tray dryer to produce coconut flakes. Coconut flakes are the key material for extracting oil. Dry stadge is important for the oil extraction process. Because it can reduce the water content of coconut ( 7% – 10%) and ensure higher oil yield and longer shelf life.
step 6: oil extraction
Coconut flaker has a significant difference from common oilseed. So it is more suitable for a screw press. And the gap between the pressing rods needs to be adjusted to be very small.
step 7: refining（optional）
After the pressing process, the oil still has impurities. These impurities need to be removed. This needs degumming, deacidification, bleaching, and deodorization.
step 6: packing
The finished coconut oil is filled into containers such as bottles and then sold.
Coconut oil mill price
| Capacity | Type | Estimated Price (USD) |
|---|---|---|
| 1–5 TPD | Mini | $10,000 – $30,000 |
| 5-10 TPD | Small commercial | $120,000 – $150,000 |
| 10-30 TPD | Medium plant | $250,000 – $320,000 |
| 30-100 TPD | Large plant | $650,000 – $800,000 |
Capacity: The capacity is bigger, the initial investment is higher. But unit cost becomes smaller due to the scale effect.
Automation: Semi-automated equipment is cheaper, while fully automated equipment is 15% to 30% more expensive
Refining: Oil mill plants without refining equipment are cheaper, while those with refining equipment are more expensive. The oil mill with refinery is more expensive than + $50,000 – $300,000.
Installation and transportation: It will increase the cost by 20% to 30%
advantages of AGICO coconut oil mill
Flexible Raw Material Solution
AGICO coconut oil mill is equipped with an automatic drying system, supporting a dual-raw-material solution of fresh coconut and copra. Even without a mature copra supply chain, production can still start.
Maximize Oil Yield
AGICO coconut oil mill optimizes the structure of the oil extraction machine, with an oil yield of up to 70%. And the residual oil rate is extremely low. This will help you invest quickly and return.
Low Investment
The minimum size of AGICO coconut oil mill is as low as $10000, and if you want to expand on the existing basis, we support phased expansion without worrying about a limited budget.
Easy Operation
AGICO coconut oil mill adopts PLC control, and is easy to operate. This reduces the need of techninical workers. In addition, its maintenance cost is lower, which can save time and running costs.
Multi-Product Profit
The raw material of AGICO coconut oil mill is almost 100% utilized. And by-products are applied across various industries, such as feed, energy, chemicals, agriculture, and daily chemicals. This greatly increases the entire profit rate.
Energy-Saving Design
AGICO coconut oil mill is equipped with a heat recovery system, which can recover heat to save on electricity bills or fuel costs. In addition, you can use coconut shells as fuel to reduce costs.
Why invest in a coconut oil mill
The growing global concern for healthy, healthcare, and natural products consumption is the main driving force behind the growth of the coconut oil market. Consumers tend to choose coconut oil. This is because it is regarded as a healthier alternative to traditional cooking oil. In the field of personal care and cosmetics, coconut oil gets more attention due to its characteristics, such as moisturizing, antibacterial, and antioxidant properties. It is used in skincare, hair care, and health products. Food manufacturers have incorporated coconut oil into functional foods, dietary supplements, and vegan products, thereby increasing its use.
application of coconut oil
By-products in coconut Oil Production
| By-product | Source | Application |
|---|---|---|
| Copra Cake | The remaining solid after pressing | ·Animal feed ·Organic fertilizer |
| Coconut Shell | Shelling step | · Charcoal · Activated carbon · Fuel |
| Coconut Husk | Outer fiber shell | · Coir fiber · Coco peat · Soil conditioner |
| Coconut Water | Shelling step | · Beverage · Fermentation · Nutritional drinks |
| Coconut Paring | Removing the outer layer of coconut flesh | · Secondary oil extraction · Animal feed |
| Fatty Acid & Glycerin | Refining step | · Soap & detergent · Cosmetics · Chemical industry |
why choose us
We have rich experience in providing EPC projects in the oil mill industry, providing a one-stop service.
Design
Manufacturing
Installation
Debugging
After-sale service
1. Deal with problems of the raw material
Based on your local conditions, we will tell you to use fresh coconuts or dried coconuts.
If you use fresh coconuts, we will prepare the drying system for you together.
2. Pay attention to the actual oil yield
We will estimate the actual oil yield according to raw material（including moisture content/variety）, and control the residual oil rate after pressing.
We will tell you actual data instead of the ideal data.
3. Determine capacity according to budget
Firstly, we will design plans according to the budget.
Then we will tell you which equipment can be added later and help you make phased investments. Instead of increasing your capacity to get more profit.
4. Reduce complex operation
We have advanced technology, so we will prioritize the use of simple structural equipment.
We will minimize complex operations and provide basic training for the operation.
5. Arrange on-site guidance and debugging
We will provide 24-hour installation guidance and on-site training.
We will make equipment output oil and arrange operation training.
