1-1000 tpd PKO mill

Oil Capacity: 1~1000 tpd
Oil Yield: >45%
Oil Residual in Cake: <6%

AGICO PKO MILL FEATURES

high oil yield
long service life
low production cost

AGICO ONE-STOP SERVICE

Design
Manufacturing
Installation
Debugging
After-sale service

PKO mill for sale

Palm fruits are the most productive oil-producing crops in the world. Palm kernel oil content is 45%-50%. The oil extracted from palm kernel is called palm kernel oil (PKO). PKO is an important edible oil, widely used in cooking, food processing, and the production of soap, laundry detergent, and personal care products.

AGICO GROUP is a leading enterprise in the oil mill industry. We provide complete PKO processing equipment and turnkey projects. The prices are all the factory prices. If you have any requirements, please contact us for more details.

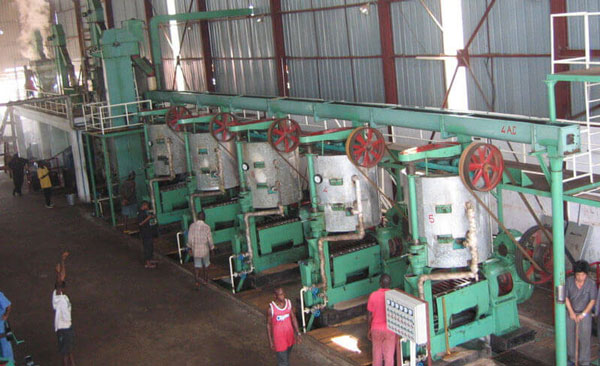

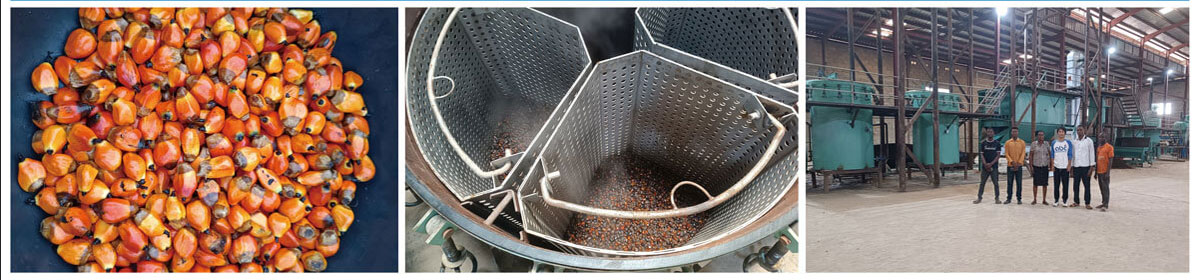

palm kernel oil milling machine

shelling

Separate the palm kernel from the shells. The shells can be used as fuel for the boiler system. Shell removal not only increases PKO oil yield but also improves the quality of PKO and the oil meal.

Crushing

The palm kernels are crushed into small pieces using a toothed rod crusher to prevent severe damage to the equipment during direct processing.

Cooking

The palm kernels are steamed using a steam cooking machine to completely break down the cell structure of the nuts, thereby facilitating the extraction of the oil.

Pressing

Pressing palm kernel has a specialized palm kernel pressing machine, specially designed for palm kernels. It ensures smooth feeding and thorough pressing. It is usually equipped with an intelligent temperature control system, which can adjust the temperature as needed. It not only increases the oil extraction rate but also retains the nutrients.

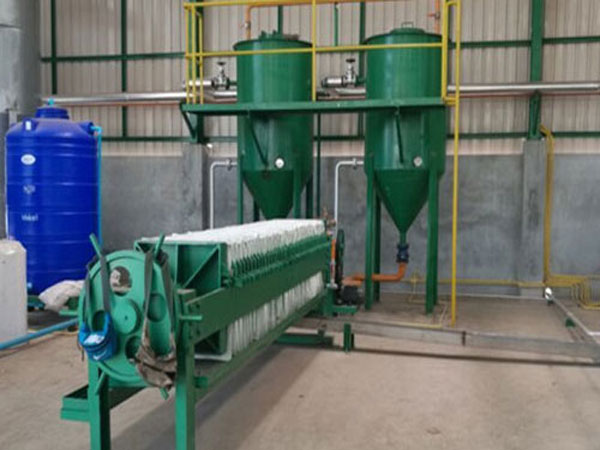

Filtering

Crude palm kernel oil is filtered and clarified to remove impurities.

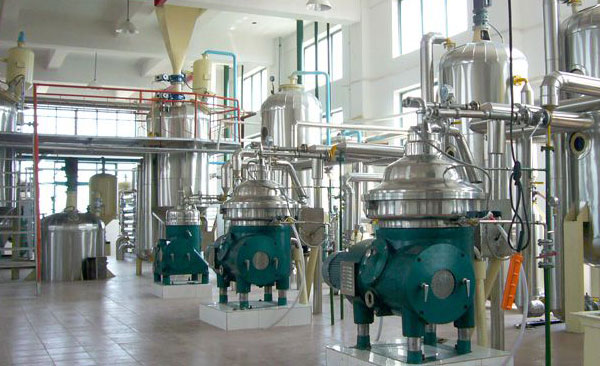

Refining

The basic refining process of palm kernel oil (PKO) involves degumming, deacidification, bleaching, and deodorization.

Advantages of PKO mill

Do you also worry these problems?

Low oil yield

Rapid equipment wear

High production cost

Difficult wastewater treatment

We can solve these problems - AGICO PKO mill

high oil yield

The AGICO PKO mill employs multi-stage spiral pressing and an intelligent temperature-control system. By optimizing the pressure in the oil extraction chamber based on the high oil content (45%-55%) of palm kernels. This increases oil yield by 10%-15% and reduces residual oil content to 6%-8%.

Long service life

The screw and screw bar of AGICO PKO mill ADOPT 2Cr13 stainless steel or alloy steel. It undergoes special heat treatment, so it is extremely hard, does not need frequent replacement, and prolongs the service life by 3 to 5 times.

low production cost

Unlike traditional oil mill machinery, the raw material requires high-temperature steaming and roasting. AGICO PKO efficiently extracts oil at 60–70°C, reducing electricity consumption by 20%–30% per ton of material, with zero steam consumption.

easy wastewater treatment

AGICO PKO mill does not need to add any solvent or water, so it produce waste water reduced by over 90% compared to traditional oil machines. Moreover, the waste residue can also be reused and directly sold to feed factories as high-quality feed raw materials.

PKO mill cost

Capacity	Equipment Estimate Cost	Details
1-100 tpd	$50,000-$800,000	Leased facility; focuses on downstream processes like fractionation and refining. Lower entry barrier.
100-500tpd	$800,000-$3,000,000	Includes a complete refining and fractionation line with storage tanks. Standard, modern configuration.
500-1000tpd	$10,000,000 – $20,000,000	Refers to a palm fruit integrated processing mill (producing both CPO and PKO) located at the plantation source. Includes a press line.

The above mainly refers to investment in equipment. In the total investment for palm kernel oil processing, the cost of raw materials typically accounts for 80-85% of the operating expenses

Why choose us

To become a globally trusted provider of oil equipment

The leader of the oil mill machinery industry

AGICO GROUP mainly produces large, medium, and small-sized oil mill machinery. Our company covers an area of 100,000 square meters, has 12 manufacturing workshops, and has established 22 overseas offices. Our business covers more than 70 countries. Over the past 20 years, AGICO GROUP has become a leading enterprise in the domestic and international oil mill industry.

development history

20+

production line

exporting countries

Technicians & Workers

230

By-products in palm kernel Oil Production

By-product	Source Process	Yield Ratio	Treatment/ Utilization Solution
Palm Kernel Shell	Kernel/Nut separation	5-6% of FFB	Boiler fuel / Biomass pellets / Activated carbon raw material

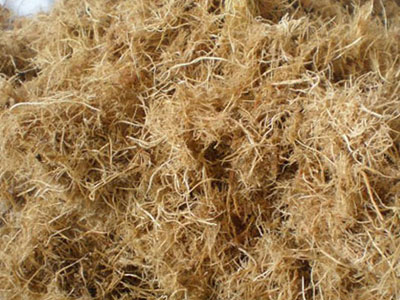

Palm Fiber	Pulp/Kernel separation	13-14% of FFB	Main boiler fuel (for power/steam generation)
Empty Fruit Bunch (EFB)	Fruit threshing	22% of FFB	Field mulch / Biomass fuel / Compost raw material
Palm Kernel Meal (PKM)	Post-pressing solid residue	45-50% of input material	Animal feed ingredient (cattle, aquaculture)

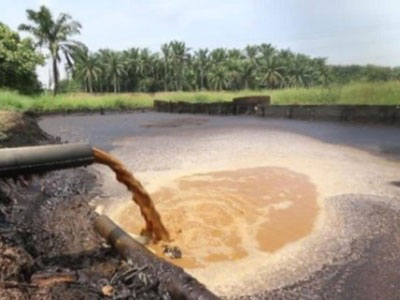

Palm Oil Mill Effluent (POME)	Pressing / Clarification process	2-3 tons per ton of CPO	Biogas generation → power / Treated for land irrigation & fertilization

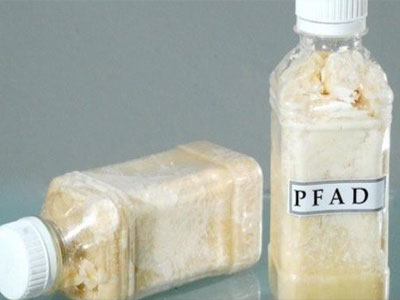

Palm Fatty Acid Distillate (PFAD)	Refining (Deacidification)	3-5% of crude oil volume	Nutraceutical / Pharmaceutical (extraction of squalene, Vitamin E, phytosterols)

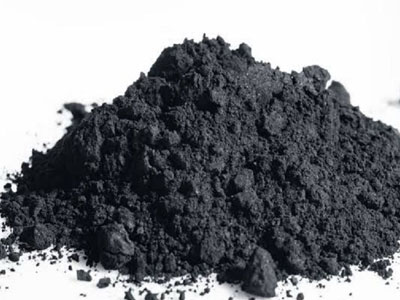

Spent Bleaching Earth (SBE)	Refining (Bleaching)	1-2% of crude oil volume	Residual oil recovery (for biodiesel) / Pyrolysis regeneration / Cement kiln fuel
Boiler Ash	Boiler combustion	3-5% of fuel volume	Organic potassium fertilizer / Floor cleaner ingredient
