1-100 tpd sesame oil mill

sesame oil mill for sale

Light Sesame Oil

Refined sesame oil, light-colored and mild-flavored, is common in the cuisines of the Middle East, South India, Muslim markets, and East Asian countries.

Toasted Sesame Oil

Made from roasted or fried sesame seeds, it has a darker color and a richer aroma and flavor. It is not used in cooking; it is mainly used in seasoning. It is common in East Asia and Southeast Asia.

AGICO provides customized sesame oil processing solutions ranging from small-scale oil mills to complete turnkey production plants. Our engineering team can design the most cost-effective solution based on your production requirements and budget.

Why invest in a sesame oil mill?

The global sesame oil market size was valued at USD 4.82 billion in 2025. The market is projected to grow from USD 4.82 billion in 2026 to USD 4.84 billion by 2034, exhibiting a CAGR of 0.06% during the forecast period.

growth trend

Health awareness rising across regions
Sesame oil boosts heart wellness
Organic segment sees strong demand
Innovation drives flavored oil growth
Labeling regulations challenge global expansion

application

Food & Beverages
Bakery
Snacks & Dressings
Cosmetics & Personal Care
Pharmaceuticals

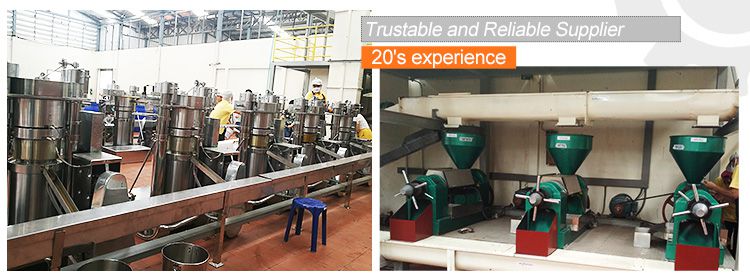

sesame oil press machine

There are two common methods for extracting sesame oil. The mechanical pressing method is characterized by high efficiency, high output, and industrial production. The water extraction method is characterized by high aroma, high quality, and traditional flavor.

Mechanical Pressing

STEP 1: The impurities in sesame are removed using a vibrating screen, a stone remover, and a magnetic separator. This ensures the purity of the oil. The impurity content of the cleaned sesame should be less than 0.1%.
STEP 2: Then, sesame enters the softening pot, adjust water and temperature(usually controlled at 47-50℃, making its texture softer. The sesame is pressed into uniform thin sheets by the rolling machine, effectively damaging the cell walls of the sesame and increasing oil yield.
STEP 3: When frying sesame, we usually adopt a combination of “high heat – low heat”. Final frying temperature is approximately 190-200℃, but the pressing temperature needs to be reduced to 140-170℃. This will prevent the formation of burnt flavor and ensure a clear and bright oil color.
STEP 4: After frying the sesame, we need to quickly remove the sesame from the pan and “fanned the smoke” to quickly disperse the smoke and heat generated. The temperature of sesame is reduced by 170-180℃.
STEP 5: Pressing sesame is usually done in a screw pressing machine. It depends on powerful mechanical pressure. The oil is continuously squeezed out of the sesame.
STEP 6: After pressing, the obtained oil is called crude oil. It contains a small amount of phospholipids, free fatty acids, and pigments. These need to be refined to meet the standards of commercial oil.
STEP 7: Finally, carry out dewaxing treatment as needed, and then filter to remove it. This effectively prevents the formation of flocculent precipitates of oil in low-temperature environments, increasing oil appearance and quality.

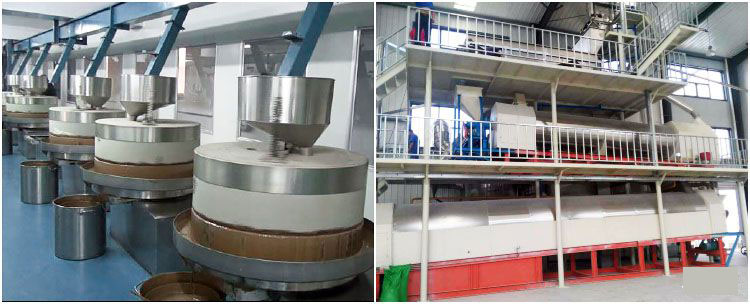

Water Extraction

STEP 1: Soak the sesame in water for 1 to 2 hours. After soaking, the oil water content of sesame will be approximately 25% to 30%.
STEP 2: Stir-fry the sesame seeds over high heat until their surfaces bulge, then switch to low heat.
STEP 3: After frying, quickly pour in about 3% of the water by weight of the sesame. And then continue heating for about one minute. The cooking temperature is generally controlled at around 200℃.
STEP 4: Cool the fried sesame to approximately 65℃ to 75℃. Then remove the smoke flavor and discard the burnt parts and broken shells.
STEP 5: Then the sesame seeds are ground into sesame paste. The entire process is carried out at a temperature of only 60–65°C, which belongs to low-temperature grinding.
STEP 6: Put the sesame paste in the pot, and keep the temperature above 40℃. Add the boiling water equivalent to 80% to 100% of the weight of the sesame paste in four portions.
STEP 7: Separate the mixture of sesame oil and sesame paste to extract the oil.

clean sieve

magnetic separator

crushing machine

flaking machine

cooking machine

pressing machine

Advantages of AGICO sesame oil mill-Address your worry

Our equipment helps you produce high-yield, authentic flavor sesame oil with lower cost, less labor, and more consistent quality.

worry 1：Low oil yield

AGICO sesame oil mill has intelligent temperature control technology. The pressing temperature can be precisely controlled between 140 and 170℃. The oil yield can increase by 3-5%. And our screw propulsion system has been optimized, with a high compression ratio, and the residual oil rate can be reduced to below 6%.

worry 2：Inconsistent oil quality

The sesame oil mill of AGICO allows for the setting of the roasting temperature, the inlet temperature for pressing, and the pressing speed, ensuring consistency in each batch of oil. By adjusting the range of the oil extraction process, different flavor products (light or toasted) can be freely switched. And our machine can extract oil in segments. price products based on grades, and maximize profits.

worry 3：Frequent equipment failures

AGICO sesame oil mill adopts special alloy steel and carburizing heat treatment, which has high hardness and excellent wear resistance. So its service life is 2-3 times longer than that of ordinary screw presses. The press barrel is equipped with a water-cooling circulation system, and continuous operation is also not overheated. Our machine supports 24-hour uninterrupted production.

worry 4：Complex operation

AGICO sesame oil mill is a user-friendly device for beginners. It can be started with one click on the PLC, and the entire process is fully automated. A common worker can operate independently after training for 1-2 days. Various parameters are displayed in real time, and abnormal situations will trigger automatic alarms and prompt handling solutions.

sesame oil mill cost

Plant Capacity	Estimated Equipment Cost
1-5 TPD	USD 10,000 – 50,000
10-20 TPD	USD 50,000 – 150,000
30-50 TPD	USD 150,000 – 500,000
100+ TPD	USD 500,000 – 2,000,000+

Final investment may include factory construction, installation, utilities, transportation, and operation costs. For obtaining an accurate quotation, it is necessary to clearly define the required production capacity, the characteristics of the raw materials, and the desired level of automation.

why choose us

AGICO is a manufacturer of equipment for oil mill plants, working on research and development of sesame oil production equipment. Manufacturing sesame oil equipment is sold to 60+ countries around the world.

Evaluation

We pay great attention to choosing suitable technology and the running scale, because this determines the final profitability of the enterprise.

Project plan

After determining project scale and selecting the technical solution, our engineering team will conduct a specialized design according to local conditions, quality standards, and environmental requirements.

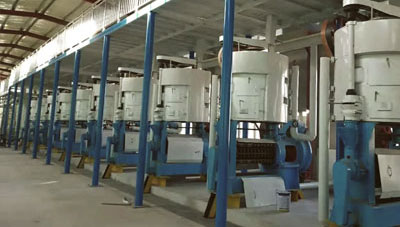

Equipment manufacturing

We own a complete sesame oil processing equipment production system. From raw materials to finished products, all conduct strict quality control.

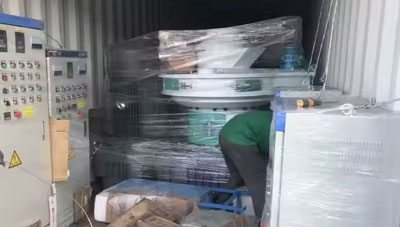

Installation & commissioning

We can offer on-site installation and commissioning services. Our engineering teams have set up equipment around the world, and they will ensure the equipment achieves the best operational condition before delivery.

After-sales service

We are always at your service to provide assistance to ensure your team can successfully maintain the continuous operation of the oil mill.

By-products in seame Oil Production

By-Product	Applications
Sesame Oil Cake	Animal feed, protein supplements, organic fertilizer
Sesame Meal	Livestock feed, aquaculture feed, protein ingredient
Sesame Hulls	Biomass fuel, animal feed, and compost production
Soapstock	Soap manufacturing, industrial fatty acid production
Spent Bleaching Earth	Industrial recycling, energy recovery (after proper treatment)
Wastewater	Treated and recycled for industrial use
