AGICO cottonseed oil mill for sale
Cottonseed oil mill has significant similarities to other vegetable oil mills (such as sunflower oil mill, soybean oil mill, rapeseed oil mill, peanut oil mill, palm oil mill, and corn oil mill). Because the production processes of cottonseed oil and these oils are roughly the same. The difference is that cottonseed oil contains vitamin E, polyunsaturated fatty acids, and monounsaturated fatty acids. This helps cardiovascular health, enhances immunity, and improves skin health.
- high oil yield
- efficient gossypol removal
- energy-saving technology
We are a reliable manufacturer of cottonseed oil mill plants. Quality, technology, and service are three things we always focus on as our commitment. We provide our customers with tailor-made solutions for their specific needs.

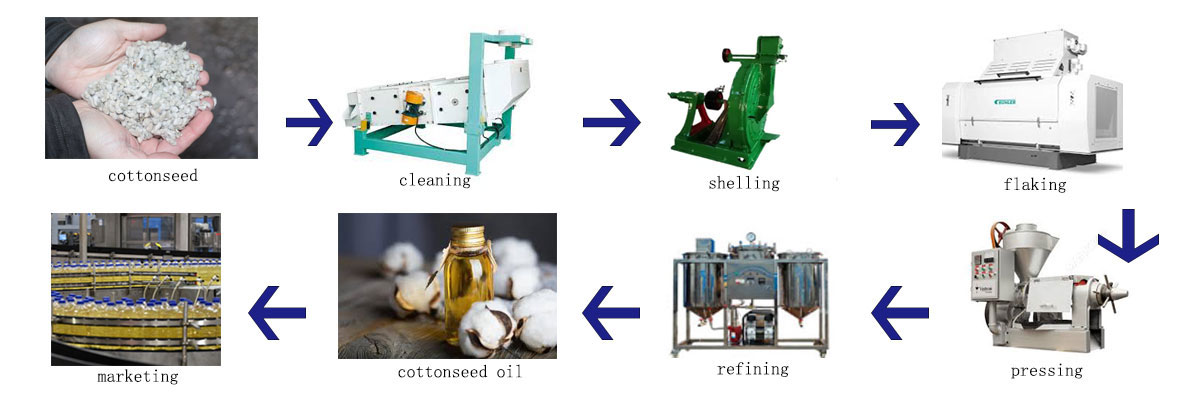

cottonseed oil mill process
| Step | Description | Purpose |
|---|---|---|
| Delinting | Removing short fibers attached to seeds | Prevents clogging in equipment |
| Cleaning | Removing stones, dust, and plant debris | Ensures smooth downstream processing |
| Dehulling | Removing hard outer hulls | Exposes kernels for oil recovery |
| Separation | Dividing kernels and hulls | Kernels go for oil, hulls for feed/fuel |
| Flaking | Flattening kernels into thin pieces | Increases surface area for cooking |
| Cooking | Adjust moisture and temperature by steam treatment | Increases the oil yield |
| Oil extraction | Mechanical Pressing Solvent Extraction | Extract crude oil |
| Refining | Degumming, Neutralization, Bleaching, Deodorization | Meet the food safety standards |
equipment of cottonseed oil mill
clean sieve
magnetic separator
crushing machine
flaking machine
cooking machine

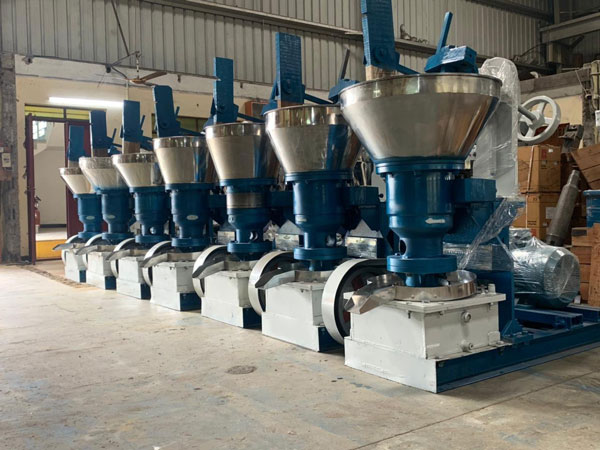

press machine
Problems When Buying Cottonseed Oil Equipment
- Low oil yield
- Poor Gossypol Control
- High energy consumption
Low oil yield
For oil processing enterprises, the profit of the factory is determined by oil yield. If the oil yield is low, the amount of oil extractable from each ton of cottonseed has decreased, and the residual oil rate of cottonseed cake is high, and the residual oil rate in the cottonseed cake will be high, resulting in a decline in the utilization rate of the raw materials. This makes unit production costs increase, and market competitiveness declines. So the profit of the enterprise is reduced.
cause
- The raw materials are not thoroughly cleaned, and the impurities affect the pressing efficiency.
- The hulling rate of cottonseed is low, the separation of the shell is insufficient, and the kernel reduces the efficiency of oil release.
- The temperature and humidity control are not accurate during cooking, leading to cottonseed not achieving the optimal pressing state.
Poor gossypol control
Gossypol is a toxic pigment naturally present in cottonseeds. If not properly controlled, it not only affects the quality of cottonseed oil but also reduces the feed value of cottonseed meal. An increase in gossypol leads to a darker color and poorer quality of cottonseed oil. It does not meet food standards. As a result, enterprises will need to increase the cost of refining in the future.
cause
- The decoumarization process is not perfect.
- The precision of the refining equipment is insufficient, resulting in limited effects of desulfurization, decolorization and deodorization.
- the temperature control is not reasonable during cooking, making bound gossypol release.
High energy consumption
The cottonseed needs to undergo cleaning, shelling, cooking, pressing, and refining during production. Every step needs to consume a large amount of electrical energy, steam, fuel, and cooling water. So the higher energy consumption, the higher profit. And high energy consumption means higher carbon emissions and environmental protection costs.
cause
- Multiple machines operate independently, lacking interlocking control, and run at no load for a long time.
- The insulation effect of the steam pipeline is poor. The loss of heat is strict.
- The heat during the refining process is directly discharged.
advantages of AGICO cottonseed oil mill
other costtonseed oil mill
- Low oil yield
- Poor gossypol Control
- High energy consumption
AGICO costtonseed oil mill
- Maximize Oil Yield
- Low gossypol content
- Lower Energy Consumption
Maximize Oil Yield
AGICO cottonseed oil mill has advanced pre-treatment and extraction technology, which can maximize the recovery of oil content and minimize the residual oil rate. The same raw material can yield more cottonseed oil, leading to higher profits.
Low Gossypol Content
AGICO cottonseed oil mill reasonably controls temperature, water, and time during the pre-treatment stage, reducing the entry of coumarin into the oil from the source. And we also optimize pressing technology, making gossypol from cottonseed cake. These efficiently reduce the content of free coumarin,ensuring that the product meets food safety standards.
Lower Energy Consumption
AGICO cottonseed oil mill has optimized the process design, adopted high-efficiency and energy-saving motors and transmission systems. This significantly reduces the consumption of electricity, steam, and water, thereby reducing long-term running costs.
cottonseed oil mill cost
The price of a cottonseed oil mill is influenced by capacity, level of automation, refining degree, material of construction (carbon steel or stainless steel), etc. Below is only a rough reference range:
| Capacity | Estimated Investment (USD) |
|---|---|
| 1–10 TPD | US$20,000–80,000 |
| 10–30 TPD | US$80,000–250,000 |
| 30–50 TPD | US$250,000–600,000 |
| 50–100 TPD | US$600,000–1.5 million |
| 100–300 TPD | US$1.5–5 million |
| 300–500 TPD | US$5–10+ million |
why choose us
AGICO supplies complete cottonseed oil mill machinery. These machines have long service life, high oil yield, low energy consumption, and other excellent characteristics. AGICO strictly conducts quality control to ensure that the products meet international standards.

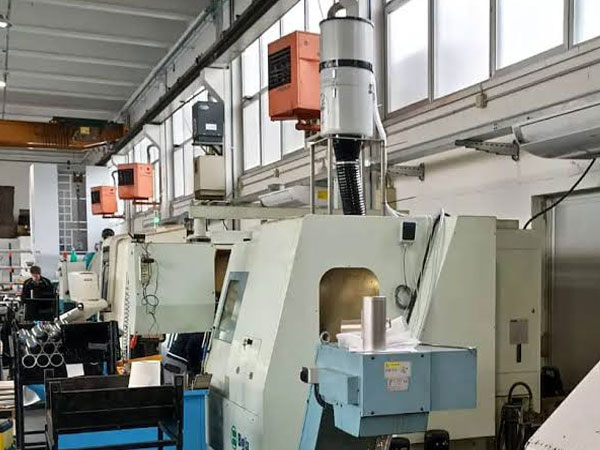

Direct Manufacturer
AGICO optimizes costs and ensures quality control through its own factory, connects directly with global customers, and eliminates intermediaries. This makes price competitiveness increase by 30%.
20 +Years of Experience
AGICO actively supports China’s “Belt and Road” railway construction initiative for 20+ years. We successfully supplied oil mill machinery to countries such as the Philippines, Mongolia, Indonesia, Ethiopia, and Kenya.
24/7 Customer Service
We have a 24/7 professional service team to provide support. We ensure a response within 15 minutes and offer a preliminary solution within 2 hours. Our consultation resolution rate is as high as 99.3%.
After‑Sales Support
AGICO is committed to putting customers first, offering a one-year comprehensive machine warranty, a three-year extended warranty for core components, and lifetime free technical support.
By-products in cottonseed Oil Production
| By-Product | Source | Main Applications |
|---|---|---|
| Cottonseed Meal | After oil extraction | Animal feed, organic fertilizer, protein concentrate (after proper processing to reduce gossypol) |
| Cottonseed Hulls | Dehulling process | Biomass fuel, livestock feed fiber, mushroom cultivation substrate, particleboard |
| Cotton Linters | Delinting process | Cellulose production, paper manufacturing, medical cotton, textiles, explosives, chemical products |
| Soapstock | Alkali refining | Acid oil production, soap manufacturing, biodiesel feedstock |
| Fatty Acid Distillate | Deodorization | Biodiesel, industrial chemicals, animal feed additives |
| Spent Bleaching Earth | Bleaching process | Oil recovery, fuel, cement and brick manufacturing (after proper treatment) |

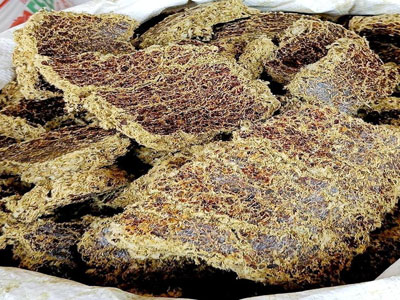

| Cottonseed Cake | Mechanical pressing | Feed ingredient, fertilizer, or further solvent extraction to recover residual oil |
