1-500 tpd Soya Oil Mill
- Capacity: 1-500 tpd
- Oil yield: 16% – 19%
- Main steps: pre-treatment, pressing or solvent extraction, refining
soya oil mill for sale
Soybean, also called soya bean. The oil content in the soya is between 18%–20%, depending on the variety of seeds.
AGICO always focuses on manufacturing oil mill plants and is committed to optimizing application solutions. Our oil mill machinery has been exported to numerous countries and regions all over the world.
Are You Looking to Start a Soya Oil mill ?
Why Choose Our Soybean Oil Mill Plant?
- Tailor-made Design
We will provide a tailor-made design according to your capacity (1-500 tpd), budget, and local conditions.
- Reliable Quality
We adopt high-strength structural steel and corrosion-resistant materials, and the key components are designed to be wear-resistant and resistant to high temperatures.
- Turnkey Solution
From raw soybean cleaning to refined oil, we provide complete plant design, equipment supply, installation, and commissioning.
- High Oil Yield
Our oil mill machinery adopts optimized processing technology. So it can ensure maximum oil extraction with low residual oil in the meal.
- Professional Support
We have professional engineers who can provide comprehensive after-sales service, ensuring your oil mill runs long-term.

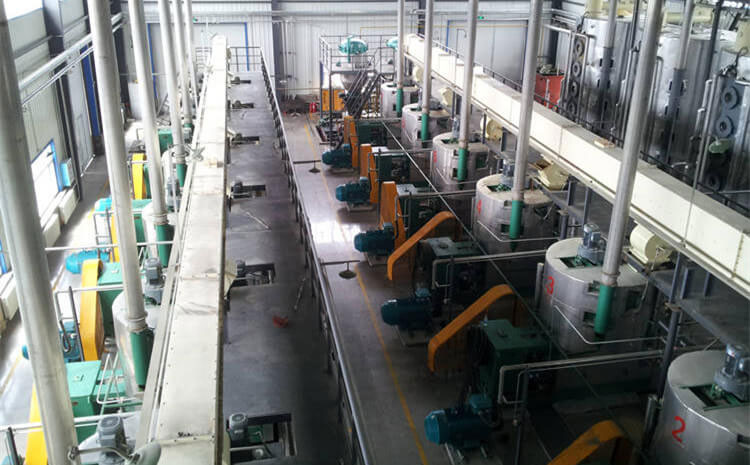

Soybean oil mill machinery
Step 1: pre-treatment
- Cleaning: Cleaning the soybeans to remove impurities. Then, using a magnetic separator to remove metal impurities. Non-metallic impurities are removed through screens and vibrating screens.
- Crushing: Using a crusher to grind larger soybean particles will turn them into high-quality sprouts, thereby enhancing production efficiency.
- Flaking: The soybeans are transformed from a granular form to a flaky one by a flaking machine. Thus, this increases the surface area available for oil extraction.
- Conditioning: Use the cooking machine to heat to 60–80℃, making the protein in the soybean cell walls denature and the structure become looser. This makes it easier for the oil to be released from the cells.
Step 2: Pressing or Solvent Extraction
- Pressing is suitable for small-scale operations or markets that have a demand for “physically extracted oil”. The material is gradually compressed under the action of the screw, and the oil is squeezed out from the gaps, forming cakes that are discharged. Then the solid impurities in the crude oil are filtered out.

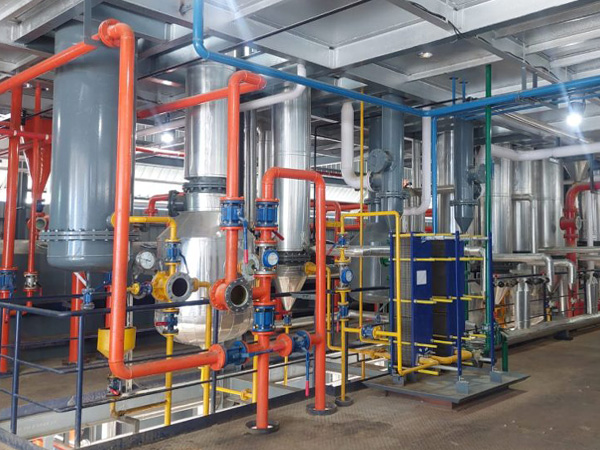

- Solvent Extraction is suitable for industrial production. By spraying or immersing oil-bearing materials with solvents, the oils dissolve to form a “mixed oil”. The solvent is separated from the “mixed oil (oil + solvent)” through multi-stage evaporation and recycled for reuse. Then, steam stripping is carried out to completely remove the residual solvent, resulting in crude oil.

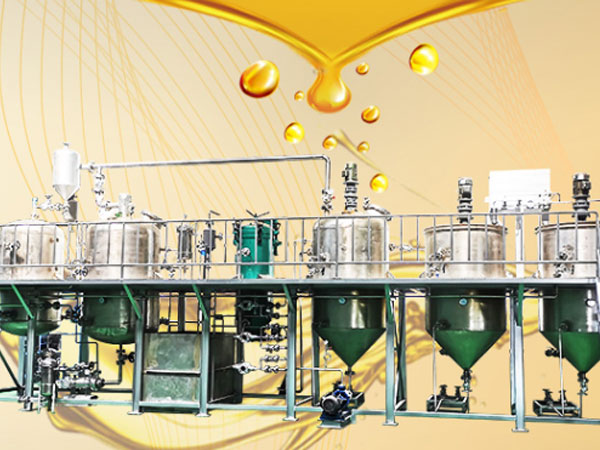

Step 3: Refining
Whether it is pressed oil or solvent-extracted oil, it needs to be refined before it can be consumed. The refining process includes steps such as degumming, deacidification, bleaching, and deodorization.
STEP1 Pre-treatment
- Clean sieve
- Magnetic separator
- Crusher
- Flaking machine
- Cooker
STEP2 Pressing or Solvent Extraction
- Pressing machine
- Extractor
- Desolventizer-Toaster-Dryer-Cooler
- Evaporator
- Condenser
STEP3 Refining
- Degumming Tank
- Neutralization Tank
- Bleaching Tank
- Deodorizer Tower
Core Soybean Oil Mill Machine
clean sieve
magnetic separator
crushing machine
flaking machine
cooking machine
press machine
soybean oil mill price
| Capacity | Cost | Process | Automation | Land | Application |
|---|---|---|---|---|---|
| 1-10 tpd | $30,000 – $100,000 | Mechanical Pressing | Semi-automatic | 500–1,000 m² | Small businesses |
| 10-50 tpd | $80,000 – $500,000+ | Pressing or Solvent Extraction | Semi to fully automatic | 1,000–3,000 m² | Growing enterprises |
| 50-100 tpd | $300,000 – $1,000,000+ | Solvent Extraction (optional refining) | Fully automatic | 3,000–8,000 m² | Medium-scale industrial investors |
| 100-500tpd | $2,000,000 – $10,000,000+ | Solvent Extraction + Full Refining | Fully automatic | 10,000+ m² | Large-scale industrial production |
The price is for reference only.
Why collaborate with us?
Full-chain production control: We have our own factory, and the entire production is self-produced and self-controlled to ensure stable product quality.
Professional technical team support: Provide one-stop solutions including process design, equipment manufacturing, installation and commissioning, and technical training.
Global rapid delivery capability: Year-round inventory supply, supporting trade methods such as FOB, CIF, and DDP.
Green environmental solution support: our environmentally friendly oil plant solutions can convert waste into valuable resources. At the same time, it also ensures low emissions, compliance with regulations, and achieving sustainable profitability.
What Makes AGICO Different from Other Suppliers?
| Other Suppliers | AGICO GROUP |
|---|---|
| Only sell single parts | Not Just Equipment – Complete Engineering Solution |
| Little oil machine manufacturing experience | 20+ years in oil machine manufacturing |
| Passive support | Engineering support through the lifecycle |
| Lack of process optimization | Energy-saving design |
| Limited customization | Flexible capacity design |
| Weak logistics system | Faster delivery & installation |
By-products in soybean Oil Production
| By-products | Source | Processing technology | Finished product |
|---|---|---|---|
| Soybean Meal | Pressed cake or defatted soybeans after solvent extraction | Standardized drying + cooling system (DTDC) | Fermented soybean meal (enhanced value) Protein extraction (for food/feed grade) |
| Lecithin | degumming process | Centrifugal separation → Concentration → Drying | Food-grade phospholipids Feed-grade phospholipids |
| Soapstock | deacidification process | Acidification decomposition | Acid Oil Industrial Fatty Acid |
