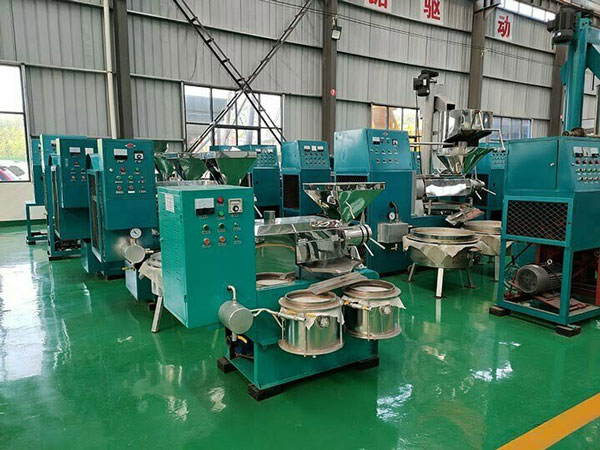

corn oil making machine
we provide corn oil production
Corn oil is produced from corn kernels, including the skin, endosperm, germ, etc. About 85% of corn oil is unsaturated fatty acids. It could help to reduce cholesterol levels. Corn oil is also a source of Vitamin E. This has anti-oxidation. It is conducive to protect the cell from free radical injury. Above all, it is easier to gain and cost-effective.
We provide tailored service solutions for our customers, including site planning, engineering design, technology selection, equipment manufacturing, installation and commissioning, oil plant expansion and upgrading, etc
what we can make seeds and nuts
the characters of AGICO machine
- Our machine can cold press and hot press, and has an automatic temperature and cleaning system.
- Our machine has high oil yield and our oil cake has high quality.
- The vacuum filter helps clean the crude oil, making the final oil pure.
- Our machine can continuously work and has low noise.
- Our machine adopt automatic control cabinet, making the oil production process more safe, simple, efficient and labor-saving.
- Our machine has a small footprint and is easy to operate.
- Our machine could process peanut, canola, palm, cottonseed, sesame, sunflower, soybean.
how to extract corn oil?
- Step 1: Cleaning: corn germ first removes the germ by a clean sieve and a magnetic separator, so as not to damage the production equipment.
- Step 2: Softening: softening is to adjust the temperature and water content of corn germ, it could increase plasticity and prevent excessive powder production.
- Step 3: Peeling: the thickness of the corn germ is 0.2-0.3mm. This process could have a difference in oil yield and the production of equipment.
- Step 4: Cooking: the effect of cooking mainly depends on temperature, water content, and time. In the cooking process, oil is heated and the water is adjusted to the ideal state.
- Step 5: Pressing: the temperature of oil cake should be controlled at 100℃. The corn germ has higher oil content, so it is pressed twice for oil. After the first oil extraction, the corn germ is crushed, steamed, and peeled into a cake, then pressed. In the process of corn oil pressing, please pay attention to the cleaning of the oil circuit. The oil yield of corn germ is about 16%-20%.
- Step 6: Refining: corn oil has free fatty acids, phospholipid binding proteins, mucus, and other non-glycerin vinegar impurities. During alkali refining, oil and lye will be emulsified, which will affect the refining of corn oil. So, before refining, firstly degumming by hydration. Hydration is the heating of corn oil to 75-80 ℃, adding 5%-10% water, stirring at the same time, adding an appropriate amount of salt. The refined oil meets the national standard and can be sold in the market.
Notes: “Screw oil press” is usually used oil press processes in the production of small and medium corn oil. (The oil yield is about 70%). “Pre-pressing and solvent extraction” is more suitable for an industrial corn oil mill. (The oil yield of corn germs can reach 98%).
the parameter of corn oil press
| Corn Germ Oil Press | Capacity | Power | Outline Dimension | Weight |
|---|---|---|---|---|
| YZS-85 | 60-80kg/h; | 5.5Kw | 1200×400×900mm3 | 200kg |
| YZS-95 | 150-200kg/h; | 7.5-11kw | 1600*700*1350mm3 | 530kg |
| YZS-105 | 210-300kg/h; | 15Kw | 1825*700*1350mm3 | 550kg |
| YZS-128 | 300-375kg/h; | 15Kw | 2000*600*1165 mm3 | 775kg |
| YZS-130 | 450-500kg/h; | 18.5Kw | 2010*800*1380 mm3 | 850kg |
| YZS-150 | 750-850kg/h; | 30Kw | 2180*790*1790 mm3 | 1380kg |
the cost of corn oil mill plant
Factors affecting the price:
- Automatic degree: fully automatic machines are more expensive than semi-automatic or manual machines.
- Material quality: machines made of high-quality materials, such as stainless steel, will cost more, but may offer better durability and performance.
- Customization: according to the special requirement of the machine may be more expensive.
Small-scale oil plant
- Capacity: 10-50 tpd
- Price Range: $1,000 to $5,000
These machines are suitable for small businesses or home use. They are semi-automatic and require more manual labor.
Medium-scale oil plant
- Capacity: 50-200 tpd
- Price Range: $5,000 to $20,000
These machines are more automated and efficient, making them suitable for medium-sized businesses.
Large-Scale oil plant
- Capacity: 200-600 tpd
- Price Range: $20,000 to $100,000
These are fully automated machines designed for industrial use. They come with advanced features like PLC control systems.
the profit of corn oil mill
| Machine Capacity | 100 kg of corn germ per hour |
|---|---|
| Oil Yield | 30% (30 kg of oil per 100 kg of corn germ) |
| Operating Hours | 8 hours/day |
| Raw Material Cost | $0.50/kg of corn germ |
| Selling Price of Corn Oil | $2.00/liter |
| Operational Costs | $0.30/kg of oil (energy, labor, maintenance, etc.) |
Daily Production
- Corn processed: 100 kg/hour × 8 hours = 800 kg/day
- Oil produced: 800 kg × 30% = 240 kg/day
- Revenue: 240 liters × 2.00/liter=480/day
Daily Costs
- Raw material cost: 800 kg × 0.50/kg=400/day
- Operational costs: 240 liters × 0.30/liter=72/day
- Total daily cost: 400+72 = $472/day
Daily Profit
- Profit: Revenue - Costs = 480−472 = $8/day
why choose us
Turnkey solution
We offer complete turnkey solutions, from design to installation and training, to satisfy different customer needs, and supplier customized solutions.
Wide range of applications
Our plant is versatile, and suitable for various oil production needs, from small-scale to large operations.
Competitive price
Our extensive customer portfolio allows us to minimize production costs. This and our experience in the market allow us to offer our customers the best business conditions.
