mini oil mill
- Capacity: 1-30 tpd
- Investment cost: $7,000 -$50,000
- Main equipment: Cleaning Sieve, Cooker, Conveyor, Oil Press, Oil Filter
AGICO is one of the leading mini oil mill plant manufacturers. It is recognized for high-quality and reasonable oil extraction plants, oil refining plants, and oil filling plants. AGICO Group has always been known for its high quality and low price, we offer you a range of small oil plant solutions. If you have any questions, please feel free to contact us.
The cost of mini oil mill
If you want to build a mini oil plant, the most important thing you want to know is how much can build a mini oil mill plant. 5tpd oil mill plant as an example to tell you the cost of setting up a oil plant.
| Item | Estimated Cost |
|---|---|
| Machinery and Equipment | $5000-$15000 |
| Installation and Setup | $2000-$5000 |
| Land and Building | $2,000 – $5,000 |
| Utilities | $10,000 – $20,000 (varies by location) |
| Labor | $1,000 – $3,000 |
| Total Estimated Cost | $20,000 – $48,000 |
Below we will tell you the volume and approximate estimated investment we can make
| We can make capacity | 1TPD, 3TPD, 5TP, 10TPD, 15TPD, 20TPD, 30TPD and more |
|---|---|
| Investment cost | $7,000 -$50,000 (The cost is decided by the capacity, equipment and specific requirements) |
| Main equipment | Cleaning Sieve, Cooker, Conveyor, Oil Press, Oil Filter and More |
Applicable raw materials of mini oil mill plant
Mini Oil Mill Plant works for various types of seeds like groundnut, sunflower, mustard, sesame, cottonseeds, coconut, soybean, rapeseeds, corn seeds, etc. to extract oil from them. Due to the different oil content of different raw materials, the equipment required is not the same. High-oil-content raw materials usually need pre-treatment, pressing, and extraction methods. However, low-oil-content raw materials are directly used in the refining method after the pre-treatment
Advantages of mini oil mill
- Cost-Effective: Compared with large oil mill plant, mini oil mill occupies a smaller area. So smaller equipment makes more flexible choices for location. And the cost is associated with the output of oil mill plant. In addition, the mini mill plant needs less labor cost. So lower initial investment compared to large-scale plants.
- Wide Application: Mini oil mill is suitable for processing various oil seeds like groundnut, sesame, sunflower, mustard, and soybean.
- Easy to operation: Simple machinery that is easy to operate and maintain.
- High oil yield: Crushing is done using the most advanced technology to ensure a high oil yield.
Process of mini oil mill
Pretreatment: The first in this step is cleaning. You will remove various impurities such as sand, leaves, stones, liquids and metals from the raw material using different machines.
Expelling: You could then expel the oil from the kernel by using a press. In the oil press, the raw material is heated and the grease will be squeezed out with oil press.
Extraction: The extraction device extracts oil from the pre-pressed of the material. This can either be a cold press where you only use pressure or a hot press where you include heat and chemicals.
Refining: The extracted oil needs to be refined. Refining involves steps such as degumming, and deacidification to produce a pure oil.
Filling: After the oil is tested and qualified, it is packaged into bottles using a filling machine and stored in a warehouse that meets the requirements for sale
Equipment of mini oil mill
Due to the different oilseed varieties that need to be treated, the oil mill equipment that needs to be selected will also be different. Generally, a complete small oil mill plant is made up of cleaning equipment, cooker, oil press machine, oil filter press, edible oil refinery machine and more.
Clean sieve
It is used to clean impurities from oil, if your material cleanliness meets standards, do not use this equipment
Cooker
Depends on how you press it. During the hot pressing process, the oilseeds are cooked in a cooker. If the cold pressing mode is selected, you do not need to install the device.
Oil press machine
Mini oil press is mini-type equipment which is widely used in crushing vegetable oil seeds. It is usually be applied for smaller capacity oil milling plant.
Oil filter machine
An oil filter press is mainly used for filtering the crude oil pressed out by the oil press.

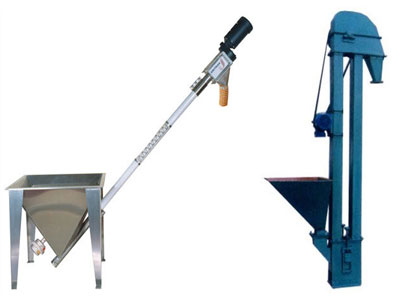

Bucket elevator
Bucket elevators are a necessary element of mini oil mill plants and they are utilized in the material handling procedures particularly when feeding at elevation during the oil-producing procedure.
Parameter of mini oil mill plant
Screw Mini Oil Mill
| Model | Capacity(kg/h) | Power(kw) | Net weight(kg) | Outside dimension(mm) |
|---|---|---|---|---|
| YZS-68 | 50 | 5.5 | 140 | 920*490*780 |
| YZS-80 | 100 | 5.5 | 330 | 1320*540*1020 |
| YZS-95 | 150-200 | 7.5-11 | 620 | 1620*630*1260 |
| YZS-100 | 200 | 7.5 | 80 | 1640*640*1200 |
| YZS-120 | 250 | 11 | 650 | 1820*630*1300 |
| YZS-130 | 200-300 | 11 | 520 | 1870*640*1200 |
| YZS-160 | 400-500 | 18.5 | 820 | 1930*680*1480 |
Mini Automatic Oil Mill
| Model | Capacity(T/24H) | Power(KW) | Weight(kg) | Dimensions(mm) |
|---|---|---|---|---|
| YZS-30 | 15kg/h | 1.5 | 156 | 900*900*1100 |
| YZS-70 | 30kg/h | 4 | 256 | 1000*1000*1250 |
| YZS-80A | 2-3 | 5.5+0.75 | 780 | 1860*670*1680 1060*590*600 |
| YZS-95A | 5 | 7.5+1.5 | 900 | 2250*890*1820 1230*640*570 |
| YZS-100A | 5 | 7.5+1.5 | 900 | 2270*750*1820 1220*590*600 |
| YZS-120A | 6 | 15+1.1 | 1000 | 2280*890*1775 1350*700*600 |
| YZS-130A | 10 | 18.5+1.5 | 1000 | 2350*810*2000 1350*700*570 |
why choose AGICO Group
- Reliable factory strength: we have senior engineers and former professors on our technical consultant team to advise the entire process of our projects.
- Complete warranty service: All products sold by AGICO Group come with a one-year quality assurance period, calculated from the date of qualified installation and commissioning. During the warranty period, if the equipment fails or is damaged due to quality problems of the product itself, AGICO Group will provide users with free repair or replacement services.
- Rich project experience: We have been committed to developing small oil plants for 20 years, exporting to more than 50 countries and regions. We has gained a good reputation in the production plant. You can choose us with confidence.
- Kinds of certification: AGICO Group has won CE, ISO9000, and other certifications and has been enrolled as a member of both the China Standards Institute on the China Association of Rural Energy Industry
Successful cases of mini oil plant
15 TPD Oil Pressing Plant
- Country: Uzbekistan
- Raw Material: Sunflower Seeds
- End Product: Sunflower Cooking Oil
- Main Sunflower Oil Processing Machine: Vibration Cleaning Sieve, Seeds Cooker, YZS-95 Screw Oil Press, Plate and Frame Oil Filter Press, 5TPD Small Oil Refining Machine, etc
Semi-continuous Oil Refining Plant
- Country: Nigeria
- Raw Material: Crude Palm Kernel Oil (CPO)
- End Product: Refined Palm Kernel Oil, RBD Palm Kernel Olein, Palm Kernel Stearin
- Main Palm Kernel Oil Fractionation Machine: Crystallizing Tank, Water Cooled Screw Chiller, Membrane Filter Press, etc.
10TPD Soybean Oil Extraction
- Country: Nigeria
- Raw Material: Soybeans
- Final Product: Refined Edible Soybean Oil, Animal Feed Pellet Made by Soybean Oil Cake
- Main Equipment and Machinery: Vibration Sieve, Cooker, Oil Presser, Plate and Frame Oil Filter, Conveyor, etc
