biomass pellet plant
- Capacity: 0.3-32 t/h
- Pellet Specification: 6-10 mm
Biomass pellet plant is now a popular choice among pellet plants, if you want a biomass pellet plant suitable for producing biomass fuel and is used in industrial boilers and large power plants, then AGICO’s biomass pellet plant is your perfect choice.
Biomass refers to plant materials and animal waste used especially as a fuel source. Of course, not all plants are suitable for biomass pellet manufacturing. The following can be used as biomass raw materials:
bamboo pellet production line
The bamboo pellet has high calorific value, low ash content, and a long burning time, but the bamboo pellet cost is higher. It includes bamboo crafts waste, chopsticks, toothpicks waste.
wood pellet production line
Wood is the most widely used type of biomass pellet production line. Raw materials including tree trunks, sawdust, leaves, branches, wood chips, and wood blocks.
straw pellet production line
Straw pellets have the advantages of being renewable, emission-reduction, low pollution, and economical. Raw materials are corn straw, cotton straw, rice straw, wheat straw, flax straw, soybean straw, sorghum straw.
other pellet production line
In addition to wood, straw, and bamboo, there are many other materials suitable for making pellets. For example, cassava, bagasse, olive pomace, waste paper, RDF, and plastic.

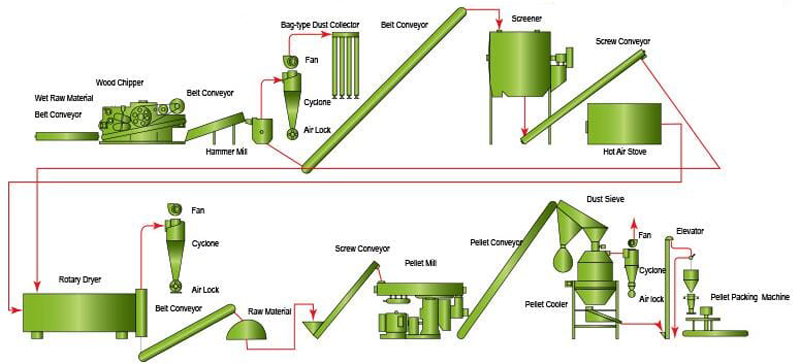

the process of biomass pellet plant
Raw material preparation: Raw materials of the biomass pellet plant mainly include wood chips, straw, rice husks, bark, and other agricultural and forestry processing waste. These materials need removal impieties to ensure the subsequent process.
Drying: Wood and other materials enter the dryer interior by the feed end. Through the coordination of a conveyor belt and screw feeder, the material is evenly sent into the drying room. The specified humidity is from 12% to 15%.
Crushing: Raw materials to be pretreated enter the crusher. The material is further refined into smaller particles. It improves particle uniformity and operability. Generally, the raw materials with the diameter around 30mm can be crushed into the small pieces with the diameter from 2mm to 5mm.
Pelleting: The raw material is sent to the pellet machine. The raw material is solidified into high-density pellets by roller and ring die. The pellet plants manufactured cover a wide range of target production: from 0.3 t/h to 32 t/h. For smaller target productions there are projects from 200 kg/hour to 300 kg/hour.
Screening and cooling: After making the pellet, need to screen the pellet then remove nonconforming products and cool the pellet to prevent pellet particles from deformation. Usually, if the pellet cooler is set to the ideal status, the outlet pellets can reach the temperature of just 2-5℃ higher than room temperature.
Packing and storing: After cooling, the pellet particles need to be packed so that stored and delivered. The selection of packaging materials should be based on the characteristics of the particles to ensure their stability during storage and transportation.
the equipment of biomass pellet plant
pellet machine
The biomass pellet machine is suitable for lots of materials, including logs, wood chips, and wheat straw, straw, etc. These materials through treatment and process, could become high-density pellet fuel. Its capacity is from 0.3 -32 t/h .
pellet silo
The pellet silo is an important part of the pellet production line. It is usually used for storing and delivering raw materials. The height of the silo should be limited to 15 meters or less to avoid damaging the pellets.
packing machine
The pellet packing machine is an automatic equipment, that can automatically complete all working particles such as measuring, bag-making, filling, sealing, printing batch numbers, cutting, and counting.
hammer mill
To better meet customers’ needs, the small hammer mill provided by AGICO has two types: motor-driven hammer mill and diesel-driven hammer mill. Around 30mm of material can be crushed into small pieces with the diameters from 2mm to 5mm

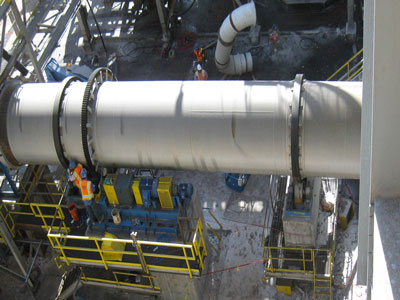

pellet dryer
The pellet dryer is a machine that reduce moisture. Its main function is to dry the wet material to remove the moisture so that it reaches the desired degree of drying. The best moisture content for wood or sawdust pellet production is 12% to 18%.
cooling machine
The pellet cooling equipment is used for cooling particles and its function is to make the temperature of the particles drop evenly to avoid cracking the surface. Usually, the outlet pellets can reach a temperature of just 2-5℃ higher than room temperature.
Parameter of biomass pellet machine

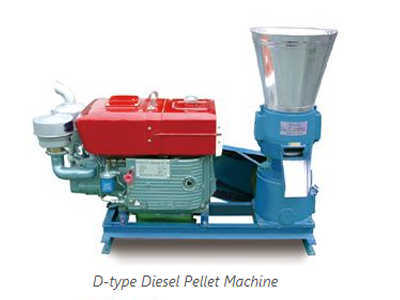

Die Rotating (D-type) Diesel Pellet Making Machine
| Type | Power(Hp) | Output(kg/h) | N.W./G.W.(kg) | Packing size(mm) |
|---|---|---|---|---|
| ZLSP150A | 8 | 50-100 | 180/220 | 1000*500*750 |
| ZLSP200A | 15 | 80-120 | 210/240 | 1460*750*900 |
| ZLSP230A | 22 | 120-200 | 280/310 | 1560*850*1000 |
| ZLSP260A | 33 | 160-250 | 330/360 | 1200*500*1070 |
| ZLSP300A | 41 | 250-400 | 410/450 | 1220*600*1000 |
Roller Rotating (R-type) Diesel Pellet Machine
| Type | Power (Hp) | Output（kg/h） | N,W./G.W.(kg) | Package size（mm） |
|---|---|---|---|---|
| ZLSP200A | 15 | 80-120 | 320/350 | 1460x950x1100 |
| ZLSP300A | 41 | 250-350 | 850/890 | 1100x700x2480 |
| ZLSP400A | 55 | 350-450 | 1010/1050 | 1300x800x2600 |
| ZLSP420B | 37 | 400-600 | 1100 | 1630x620x1400 |
| ZLSP420A | 42 | 400-600 | 1200 | 2590x660x1400 |
| ZLSP420P | 37-48 | 400-600 | 700 | 1500x850x1400 |
Ring Die pellet mill
| Type | Capacity(t/h) | Packing size(mm) | N.M. |
|---|---|---|---|
| BPM420 | 1.2-1.5/1.5-2.0 | 2500*1100*1900(2300) | 3T |
| BPM508 | 1.5-1.8/2.0-2.5 | 2800*1100*1900(2300) | 3.7T |
how to choose biomass pellet machine
- Production requirement: Select the appropriate particle model number according to the production scale and output requirements. Large-scale industrial production needs to choose a large and high output of machines. Instead of choosing a smaller pellet machine.
- Raw material: characteristic: Different materials need to adopt different pellet machines. For example, wood chips, straws, rice husks, and other raw materials need to choose a strong adaptability and good processing capacity of the pellet machine.
- Particle specific: Select the right particle type according to the size, shape, and density of the desired particle. Different types of equipment have different performance.
the advantage of biomass pellet plant
Strong degree of automation
The biomass pellet machine has a strong degree of automation, equipped with electronic control design, mold temperature detection, bearing room temperature detection, oil temperature detection, and other functions, to achieve fully automated operation, saving labor resources.
Wide application
The biomass pellet machine is suitable for lots of materials, including logs, wood chips, shavings, corn and wheat straw, straw, building templates, woodworking scraps, fruit shells, fruit residue, palm and sludge wood chips, etc. These materials through treatment and process, could become high-density pellet fuel.
Roller locking mother-structure design and circulating gear oil lubrication
The biomass pellet machine design takes into consideration maintenance costs, and the use of high-quality bearings and electronic components, and reduces the failure rate. The press roller adopts the new lock female enclosed design, which effectively protects the bearing and prolongs the service life of the equipment.
Application of biomass pellet plant

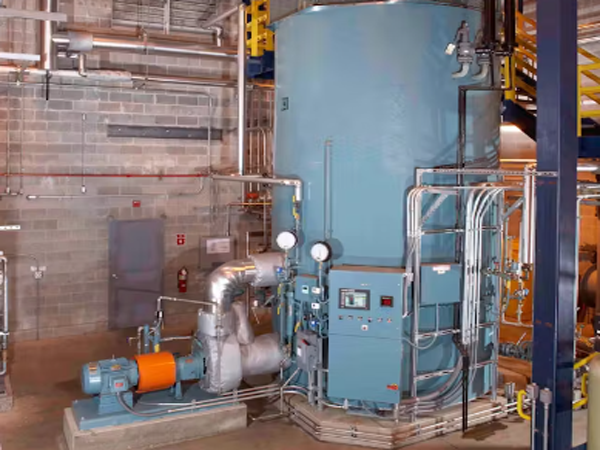

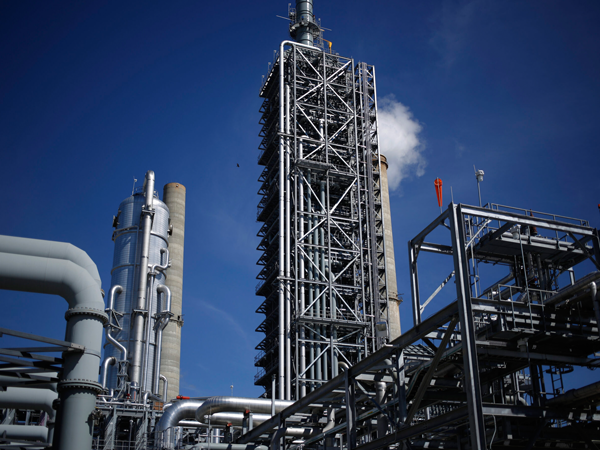

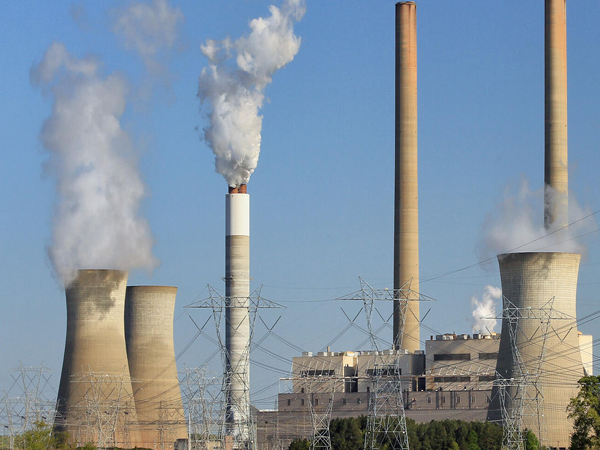

The biomass pellet plant is extensively used. Biomass pellets plants are not only used in home heating and cooking, industrial boiler and power plant. AGICO has experience in 20 years, could provide a full range of solutions for biomass pellet plants. If you want to build a biomass pellet plant, our company is your best choice.
AGICO Group - Leading Manufacturer of biomass pellet plant
We will provide you with a complete set of solutions that meet your needs. If you are interested in biomass pellet plants and related equipment, AGICO Group may be a reliable partner to consider for your needs.
production ability
AGICO Group was established in 1997 and is committed to providing turnkey solutions for pellet plants. We have been enrolled as a member of both the China Standards Institute on Biomass Flat-die Technology and the China Association of Rural Energy Industry.
Our company has an area of 66,000 square meters and a plant area of 30,000 square meters. It has an existing staff of 230 people, with senior professional and technical personnel of 42 people. So, we could provide you with the most comprehensive service.
We could manufacture all pellet machines and we could control our quality. Let you buy goods of good quality and direct delivery to the address, saving the delivery time and delivery time.
company certificates
As a leading pellet plant manufacturer and supplier, AGICO Group has won CE, ISO9000, and other certifications. So You can certainly get high-quality pellet machinery from us!
24 hours service
Whenever you contact us, we’ll provide one -stop service. Also, we accept phone call and e-mail at any time, our team will be available 24 hours a day to answer any questions you may have.
We promise one year warranty and life-long maintenance.

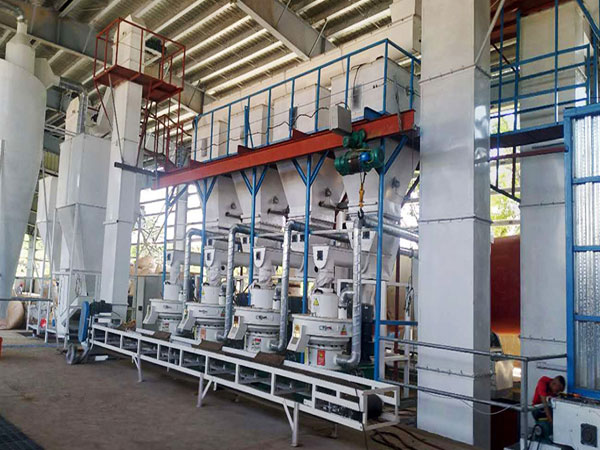

export cases of biomass pellet plant
With decades of experience in the industry, we have gained an ability that has allowed us to match our customers’ needs with the most optimal approach.
wood pellet plant in Mexico
Capacity: 2-3 t/h
Material: wood
Main equipment used: a wood chipper, a hammer mill, 3 pellet machines, a counter-flow cooler, a pellet packing machine and several screw conveyor.
sawdust pellet plant in Indonesia
Capacity: 10 t/h
Material: sawdust
Main equipment used: 1 set of BX215 drum chippers, 2 sets of FSPZ 60*45 hammer mill, 2 sets of ring die pellet machines, a counterflow cooler, and a pellet packing machine.
bamboo pellet plant in Bulgaria
Capacity: 1 t/h
Material: bamboo
Main equipment used: pellet mill, pellet cooler, back-fed cyclone, vibrating sifter
sawdust Pellet plant in Morocco
Capacity: 3.6-4.5 t/h
Material: sawdust
Main equipment used: wood chipper, wet material bin, crusher, dryer, sieving machine, dry material bin, belt conveyor, elevator, 3 sets of BPM508 large wood pellet mill, pellet cooler, and packing machine.
