Feed Pellet Plant
- Capacity: 60-1000 kg/h
- Pellet size:2-10 mm
- Estimated installation period: 20-40 Days

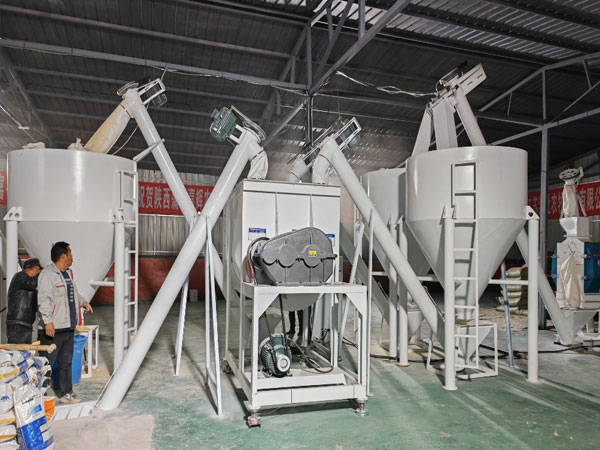

AGICO feed pellet plant is mainly composed of a hammer mill, feed mixing machine, storage silo, feed pellet mill, feed pellet cooler, feed pellets packaging machine, etc. All machines in this feed pellet plant are alternatives for your specific needs and requirements.
AGICO Group offers turnkey project of pellet plant solutions for processing feed for poultry, livestock, fish, pets, etc. such as cattle, cows, sheep, goats, chickens, horses, fish, rabbits, cats, dogs, etc. Small-scale feed pellet plants could produce 60-600kg /h, and large-scale plants could produce 600-1000kg/h.
Feed ingredients for feed pellet plant
The raw material can be used to make animal feed pellets by feeding pellet mills that have corn, legumes, straw, grasses, and other raw materials.
- Corn: such as corn, wheat, barley, etc. These grain raw materials are the main components of the production of feed, providing energy and nutrition.
- Legumes: such as soybean meal, rapeseed meal, peanut meal, etc. These by-products are rich in protein and help to improve the nutritional value of feed.
- Straw: such as corn straw, wheat straw, etc. These raw materials can be used as roughage to increase the fiber content of feed.
- Grasses: such as grass powder, often used to provide cellulose and trace elements.
- Other plant ingredients: such as rice bran, leaves, etc. These ingredients can provide additional nutrients.

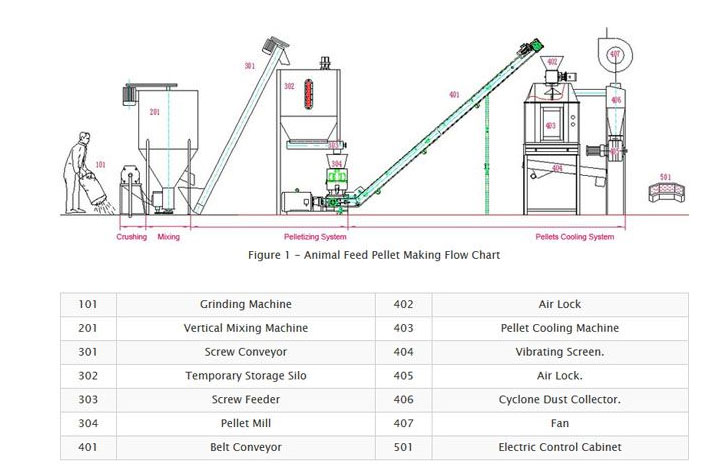

The process of feed pellet plant
- Step 1: Raw material ratio: according to design, the raw material is mixed by ratio.
- Step 2: Crushing: the raw material is crushed and reduces pellet particles, increases specific surface area, and improves digestibility and utilization. Generally, the crushing fineness of cereals, beans, and oil meals should reach about 0.1 mm. The crushing fineness of crop stalks and shells should be below 0.1 mm.
- Step 3: Mixing: the crushed material is mixed and forms a uniform mixture.
- Step 4: Pelletizing: the mixed material is compressed into a pellet shape. The pelletizing process needs condition and extrude to ensure water resistance and appropriate physical properties. The feed pellet plants manufactured cover a wide range of target production from 60-1000kg/h.
- Step 5: Cooling: After pelletizing, the feed material needs to cool and screen, to ensure the quality of the final product. The outlet pellets can reach a temperature of 2-5℃ higher than room temperature.
- Step6: Packing: The cooled and screened feed particles are packed and ready for delivery.
Advantages of Animal Feed Pellet plant
AGICO animal pellet plant has lower cost, convenient operation and maintenance. It is designed by the AGICO research and development team, You just need to operate the electric control cabinet step by step.
AGICO animal pellet plant is high yield, energy-saving, and environmentally friendly. You can obtain 2000-3000 tons of feed pellets every year.
AGICO products have passed a number of international certifications and strictly control every link to ensure impeccable machine quality. We adopt the most advanced technology and equipment to ensure machine excellent product quality.
The equipment of feed pellet plant

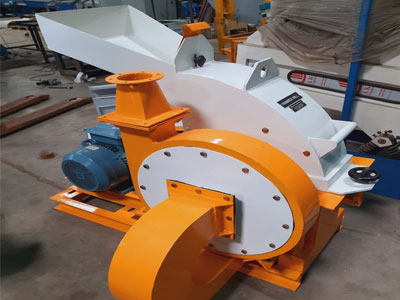

Hammer mill
.Hammer mill crusher is suitable for crushing raw materials with sizes less than 30~50mm, such as cotton stalks, corn stalks, wheat straw, etc. It is used for large particles crushed into small particles to improve the digestibility and absorptivity of feed. After the crushing process, the output size of the material can reach 3-5mm.

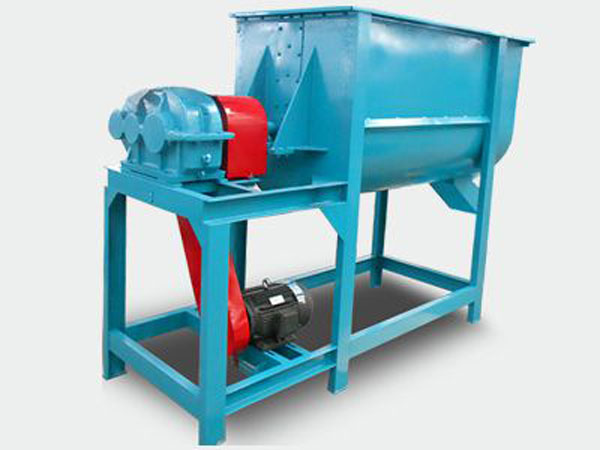

Mixer
Mixers could be divided into two types: horizontal feed mixers and vertical feedmixersr. The feed mixer is to ensure animals can obtain the necessary nutrients in every meal. The feed mixer ensures ingredients of feed are uniformly distributed to prevent animals from just eating part of the feed. The mixing cycle is generally 3 to 6 minutes.
Pellet mill
The pellet mill is divided into two types: flat die feed pellet mill and ring die feed pellet mill. The pellet mill is a kind of equipment used to crush raw material into pellet feed. The feed pellet machine can be adjusted into different sizes through different models of die diameters. The feed pellet machine’s capacity is 60-1000 kg/h.

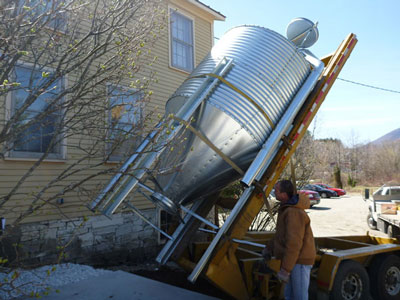

Storage silo
The storage silo is an important piece of equipment used for storing feed pellets. It usually uses a vertical cylinder design, has higher storage capacity, and good sealing to ensure the freshness and the quality of feed.

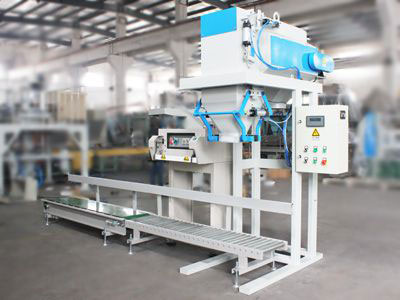

Packing machine
The pellet packing machine is an automatic equipment, that could automatically complete all working particles such as measuring, bag-making, filling, and sealing the animal feed pellet.

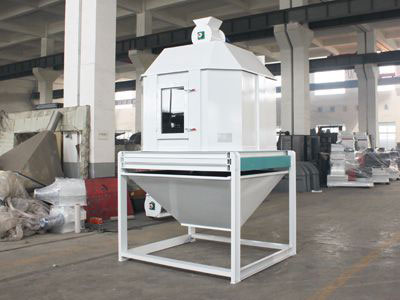

Cooler
After pelleting, the feed pellet has a temperature of 70-85℃. So the feed pellet needs to cool down near room temperature to meet storage requirements by using a cooler. This feed pellet cooler occupies small areas.
Parameter of animal feed pellet machine.
Flat Die Feed Pellet Mill
| Model | Power(KW) | Capacity(KG/H) | G.W./N.W. | Packing size |
|---|---|---|---|---|
| ZLSP-D 120B | 3/2.2 | 60-100 | 80/100 | 750x320x680 |
| ZLSP-D 150B | 4 | 90-120 | 95/110 | 800x450x700 |
| ZLSP-D 200B | 7.5 | 200-300 | 200/230 | 1650x820x1200 |
| ZLSP-D 230B | 11 | 300-400 | 290/320 | 1050x480x930 |
| ZLSP-D 260B | 15 | 400-600 | 320/360 | 1180x540x1000 |
| ZLSP-D 300B | 22 | 600-800 | 350/380 | 1240x540x950 |
| ZLSP-D 150C | 4 | 90-120 | 105/125 | 1000x480x780 |
| ZLSP-D 200C | 7.5 | 200-300 | 210/230 | 1050x550x830 |
| ZLSP-D 230C | 11 | 300-400 | 290/320 | 1200x560x950 |
| ZLSP-D 260C | 15 | 400-600 | 340/370 | 1240x580x1000 |
| ZLSP-D 300C | 22 | 600-800 | 425/465 | 1300x620x110 |
| ZLSP-D 120A | 8HP | 60-100 | 120/140 | 900x500x730 |
| ZLSP-D 150A | 8HP | 90-120 | 180/220 | 1000x500x750 |
| ZLSP-D 200A | 15HP | 200-300 | 210/240 | 1460x750x900 |
| ZLSP-D 230A | 22HP | 300-400 | 280/310 | 1560x850x1000 |
| ZLSP-D 260A | 30HP | 400-600 | 330/360 | 1200x500x1070 |
| ZLSP-D 300A | 55HP | 600-800 | 410/450 | 1220x600x1000 |
| ZLSP-D 150P | ≥8 Hp | 90-120 | 105/125 | 900x540x1020 |
| ZLSP-D 200P | ≥15Hp | 200-300 | 210/230 | 1000x540x1020 |
| ZLSP-D 2300P | ≥22 Hp | 300-400 | 290/320 | 1000x540x1020 |
| ZLSP-D 260P | ≥30 Hp | 400-500 | 340/370 | 1050x540x900 |
| ZLSP-D 300P | ≥55 Hp | 500-600 | 425/465 | 1100x540x1000 |
Ring Die Feed Pellet Mill
| Model | Power | Capacity | Diameter of ring die | Diameter of final feed pellet |
|---|---|---|---|---|
| BPM25 | 11kw*2 | 1.0-2.0t/h | 250mm | 2-10mm |
| BPM35 | 30kw*2 | 3.0-5.0t/h | 350mm | 2-10mm |
| BPM42 | 55kw*2 | 6.0-10.0t/h | 420mm | 2-10mm |
| BPM520 | 75kw*2 | 8.0-15.0t/h | 520mm | 2-1mm |
Application of feed pellet plant
The kinds of feed have many types, every raw material has different nutritional values and characteristics to the feed. No matter what your raw materials are, we could provide you with 60-1000kg/h customized animal feed mill plant solutions.
poultry feed mill
It is mainly used for processing turkey feed, duck feeds, goose feeds, quail feeds and bird feeds. The particle size is generally 1-6mm.
chicken feed mill
It is mainly used for processing broiler feed and laying hen feed. The pellet feed size is between 2-4mm.
cattle feed plant
It is mainly used for processing grass feed pellets, maize feed pellets, silage pellets, fermented feed pellets. The pellet size is 4-8mm.
fish feed plant
It is mainly used for processing fish pellet feed, shrimp pellet feed and crab pellet feed. The feed size is mainly 1-6mm.
pig feed mill
It is mainly used to process pig feeds at different growth stages, and the feed size is mainly 2-6mm.
horse feed mill
It is mainly used to process alfalfa pellets, rice bran pellets, timothy hay pellets, beet pulp pellets.
The cost of feed pellet plant
A small feed mill can cost around $20,000–$30,000 to set up. 600–1,000 kg of feed pellets per hour can cost around $10,000–$25,000.
Daily operating costs
| Item | Cost |
|---|---|
| Labor | $10 per ton |
| Energy | $10 per ton |
| Maintenance | $5 per ton |
| Repairs and lifecycle maintenance | $5 per ton |
| Transportation | $2.5 per ton |
Why Choose AGICO Group?
If you have any questions, please contact AGICO Group. We provide a one-stop service for you.
Feed pellet plant design
Based on your unique situation and industrial process, we will provide personalized customized solution and inform you minimize total cost of feed pellet plant.
Equipment installation and testing
we not only provide every equipment installation,but also provide customers with testing complete feed pellet plant system to ensure all machine safely operation.
Project follow-up
We provide comprehensive training for the technicians of every project and we promise one year warranty and life-long maintenance. And we are ready to answer your call 24/7.
Company certificates
AGICO Group have been enrolled as a member of both the China Standards Institute on the China Association of Rural Energy Industry and has won CE, ISO9000 and other certification.
Company strength
We have 20 years experience in feed pellet mill manufacturing, installation and commissioning .We have exported to 70 or 80 countries around the world, including UK, Nigeria, Thailand, India, etc.

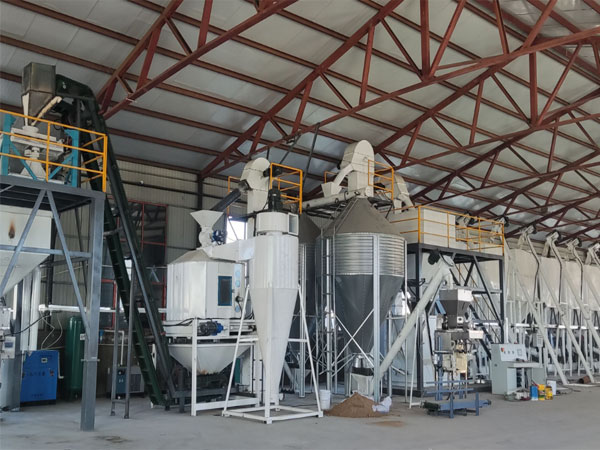

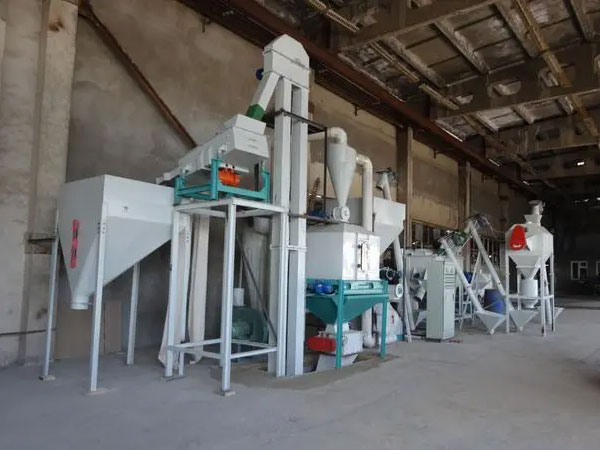

Feed pellet plant of customer views
01. Commercial Feed Production Project in Tanzania
- Capacity: 2~3 Tons per Hour
- Raw Materials: Maize, Soya, Bran, Oil Cake, Dry Fish etc.
- Target Animals: Chickens, Pigs and Cattle
- Final Products: Mash Poultry Feed, Poultry Feed Pellets, Crumble Chicken Feed, Mash Cattle and Pig Feed, etc.
- Main Chicken Feed Processing Machines: Crusher, Mixer, Feed Pellet Machine, Cooler, Crumble Machine, Vibration Screen and Automatic Packing Machine, etc
02. 1~2TPH Poultry Feed Pellet Plant Setup in Uganda
- Capacity: 1~2 Tons per Hour
- Animal: Chicks and Adult Chickens
- Raw Materials: Maize/Corn, Soybean, Sunflower Oil Cake, Soybean Oil Cake, Fish Meal (Premix Materials), etc.
- Final Products: 3mm Feed Pellets and 4.5mm Feed Pellets
- Poultry Feed Pellets Production Process: Preparation of Raw Materials, Crushing, Mixing, Conditioning, Pelletizing, Cooling, Screening and Packaging
Main Poultry Feed Pellets Production Equipment: Cleaning Machine, Crushing Machine, Mixer, Conditioner, Ring Die Feed Pellet Mill, Cooler, Packaging Machine, Conveyor, etc.
03. 2~4TPH Cattle & Chicken Feed Processing Plant in Uzbekistan
- Capacity: 2~4 tons per hour
- Country: Uzbekistan
- Raw Materials: Maize/Corn, Wheat, Rice Bran, Cottonseed Oil Cake, Sunflower Seed Oil Cake, etc.
- Final Feed: Chicken Feed Pellets (always used for feeding chickens in chicken cages) and Cattle Feed Pellets
- Main Equipment: Crushing, Mixing, Pelletizing, Cooling and Bagging
