Chicken Cage
- Cage Material: Q235 wire mesh and co,d/hot galvanized sheet; 275g/㎡ galvanized aluminum wire mesh & 275g/㎡ cold/hot dip galvanized plate
- Tiers: Tiers: 3, 4 (according to the height of the house and your anticipated farming scale)
- Lifespan: 20+ years
- Certificates: ISO9001, SGS
Chicken Cage For Sale
AGICO can customize your chicken cage equipment according to your raw material and desired yield. Our chicken cage solution is cost-efficient and reliable, allowing you to maximize your profit.
AGICO Group is a company that conducts research and development, production, and sales as one of its professional poultry breeding equipment. Our company has an annual output of 500,000 sets of various poultry breeding cages, and is one of the biggest professional chicken cage manufacturers. Our company wins trust and praise from customers all over the world, due to scientific design, high-quality technology and good after-sales service.
- Poultry House: open house or semi-open house
- Tiers: 3,4
- Age of chickens: from 80 days old (0.9kg) to harvest day
- Area for one chicken: 430 cm² to 470 cm²
- Poultry House: open house or semi-open house
- Tiers: 3,4
- Age of chickens: day 1 to harvest day
- Area for one chicken: 406.25 cm²

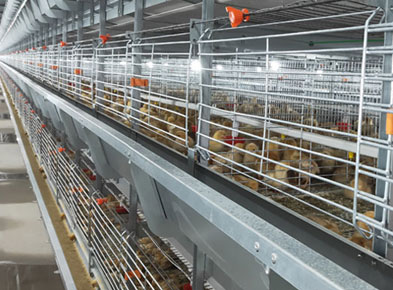

Chick cage
- Poultry House: open house or semi-open house
- Tiers: 3,4
- Age of chickens: from 0 to 7 weeks
- Lifespan: Last 20-30 years
- Poultry House: open house or semi-open house
- Tiers: 3,4
- Age of chickens: from 1 week old -110 days
- Area for one chicken: 362 cm² at least before 110 days

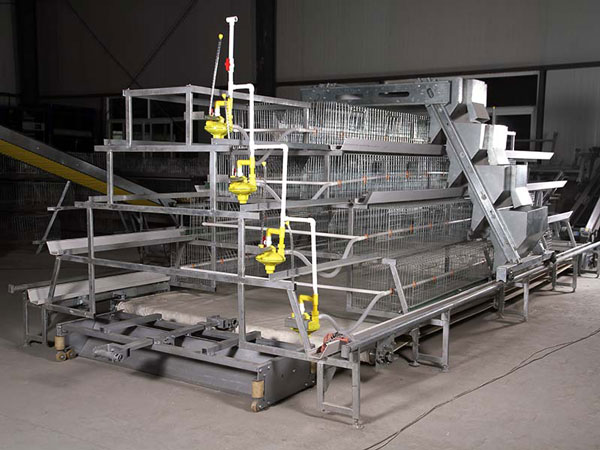

A type chicken cage vS H type chicken cage
A type of chicken cage has good ventilation, so it could save the defecation problem. It installs simply and is durable. The price is lower. It is currently the most commonly used cage equipment in poultry farming.
- Comparatively lower cost
- Good ventilation, but a large space is taken
- Easy clean manure
- Simple structure and easy maintenance
| Tier | Capacity | Cage size (cm) | Cell size | Cell capacity | Door | area /bird(cm2) |
|---|---|---|---|---|---|---|
| 3 | 90 birds/set | 195*230*150 | 39*41*41 | 3 birds/cell | 5 doors | 533 |
| 3 | 96 birds/set | 172*230*150 | 43*41*41 | 4 birds/cell | 4 doors | 440.75 |
| 3 | 120 birds/set | 195*230*150 | 37*41*41 | 4 birds/cell | 5 doors | 399.75 |
| 3 | 120 birds/set | 215*230*150 | 43*41*41 | 4 birds/cell | 4 doors | 440.75 |
| 4 | 120 birds/set | 195*230*150 | 39*41*41 | 3 birds/cell | 5 doors | 533 |
| 4 | 128 birds/set | 172*230*150 | 43*41*41 | 4 birds/cell | 4 doors | 440.75 |
| 4 | 160 birds/set | 195*230*150 | 37*41*41 | 4 birds/cell | 5 doors | 399.75 |
| 4 | 160 birds/set | 215*230*150 | 43*41*41 | 4 birds/cell | 4 doors | 440.75 |
| 3 | 126 birds/set | 183*230*150 | 61*50*37 | 7 birds/cell | 3 doors | 435.7 |

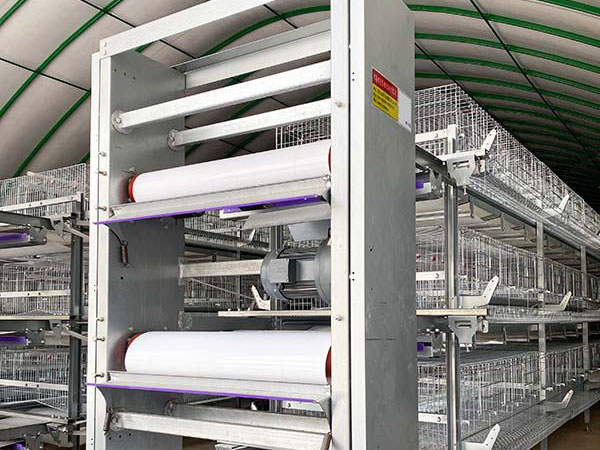

Each layer of H type chicken cages is stacked vertically, could increase the number of chicken and is convenient for group management of chicken flocks. This increases utility rate of space. Its cost is lower and greatly improve labor productivity.
- Large-scale chicken houses
- Less labor required
- Save floor space and increase the density of breeding
- Easy to install and operate
| Tiers | Cell size | Set size | Capacity | Birds/cell | Area/bird(cm2) | Cage door |
|---|---|---|---|---|---|---|
| 3 | 450*500*410 | 1800*1000*2200 | 120 | 5 | 450 | 4 doors/side |
| 4 | 450*500*410 | 1800*1000*2800 | 160 | 5 | 450 | 4 doors/side |
| 3 | 450*600*410 | 1800*1200*2140 | 144 | 6 | 494 | 4 doors/side |
| 4 | 450*600*410 | 1800*1200*2790 | 192 | 6 | 494 | 4 doors/side |
| 5 | 450*600*410 | 1800*1200*3440 | 240 | 6 | 494 | 4 doors/side |
| 6 | 450*600*410 | 1800*1200*4090 | 288 | 6 | 494 | 4 doors/side |
| 3 | 650*625*500 | 650*1250*2200 | 54 | 9 | 451.38 | 1 door/side |
| 4 | 650*625*500 | 650*1250*2850 | 72 | 9 | 451.38 | 1 door/side |
| 5 | 650*625*500 | 650*1250*3500 | 90 | 9 | 451.38 | 1 door/side |
| 6 | 650*625*500 | 650*1250*4150 | 108 | 9 | 451.38 | 1 door/side |
| 8 | 650*625*500 | 650*1250*6200 | 144 | 9 | 451.38 | 1 door/side |
The advantage of chicken cage
Solid structure
The cage adopts Q235 steel and 275g galvanized steel wire mesh. The cage frame and plates are made of 275g hot-dip galvanized sheet materials, which have strong corrosion resistance. U-shaped reinforcing bars make the cage frame firm and stable, and easy to clean.
Proper bottom mesh
The appropriately sized bottom net can ensure that the chicken manure can be discharged out and avoid accumulation of chicken manure in the net. Pull out the bottom net. The chickens leave the manure belt. The manure belt is then transported to the chicken-catching tray outside the house.
Widely application
the adjust plate is installed in the feed chute. The plate could move up and down, to the suitable feeding height of chicks at different growth stages.
Saving feed
The net cage structure is reasonable and could prevent feed loss and waste. At the same time, the net cage material and structure is carefully chosen and processed so that the waste of feed caused by the damage of cages can be reduced.
why choose AGICO Group
Our factory has complete equipment, and various kinds of poultry production lines are complete. Our factory is equipped with advanced machines like NC turret punch presses, laser cutters, and welding machines.
01
rich experience
AGICO Group has 30 years of poultry equipment manufacturing and supply experience.
02
full kinds of cages
AGICO Group has all kinds of chicken cages, including layer cage, broiler cage, chick cage, pullet cage.
03
customized service
Unsure of how many cages are needed, you can tell us how big your coop is or how many chickens you plan to keep. AGICO Group could provide clear drawings for you to maximize your production.
04
after-sales
AGICO Group has an expert team and will supply thoughtful after-sales service to help you install and operate equipment. In addition, our product has a one-year warranty.
Auxiliary Equipment of chicken cage

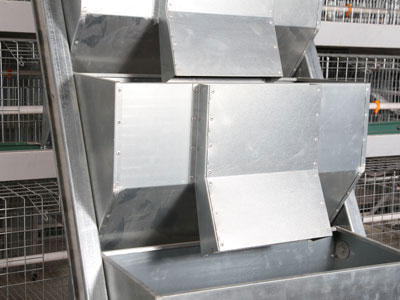

01. Automatic Feed system
Best-quality feed trolley with MCN motor, galvanized feed trough,South-African silo anger
02. Climate control system
SIMENS fan, 150mm thick paper&aluminum alloy frame cooling pad, automatic air inlet

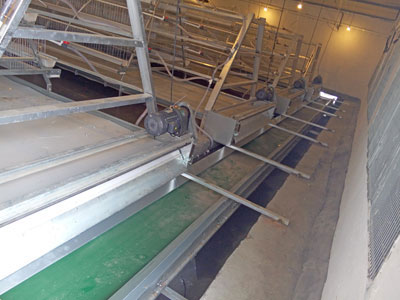

03. Poultry manure removal system
Italy-imported 1.0 mm HDPP belt drived by MCN motor, 2 galvanized scrapper keep clean
04. Poultry drinking system
This system includes a water pipe, v-shaped sink, pressure regulator, nipple drinker, water filter, mediator.
05. Egg collecting machine
Italy imported belt, 20+ years lifespan, vertical collection machine to collect 40,000 eggs/hour
06. Egg incubator
An egg incubator is a machine that controls parameters to help the hatching process of eggs.
comparison of two types chicken cage
| Project | Traditional Chicken Cage | Modern chicken cage | Comparison of investment returns |
|---|---|---|---|
| Initial Investment | Lower | Higher | Long-term benefits are obvious |
| Egg production rate | 75% | 90% | Earn about $15,000 more per year |
| Managing costs | High | Low | Reduce labor costs by 30% |
| Maintenance frequency | Multiple times per year | Once every 5 years | Significantly reduce maintenance |
Initial investment of traditional chicken cage is lower, but maintenance cost is higher. And under the same technical indicators, the egg production rate of traditional chicken cage achieve 75%, modern chicken cage produce 90 % chickens.
- Modern chicken cage could efficiently take advantage of land, space utilization rate is high, easy to come true scale and and intensification.
- Manure is drying and utilization is high, it could reduce environmental pollution.
- Modern chicken cage could improve Labor efficiency and achieve automated production.
- The fully closed model could efficiently control epidemic occurrence and have an important influence in sustainable development.

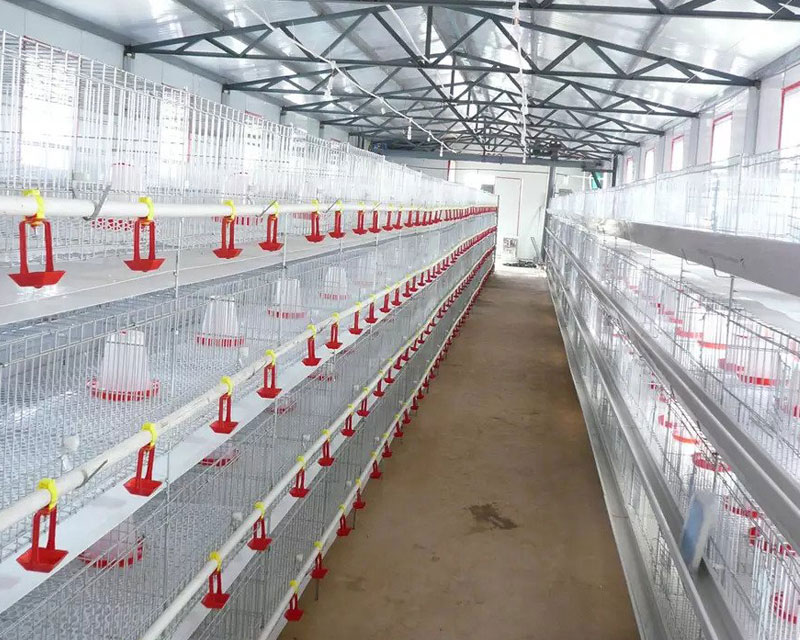

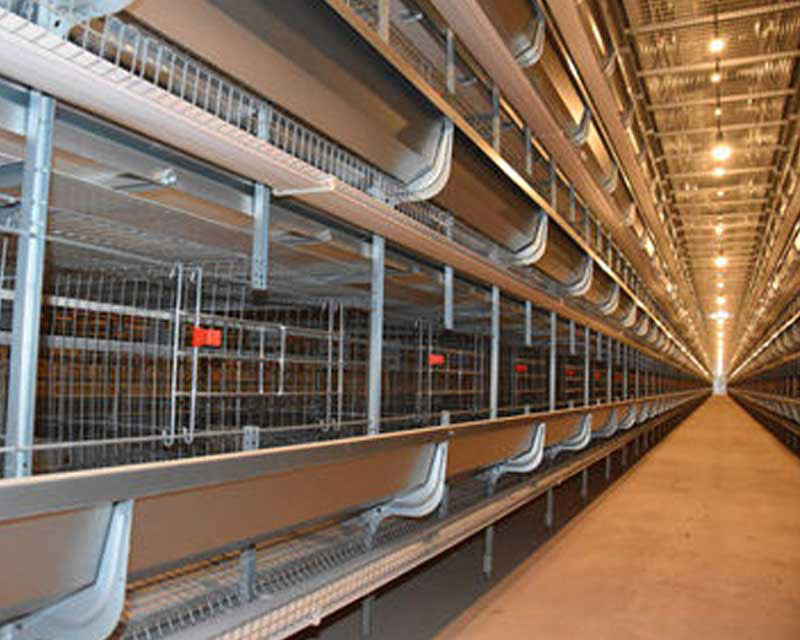

successful projects of chicken cage
