A type chicken cage
ISO Qualified Product
32+ Years of Rich Experience
50+ Countries Exported

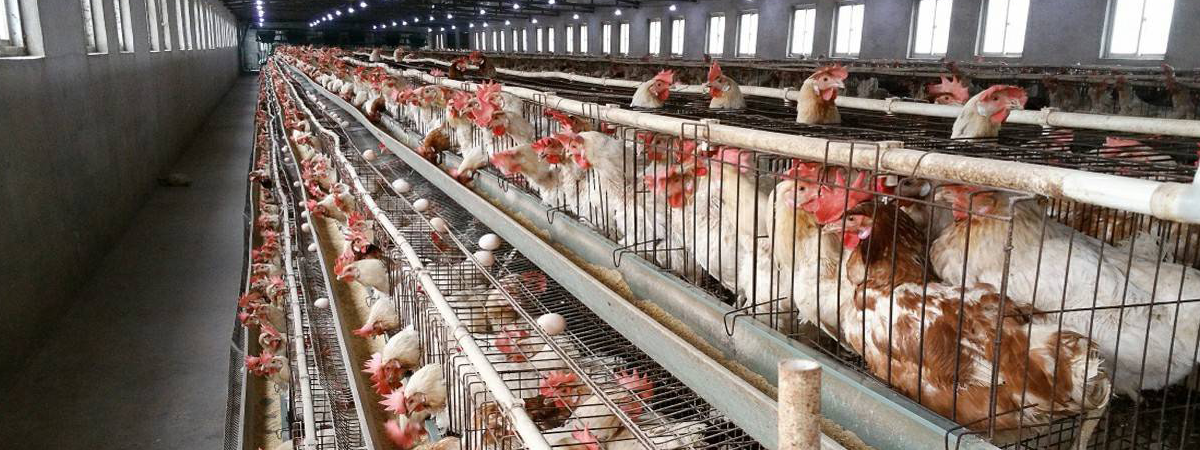

Introduction to A type chicken cage
A type of chicken cage is a layer battery cage and an intensive poultry feeding system. Chickens are housed in compartments. The name comes from the fact that it involves a group of similar cages combined into a type A. Compared with an A-type chicken cage and H type chicken cages, its floor slopes from back to front, making eggs roll from the back of the cage to the front. It is easier to collect eggs. A type is greatly suitable for laying eggs on a layer farm.
- Material: Hot Galvanized Steel
- Tiers: 3/4
- Life Time: 20-30 Years
- Certificates: SO9001, SGS
32
years
OF EXPERIENCE
the benefits of A type chicken cage
- A type of chicken cage is generally 3-4 tiers, which could ensure chicken is bred comfortably and efficiently.
- A type chicken cage is traditional cage, compared with H type cage, price is affordable, suitable for starting poultry business.
- The bottom mesh of A type of chicken cage has a reasonable slope to reduce the broken egg rate. A type of chicken cage has protection design to prevent the chickens from pecking at the eggs, resulting in higher quality eggs.
- A type of chicken cage has a reasonable staggered distance between the upper and lower cage to prevent the manure from the upper cage from falling on the lower cage.
comfortable space
affordable price
high quality eggs
easy to clean
Specification of A type layer cage
A type 3 tiers layer cage
| Type | Capacity | Capacity | Cell size | Cell capacity | Door | Average area (cm2) | Volume/20ft’ container |
|---|---|---|---|---|---|---|---|
| A type 3 tiers | 90 chickens/set | 195*230*150 | 39*41*41 | 3 birds/cell | 5 doors | 533 | 100 sets |
| A type 3 tiers | 96 chickens/set | 172*230*150 | 43*41*41 | 4 birds/cell | 4 doors | 440.75 | 110 sets |
| A type 3 tiers | 120 chickens/set | 195*230*150 | 37*41*41 | 4 birds/cell | 5 doors | 399.75 | 100 sets |
| A type 3 tiers | 120 chickens/set | 215*230*150 | 43*41*41 | 4 birds/cell | 4 doors | 440.75 | 90 sets |
A type 4 tiers layer cage
| Type | Capacity | Capacity | Cell size | Cell capacity | Door | Average area (cm2) | Volume/20ft’ container |
|---|---|---|---|---|---|---|---|
| A type 4 tiers | 120 birds/set | 195*230*150 | 39*41*41 | 3 birds/cell | 5 doors | 533 | 80 sets |
| A type 4 tiers | 128 birds/set | 172*230*150 | 43*41*41 | 4 birds/cell | 4 doors | 440.75 | 85 sets |
| A type 4 tiers | 160 birds/set | 195*230*150 | 37*41*41 | 4 birds/cell | 5 doors | 399.75 | 80 sets |
| A type 4 tiers | 160 birds/set | 215*230*150 | 43*41*41 | 4 birds/cell | 4 doors | 440.75 | 70 sets |
A type chicken cage details
Cage frame
The surface of the cage frame is hot dip galvanized and is more anti-rust. The angle bar is thick and wide, very firm.

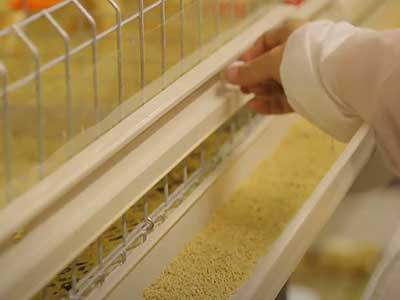

Durable feeder trough
Original PVC material, more anti-age, not easy to be broken, never rusts.
Reasonable slope
A reasonable slope at the bottom mesh reduces the rate of broken eggs.
Cage mesh
Hot dipped galvanized surface treatment, the lifetime can be 15-20 years
We Are Your Professional Poultry Farm Solution Provider!

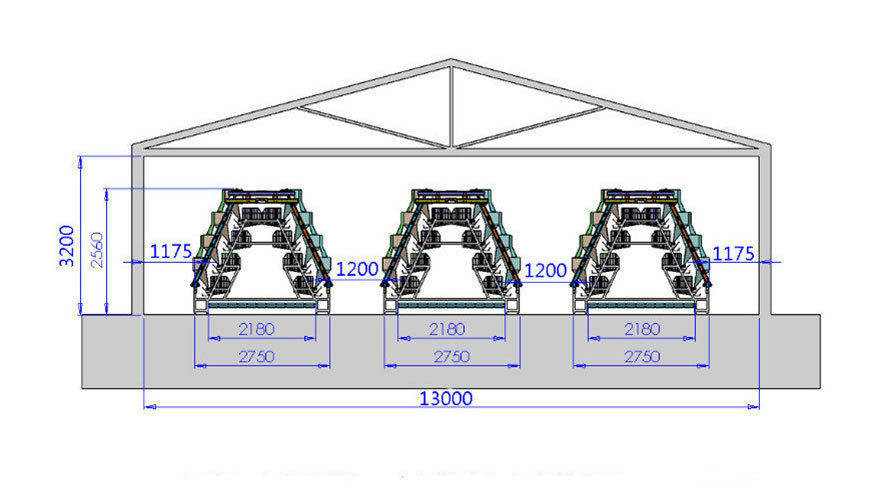

layout of a chicken farm for A type chicken cage
- If your layer chickens are less than 2000, we suggest you only buy a chicken cage. The drinking system is automatic, but workers need to feed the chickens manually, collect eggs, and clean manure.
- If you have 5000-10000 chickens, we suggest you purchase a battery chicken cage and poultry manure removal system. By removing manure promptly, you will reduce the likelihood of disease and increase egg production. At the same time, you could reduce time and labor costs. Scraper-type manure remover is economic. Semi-automatic chicken feeders are also necessary for several chickens. It is small, so the cost is less than an automatic chicken feeding machine. You could feed chicken for half an hour.
- If you have more than 10000 layers of chicken, you may need automatic equipment, including a battery chicken cage, automatic chicken feeder, automatic egg collector, and automatic manure removal system. If your scale is more than 50000 chickens, you should need a feed silo. For less than 50000 chickens, you could a single screw conveyor is used to transport the food to the hopper. If you want to build a closed system, you need to know that exhaust fans and cooling pads are necessary environmental control equipment items. If you have an open system and the weather is hot, you can use an atomizer.
Accessories for A type chicken cage
automatic feeder system
Climate control system
poultry manure removal system
drinking system
egg collection machine
egg incubator
Why choose AGICO Group
Customization service
Tailored cage equipment to meet personalized breeding needs.
Precision feeding
Boosts efficiency, promotes growth, and improve quality.
Intelligent water supply system
Optimizes water resources, enhances animal health, and reduces waste.
Automatic manure cleaning
Maintains hygiene, reduces disease, and cuts labor costs.
Save feed
Prevent waste, ensure durability, and reduce production costs.
Improve survival rate
Boosts animal survival through automation and intelligent management.
Small meals frequency
Enhances nutrient absorption, promotes growth, and improves health.
Reduce labor costs
Modernizes the breeding industry, streamlines staffing and improves economic benefits
