battery cage for sale
battery cage For Sale—AGICO GROUP Supplier
- Product: A type battery cage, H type battery cage
- Breeding scale: A type 5000-30000, H type 10000-100000
- Tiers: A type 3-4, H type 3-6
- Material: Hot galvanized, Q235
- Lifespan: Last 20-30 years
- Chicken Capacity: A type 90-160, H type 144-288
Battery Cage for Sale refers to a layer cage system used in large-scale egg-laying chicken farming. As a turnkey project manufacturer with over 20 years of experience in manufacturing breeding equipment, we can provide customers with a comprehensive set of one-stop solutions, including process design, equipment manufacturing, project construction, upgrading and renovation, as well as maintenance services.
solution 1: A type battery cage
The structure of an A type battery cage is simple, investment is lower. So it is suitable for small and medium-sized farms, and the initial investment is low.
| Tiers | Cell Size (mm) | Set Size (mm) | Chicken Capacity |
|---|---|---|---|
| 3-Tier | 390*380*380 | 1950*2300*1500 | 90 |
| 3-Tier | 390*410*410 | 1950*2300*1500 | 120 |
| 4-Tier | 390*380*380 | 1950*2650*1700 | 160 |
| 4-Tier | 390*410*410 | 1950*2650*1700 | 160 |
Advantages Of A Type battery cage
- The entire battery cage system does not use welding technology. Its structure is stable and durable, providing a long service life, high cost-effectiveness, and suitability for low-cost investment.
- It uses a thickened PVC white feeding trough, which ensures uniform feeding and reduces feeding costs.
- It is equipped with a stainless steel conical valve drinking fountain, allowing for 360° water consumption.
- The overlapping area is relatively small. So it has better ventilation, and it can choose an open or closed chicken cage according to customer needs. Compared with a traditional chicken cage, it could save 75% land, achieving the maximization of breeding quantity and capacity.
- The inclination angle of the bottom net (7°) is reasonable, which can ensure that the eggs roll out smoothly and minimize the rate of damage.

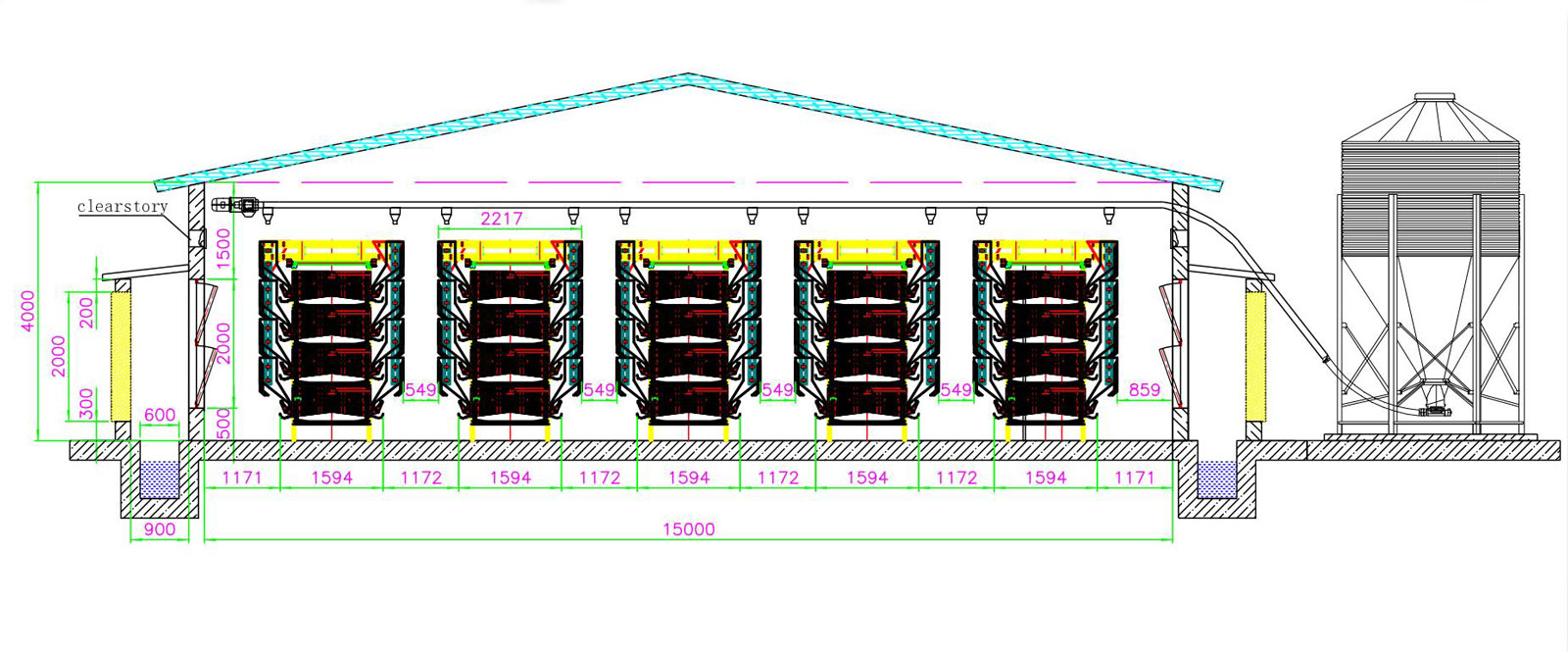

solution 2: H type battery cage
H type battery cage has a high automatic lever. So it is suitable for a large-scale commercial farm.
| Tiers | Cell Size (mm) | Set Size (mm) | Chicken Capacity |
|---|---|---|---|
| 3-Tier | 450*600*410 | 1835*2200*2600 | 144 |
| 4-Tier | 450*600*410 | 1835*2200*3250 | 192 |
| 5-Tier | 450*600*410 | 1835*2200*3900 | 240 |
| 6-Tier | 450*600*410 | 1835*2200*4550 | 288 |
Advantages Of H Type battery cage
- The front-end filtration device ensures clean water quality. The stainless steel water dispenser and the 360°water outlet ensure an adequate water supply and convenient drinking.
- The cage net is made of international standard Q235 steel wire. It has a smooth surface and will not damage the chicken's claws. It is corrosion-resistant and has a long service life.
- Since the H-shaped layer cages are vertically overlapping, they occupy less space and save more space.
- Due to its functions of automatic feeding, automatic drinking water, automatic manure removal, and automatic egg collection, it saves labor and time.
- It takes advantage of conveyor belt cleaning manure; conveyor belts for cleaning are cleaner than scraper-type cleaning.
- The entire cage adopt hot-dip galvanizing process manufacturing. H type battery cage is made of a frame to increase hardness and support capacity.
Automatic support systems of battery cage

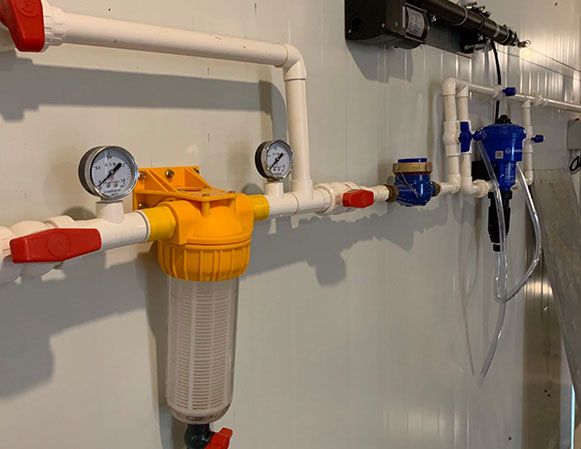

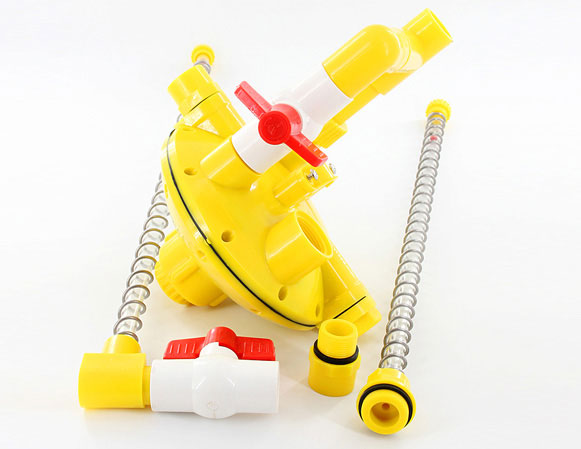

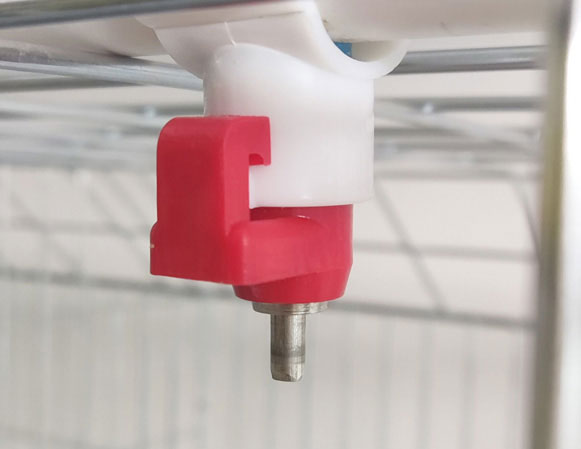

automatic drinking system
Drinking system includes water pipes, water tanks, water pressure regulators, drinking nozzles, water line front-end devices, dosing systems, etc. It could be selected according to customer needs. It adopts a steel ball drinking nozzle and is made of imported high-grade stainless steel, POM resin, and APS engineering materials. It is durable and long-lasting.

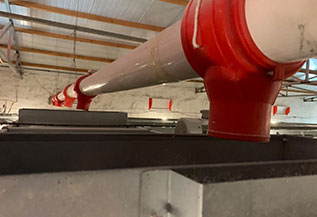

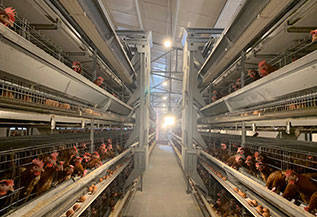

automatic feeding system

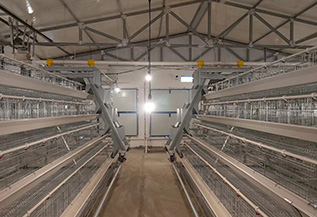

The automatic feeding system could choose the gantry type or the ladder type feeding machine. The speed of gantry type feeding machine is 9 to 12 meters per minute. It adopts an arch-shaped structure for feeding. It has a strong load-bearing capacity and is not easy to deform. And it saves labor and feed, greatly increases large-sacle breeding efficiency.

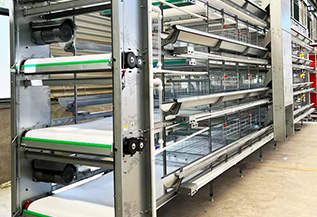

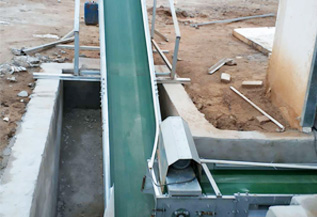

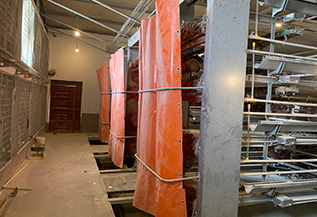

automatic manure removing system
The automatic manure removing system includes scraper-type and conveyor belt types. Scraper type is suitable for A type battery cages, can clean 2-3 liners. The conveyor belt type is more suitable for a large-scale breeding industry. The conveyor belt is made of high-quality polypropylene material. Its moving speed is 2 to 4 meters per minute.

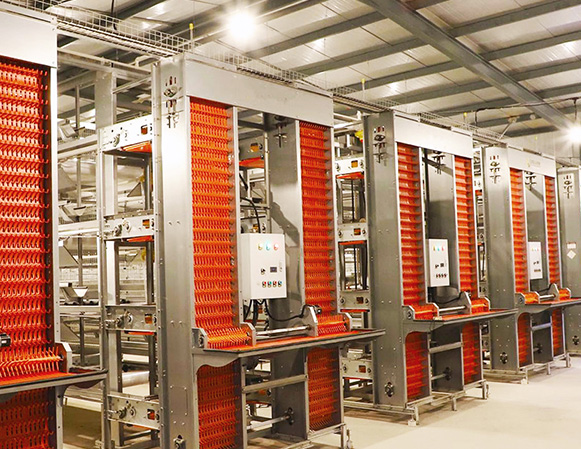

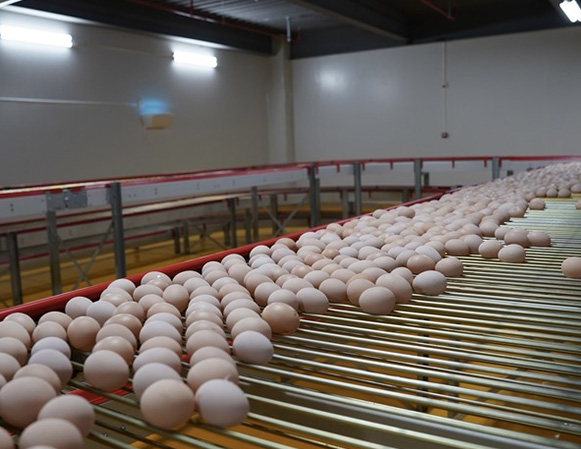

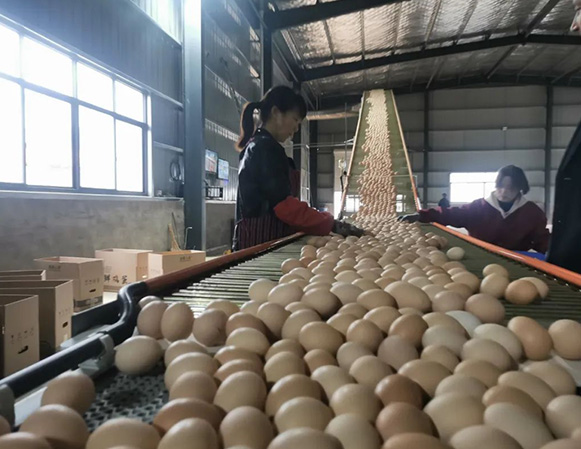

egg collection machine
A horizontal egg collection machine could effectively filter broken eggs and soft-shelled eggs, thus preventing the situation of mutual contamination during the egg collection process. The speed of the egg collection machine is 5 to 6 meters per minute. Take an 80-meter-long chicken cage as an example: eggs can be collected within 20 to 30 minutes.

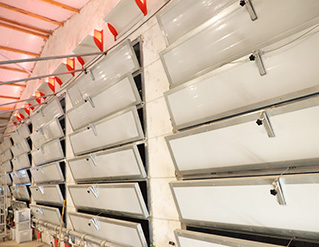

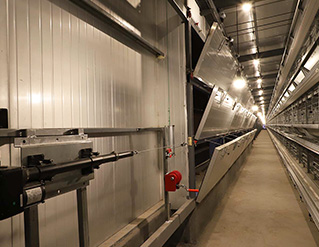

climate control system
A climate control system is suitable for large-scale and intensive cultivation. We could provide all kinds of automatic poultry equipment. It is capable of managing the climate, temperature, humidity, ammonia content, feeding, feed weighing, lighting, and ventilation systems of the chicken cage, and can also monitor the conditions of the chicken cage in real time through computers and mobile phones.
battery cage prices
The H type battery cage is a multi-layer vertically stacked structure. The columns and beams are thicker, and the amount of steel used has significantly increased. Moreover, H type battery cages are mostly equipped with automated systems, while A type battery cage are more often semi-automatic or operated manually. Therefore, H type battery cages are generally more expensive.
| Farm Capacity | Cage Type | Automation Level | Reference Price Range (USD) |
|---|---|---|---|
| 5,000 birds | A Type | Manual | $3,000 – $5,000 |
| 10,000 birds | A Type | Manual | $6,000 – $10,000 |
| 20,000 birds | A Type | Manual / Semi-auto | $12,000 – $18,000 |
| 30,000 birds | A Type | Semi-auto | $18,000 – $25,000 |
| 10,000 birds | H Type | Semi-auto | $15,000 – $25,000 |
| 20,000 birds | H Type | Automatic | $30,000 – $45,000 |
| 50,000 birds | H Type | Automatic | $70,000 – $100,000 |
| 100,000 birds | H Type | Fully automatic | $130,000 – $180,000 |
*Note: The price is based on the actual situation.
benefits of battery cage
Increase laying eggs
AGICO’s battery cages making eggs laying higher than the traditional system, has lower broken rate.
Reduce running cost
Automatic feeding, drinking, and egg collection functions could reduce labor needs by 40%, greatly reducing running costs.
Improvement in health condition
Sanitary conditions and disease prevention measures of AGICO’s battery cage can reduce the mortality rate by up to 30%, thereby also reducing the demand for medication.
Long-term investment value
AGICO’s battery cages has stable structure. So it has lower maintenance demand. This makes its service life longer, and the return on investment is also higher.
why choose AGICO GROUP

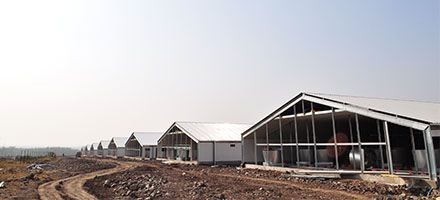

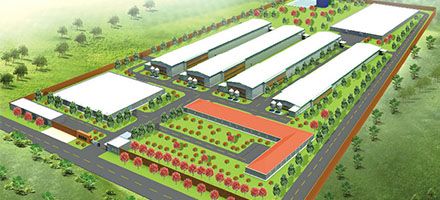

Professional one-stop project design
The customer supplies basic project information, then makes a comprehensive project design of the breeding farm according to biological safety, efficient investment, and high productivity.

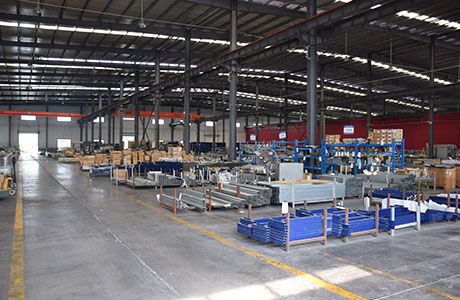

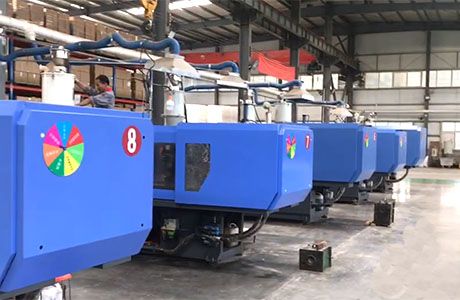

Strong production and integration capabilities
AGICO has strong production and high-quality OEM product integration capability enable provide the most personalized and efficient turnkey solution for customers.

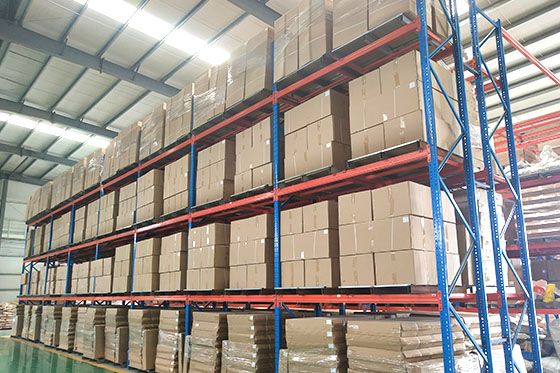

Efficient supply chain and logistics management
With a professional and efficient supply chain and logistics management system, we could deliver high-quality equipment to the customer’s location promptly, safely, and in perfect condition.

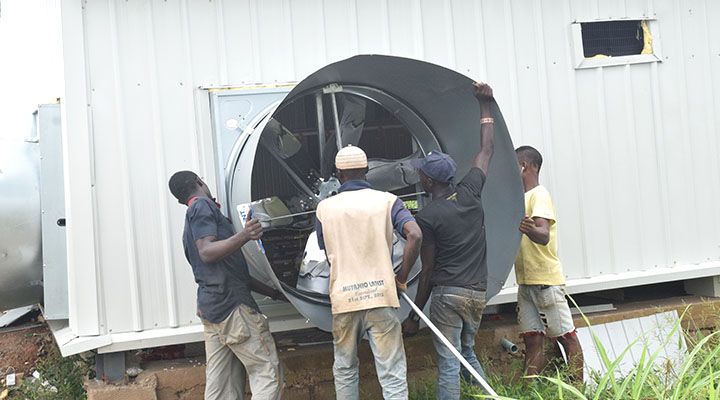

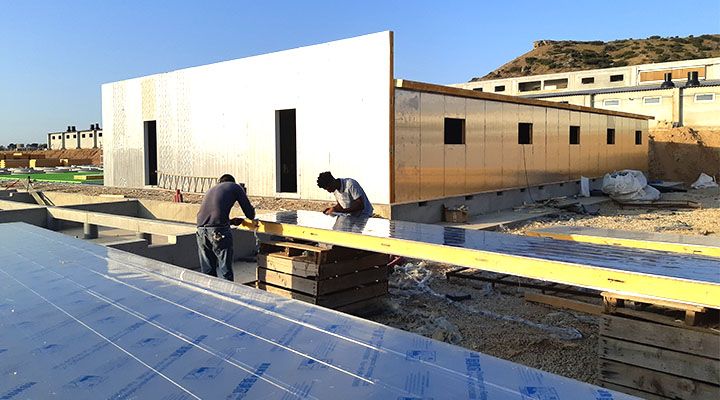

Experienced installation team
Our installation team owns over years installtion experience, forming a professional and effectively installtion team. From aspects such as material management, installation planning, personnel and machinery scheduling, etc. The entire process is effectively finished under strict company control.
