broiler cage for sale
AGICO cages are specially designed for raising broiler chicks from day age to maturity. They are built to use limited land space, provide optimal ventilation for birds, and improve performance and productivity. H type broiler cages can increase breeding density and thus improve land utilization. H type broiler chicken cages are more suitable for large farms. A type broiler cage is more suitable for small farms.

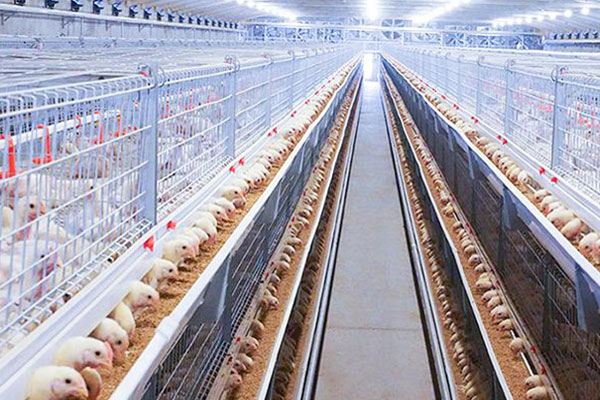

- Name: H type broiler chicken cage
- Material: Hot galvanized sheet and zinc aluminum alloy wire
- Service life: 20-30 years
- Number of tier: 3 tiers, 4 tiers

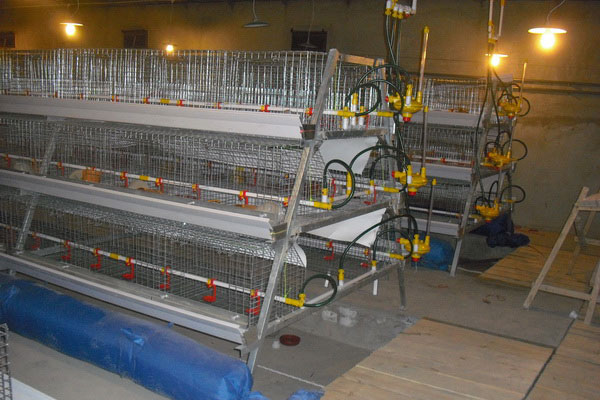

- Name: A type broiler chicken cage
- Material: Hot galvanized sheet and zinc aluminum alloy wire
- Service life: 20-30 years
- Number of tier: 4 tiers
Products Advantage
Better use of space
The density of a broiler cage is more than three times higher than the usual breeding density. It saves space and increases breeding density.
Better feed saving
It is equipped with an automatic feed system, centralized management, automatic control and save feed. It improves labor productivity and reduces labor costs.
Better disease control
The broiler cage has good ventilation and is better than on the ground. In addition, the broiler chicken doesn’t touch manure. So this could make it healthy growth and control disease.
the parameter of broiler cagess
| Item | System | Type | Size（L×W×H） | Total cells | Nos of chicken/cell | Nos of Chicks/ Set |
|---|---|---|---|---|---|---|
| H type | Without automatic manure cleaning system | 3 tiers 2 cells | 1.4 x 0.7 x 1.5m | 6 | 9-10 | 54-60 |
| 4 tiers 2 cells | 1.4 x 0.7 x 1.8m | 8 | 9-10 | 72-80 | ||
| With automatic manure cleaning system | 3 tiers 2 cells | 1.4 x 0.7 x 1.8m | 6 | 9-10 | 54-60 | |
| 4 tiers 2 cells | 1.4 x 0.7 x 1.8m | 8 | 9-10 | 72-80 | ||
| A type | 4 tiers 5 cells | 1.95×2.4 x1.95 | 40 | 2 | 80 | |

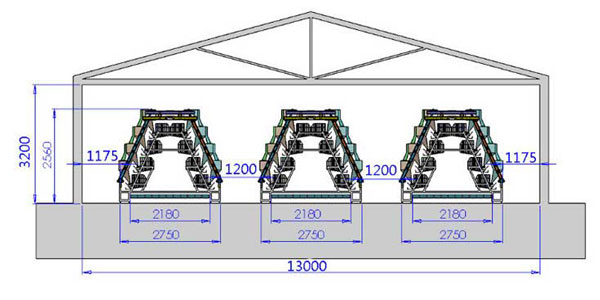

AGICO broiler cage design
- It is suitable for large commercial broiler farms and could feed thousands of broiler chickens.
- It is suitable for automatic feed, automatic drinking, and automatic fertilizing farms.
- It is suitable for places where land is expensive, as it can feed more chickens compared to an A-type chicken cage.
- The tiered design simplifies health checks and vaccinations, reducing disease transmission.
- The H type uses a manure belt.
- It is suitable for small-medium farms and is easier to manage and clean.
- It is suitable for manual feed and drinking systems.
- When it meets failure or power failure, it is easier to repair.
- The integrated design is three to four times that of ground-feed farming.
- A-type cages use a manure scrape.
Broiler Equipment
The broiler automatic cage system is the complete automation of the whole feeding process from feeding, drinking, climate control, and clean manure removal to egg collection.
Automatic feeding system
The feeding system has three types. The first is the feed hopper, and the second is the feed tray. The third is the chain feed system. An average system is provided at the bottom of the feed hopper to ensure the average feed of broilers.
Automatic drinking system
AGICO broiler drinking system is made of 304 stainless steel and ABS engineering plastic nipple drinker, a 2.0mm thick PVC water pipe, and an adjustable water pressure regulator. Automatic drinking system providing fresh and clean water.
Automatic climate system
It is controlled by the EC-1211 climate controller. High-quality fan adopts hot-dip galvanized frame. The average power of the fan is 36,000 m²/h, which could discharge harmful gas. The air intake is made of advanced PP material.
egg collection machine
The egg transporting belt is made of polyester high-strength wire, and an ultrasonic welding machine welds the interface. The claws are made of elastic plastic, their unique softness will not break eggs. The platform is equipped with a buffer mechanism to avoid collision.
Automatic clean manure system
Clean the broiler thoroughly with a 1.2mm thick PP manure belt and galvanized scraper. Special doors at the end of the cage are designed to keep the cage clean. Efficient cleaning manure system to keep clean and hygienic. It could quickly remove manure and save labor.
egg incubator
Our incubators have all the scale to meet small and large businesses. Every carton can hold up to 22528 eggs. Using electric heating elements and high-precision temperature sensors, the intelligent system maintains a temperature control accuracy of ±0.1°C, ensuring successful incubation.
Why choose AGICO Group
our factory
With 30 years of rich experience in poultry cage manufacturing, R&D practice, and import and export trade, AGICO focuses on continuously optimizing products and efficiently solving problems that are encountered in the trade process.
Our factory has complete equipment, and various kinds of poultry production lines are complete. Our factory is equipped with advanced machines like NC turret punch presses, laser cutters, and welding machines.
our service
- Warmly welcome for visiting: AGICO welcomes your visit at any time and humbly accepts guidance and suggestions from customers. AGICO will be your loyal partner.
- Raising equipment recommendation: Based on many years of industry experience, AGICO will recommend the appropriate type of raising equipment for your ideal farm and equip it with the most economical matching system.
- Customization Design: Broiler chicken usually needs six weeks to grow, you need to tell us when you want to sell your broiler chicken and we also need to know how many broilers you feed each month, and then we can estimate how many broiler cages you need.
- Installation & After-Sales Service: Our team of engineers can fly to any country in the world within 48 hours to provide installation guidance, as well as after-sales and maintenance service for your farm.
