Broiler Chicken Cage
- Tiers: 3, 4
- Age of chickens: day 1 to harvest day
- Area for one chicken: 406.25 cm²
Custom design
Logistics distribution
Installation service
Guide & training
Characteristics of broiler chicken
- Fast growth: The weight of broiler chicken is about 40g when they emerge from their shells. After 56 days, the weight is about 2kg, it weighs about 50 times as much as the outer shell.
- Short feeding cycle: Broiler chicken achieves market standards at 7-8 weeks of age. Take 2 weeks to clean and disinfect the coop, a batch of broilers can be produced in 10 weeks. If the chick is provided on time, broiler chicken could be produced in five batches in one year.
- High production efficiency: Compared with layer chickens, broiler chickens are quiet. In addition to drinking and feeding, broiler chickens rarely jump and fight. Especially in the late fattening period, due to the rapid increase in weight, the amount of activity decreased greatly.
the parameter of broiler chicken cage
A type broiler cage
| Tiers | Cell size(mm) | Cage size(mm) | Capacity/set |
|---|---|---|---|
| 3-Tier | 610*500*350 | 1830*2300*1500 | 126 |
| 4-Tier | 610*500*350 | 1830*2365*1700 | 168 |
H type broiler cage
Single side H type broiler cage
| Tiers | Cell size (cm) | Cage size (cm) | Capacity/set |
|---|---|---|---|
| 3-Tier | 150*100*49 | 150*100*220 | 90 |
| 4-Tier | 150*100*49 | 150*100*269 | 120 |
Double side H type broiler cage
| Tiers | Cell size (cm) | Cage size (cm) | Capacity/set |
|---|---|---|---|
| 3-Tier | 85*62.5*43 | 160*125*285 | 72 |
| 4-Tier | 85*62.5*43 | 160*125*285 | 96 |

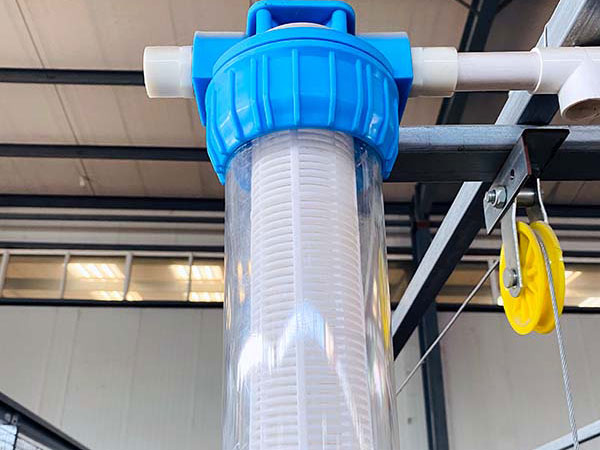

Broiler chicken cage details

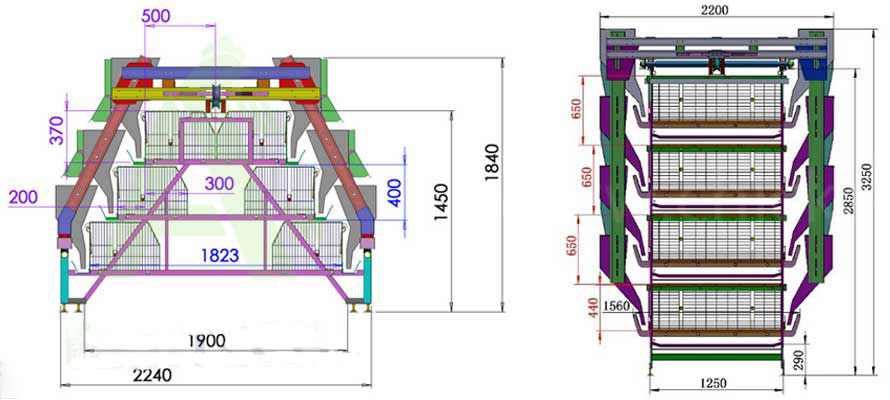

AGICO Group could develop a flexible design according to facts such as the lay out of the coop, dimensions, and the number of chickens. And we could be assembled into multiple forms such as H type and A type.

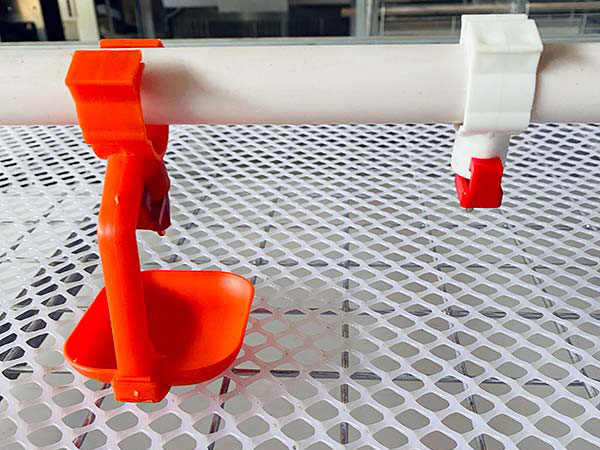

- Its bottom net has no angle, and no egg trough is required. But it needs to put a plastic net to prevent leg diseases and chicken breast cysts.
- The cage mesh adopts high quality galvanized steel wire, it has high toughness and good anti-rust effect. So it is beautiful and practical.

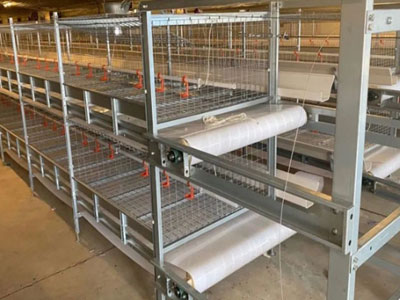

- All plates adopt SO9001, SGS certified hot galvanized sheet, which contains Zinc up to 275g.

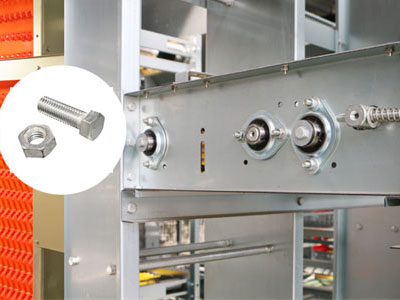

- It adopts automatic welding machine and has a solid solder joint.

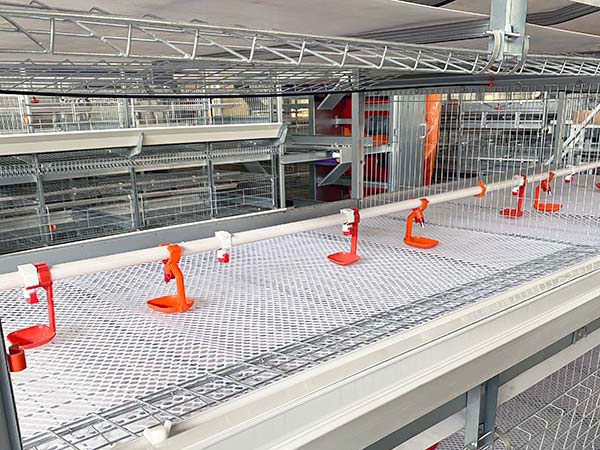

- It is equipped with a waterline adjuster. The Waterline adjuster could adjust the waterline according to the height of the broiler chicken to meet different day-age needs
- All motors are SO9001-certified copper core motors.
AGICO Group caged breeding solution
Cage system
It could equip H type or A type chicken cage.
Automatic climate system
It could control temperature, humidity and ventilation, provide ideal grown environment.
Automatic drinking system
It reduces water consumption and disease outbreak risk.
Automatic feeding system
On-rail hopper feeding system or pan feeding system could feed evenly and reduce waste.
Egg collection system
It increases egg collection efficiency and reduces breakage rate.
Manure removal system
It could quickly remove manure and save labor. And it could improve the coop environment
The advantage of broiler chicken cage
YEARS OF EXPERIENCE
TECHNICIANS &WORKERS
SATISFIEDCUSTOMERS
AGICO broiler cages have been practiced in the market for many years. Our chicken cage products have passed ISO9001 quality management system certification, EU CE certification, Africa PVOC certification, Nigeria SONCAP certification, OHSAS18001 certification, and so on.

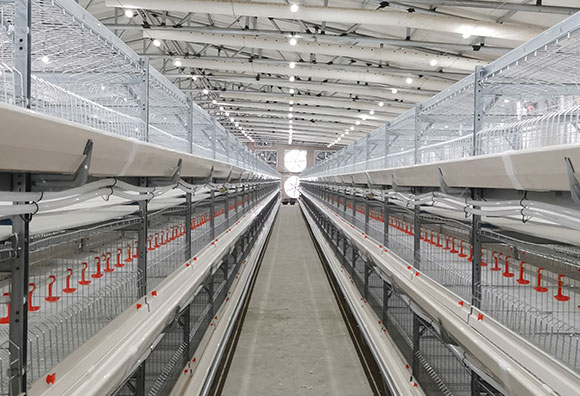

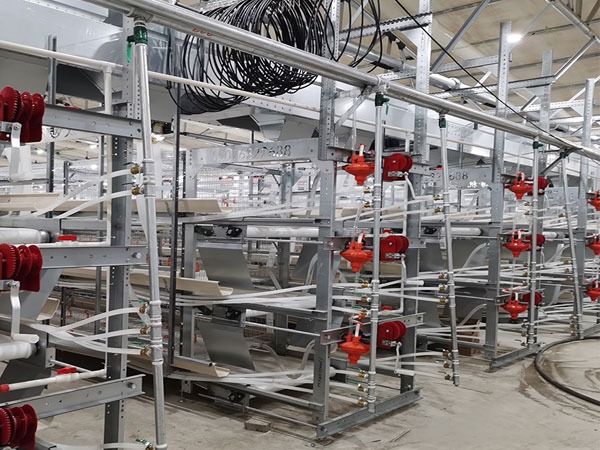

AGICO broiler chicken cage has reasonable structure and durable materials. Automatic climate system, automatic feeding system, automatic drinking system, automatic egg collection system, and automatic manure removal system contribute to healthy growth and good meat quality results.

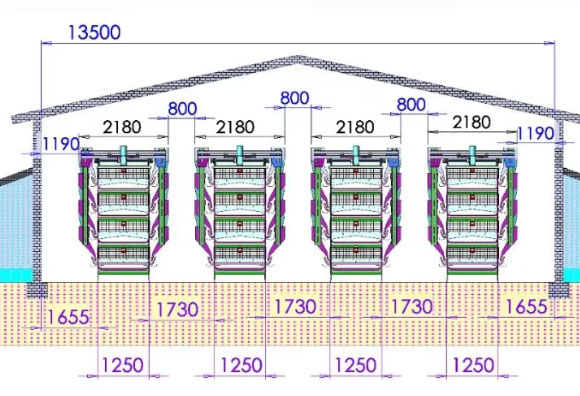

AGICO has an expert in poultry cage design and provides custom-sized poultry cages all year round for customers. Our cages are designed freely based on field research. Regardless of the size of your poultry farm, there is always a suitable broiler cage available for you.
Why choose AGICO Group
01. Rich experience
- AGICO accumulate 30 years experience in poultry industry.
- The product is suitable for layer chicken, broiler chicken, chick, and so on. We provide flexible and high efficient designs for farmers.
- The product includes climate, feeding, drinking, egg collection, clean manure, and other automatic steps, carrying out customized design to meet the diverse needs of different customers.
02. Strong ability
- The company has invested in introducing laser cutting machine, CNC bending machine, punching machine, forming machine, welding machine, spot welding machine and other kinds of equipment a total of more than 100 sets.
- Research, equipment, and installation are divided clearly. Production equipment is constantly updated with the needs of society.
03. High quality product
- AGICO has strict requirements on quality. Material are selected by SO9001, SGS certification model.
- The workshop carry out self-inspection, mutual inspection and final inspection to make quality of product guaranteed.
- Every new product undergoes a rigorous performance test to ensure the quality of the product is adequately guaranteed.
04. After-sales improvement
- AGICO installation team ensure installation perfect and run normal.
- After-sales quickly answer, 24 hours provide repair scheme.
- Product quality problems can be dealt with on site.
- Free guide and train user operation ways.
