egg laying cages
- Application: laying hens
- Material: hot-dip galvanizing
- Cage type: A-type chicken cage, H-type chicken cage
- Number of layers: A-type 3-4 layers; H-type 3-8 layers
- Capacity: 3–12 hens per unit
- Total Birds: 54–160 hens per set

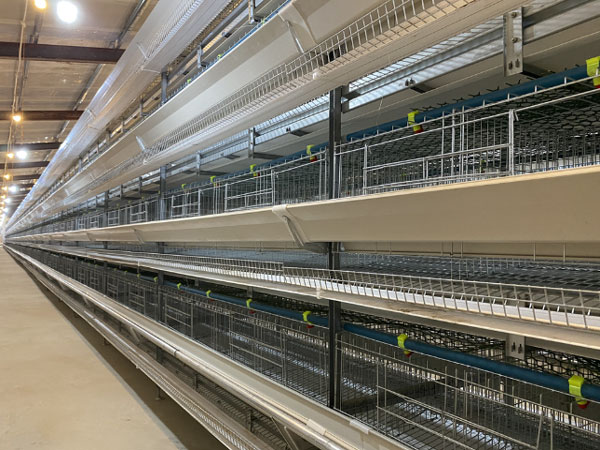

egg laying chicken cages for sale
The purpose of the broiler cages is to achieve the maximum weight gain in a short period of time. While egg laying cage refers to the cage designed for raising laying hens. This type of cage undergo optimize in order to promote laying eggs, reduce egg breakage rate, and ensure the chicken’s health in the long-term production cycle.

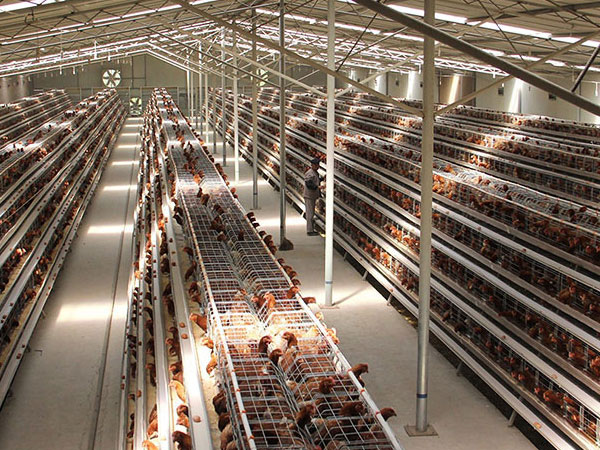

AGICO automatic chicken cage includes cage system, feeding system, drinking system, manure cleaning system, egg collection system, climate control system, etc. The cage is made of Q235 lightweight steel. The surface of the cage net is treated with high-temperature galvanization. It has excellent structural strength and rust-proof properties, and can last for up to 30 years.

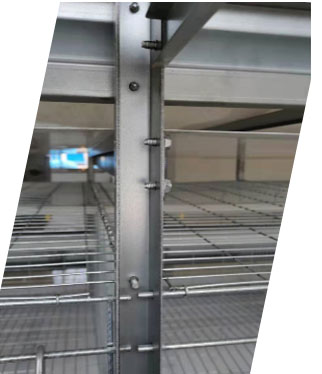

AGICO cage
- The U-shaped cage frame is sturdy and stable.
- Use self-tapping screws
- No back-screws

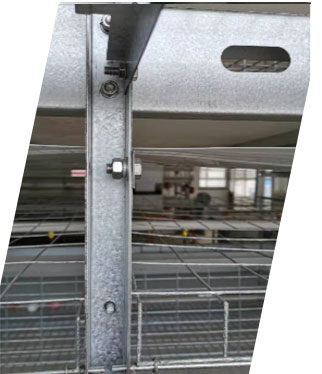

other cage
- Common screws
- Easy to screw
- not stable
parameter of egg laying cages

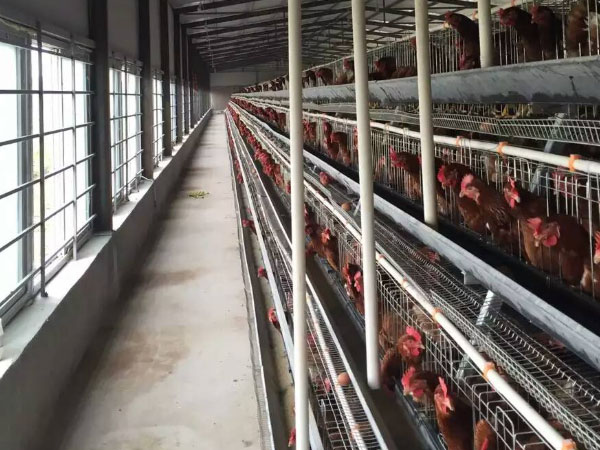

A Type egg laying cage
- Number of layers: usually 3-4 layers
- Dimensions: 1720×2300×1500 mm (3 layers 4 door), 2150×2300×1500 mm (3 layers 5 door) 1720×2650×1700 mm (4 layers 4 door), 2150×2650×1700 mm (4 layers 5 door)
- Capacity per set: 96–160 chicken
| Tiers | Cell Size (mm) | Set Size (mm) | Door (each layer & each side) | Capacity/Set | Cage Wire | Cage Frame | Feeding Trough | Water Line |
|---|---|---|---|---|---|---|---|---|
| 3 | 430×410×410 | 1720×2300×1500 | 4 (Poultry Weight ≤ 2.5 kg) | 96 | 45 | 14 | 25/3 set | 6/3 set |
| 4 | 430×410×410 | 1720×2650×1700 | 4 (Poultry Weight≤ 2.5 kg) | 128 | 45 | 14 | 25/3 set | 6/3 set |
| 3 | 430×410×410 | 2150×2300×1500 | 5 | 120 | 50 | 18 | 30/3 set | 8/3 set |
| 4 | 430×410×410 | 2150×2650×1700 | 5 | 160 | 50 | 18 | 30/3 set | 8/3 set |

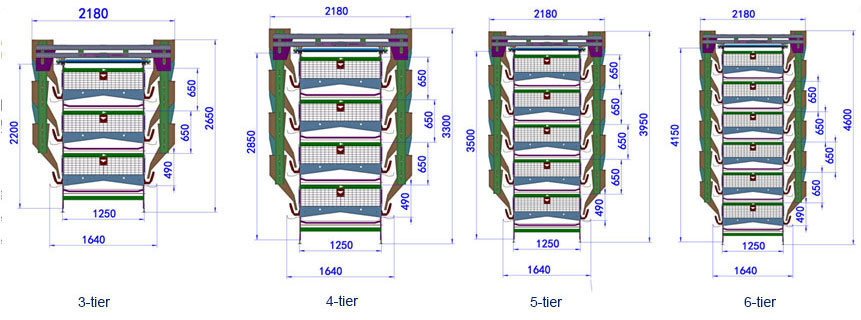

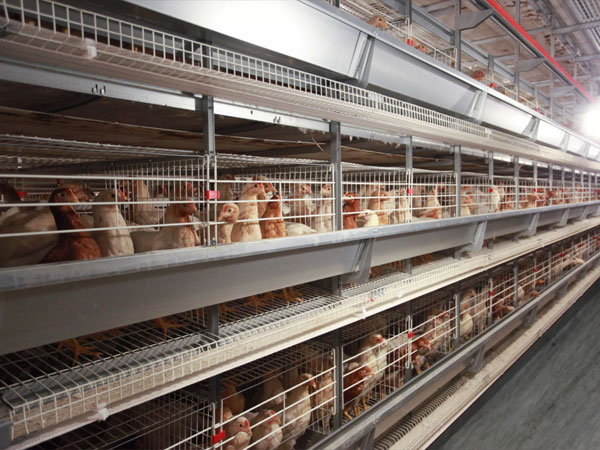

H Type egg laying cage
- Number of layers: usually 3-8 layers
- Cell size: 650×625×500
- Capacity per set: 55-144 chicken
| Tiers | Cell Size (mm) | Set Cage Height (mm) | Set Total Height (mm) | Set Total Width (mm) | Capacity/Cell | Capacity/Set | Door/Set |
|---|---|---|---|---|---|---|---|
| 3 | 650×625×500 | 2200 | 2650 | 2180 | 9 | 54 | 1 |
| 4 | 650×625×500 | 2850 | 3300 | 2180 | 9 | 72 | 1 |
| 5 | 650×625×500 | 3500 | 3950 | 2180 | 9 | 90 | 1 |
| 6 | 650×625×500 | 4150 | 4650 | 2180 | 9 | 108 | 1 |
| 8 | 650×625×500 | 6200 | 6600 | 2180 | 9 | 144 | 1 |
Automatic support systems of egg laying cages

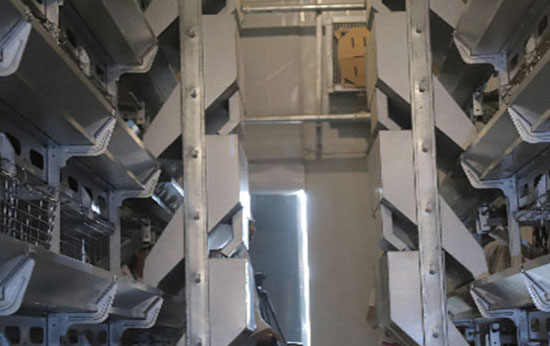

feeding system
- The material cart of the feeding system operates stably, and the distribution of materials is uniform.
- The special design of the feeding trough and the residual material collection device at the end prevents feed from being wasted, and reduces cost.

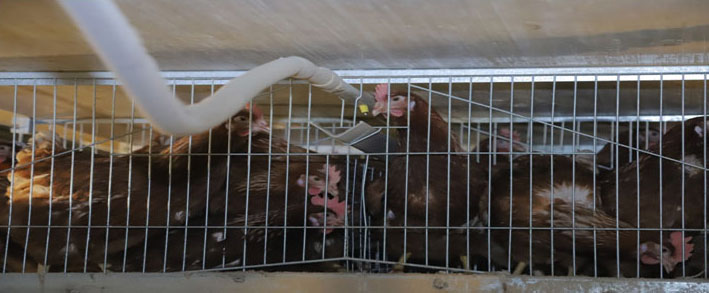

Drinking system
- A V-shaped water trough is installed below the waterline to prevent the chicken manure from getting wet.
- Waterline is set along the central axis of each group of cages, thus saving space.
Manure cleaning system
- The driving wheel is fully covered with rubber, which solves the problem of the manure belt deviating.
- The manure scraping plate is made of galvanized zinc alloy, ensuring thorough manure removal and a long service life.
Climate control system
The temperature is even, and the difference is within the range not exceeding 3 degrees Celsius, and it also meets the ventilation and cooling requirements for each season.
advantages of egg laying cages
4 million
Annual sales
700＋
Experienced employees
1200＋
Services Available
10 million
Caged chickens
- Increase egg production: a hen kept in an egg laying cage with reduced stress enjoys a higher egg production rate.
- Improve the quality of eggs: eggs are consistently cleaner and much less likely to break or get damaged, ensuring higher quality for every use.
- Improve sanitary conditions: an automatic manure cleaning system creates a cleaner and healthier environment.
- Improve labor efficiency: the automatic system reduces manual labour, such as feeding, cleaning, and collect egg.
- Good structure: it adopts the A-type and H-type structural layout, and is made of galvanized sheet materials. The structure is sturdy and the usage and maintenance costs are low.
- Efficient management：the sheet metal trough has high strength. The lower layer of the plastic food trough is equipped with a track, which can be directly stepped on during use, making it convenient for daily inspection and management. The water supply is via a waterline, which is clean and hygienic. It is also convenient for adding disinfectants for epidemic prevention and operation.
eggs laying cages prices
Egg laying cage prices are influenced by several key factors, including cage type (battery cage or enriched cage), material quality (galvanized steel, coating thickness), cage configuration (tiers, capacity per set), automation level (feeding, drinking, manure removal, egg collection), and farm scale.
| Cage Type | Layers / Tiers | Capacity per Set | Price Range (USD / set)* | Suitable For |
|---|---|---|---|---|
| A-Type Egg Laying Cage | 3–4 tiers | 96–160 hens | 80 – 150 | Small & medium farms |
| H-Type Egg Laying Cage | 4–5tiers | 72–90 hens | 200 – 350 | Medium & large farms |
| H-Type Egg laying Cage | 5–8 tiers | 90–144 hens | 350 – 600 | Large commercial farms |
Returns
chicken eggs
chicken manure
culling chickens
Investments
Land
Building
Equipment
Feed
Labor
Water
Medicine
Electricity
profits
why choose us
High return
The investment return of our cage can reach 100-200%. egg laying cage is one of the most promising cages for small investors.
Rich experience
AGICO is the leading cage manufacturer in China. AGICO has a complete production system and international project experience.
Low investment
Our cage has obviously cost-effectiveness advantage. The price of cage with the same performance is lower than the international brands.

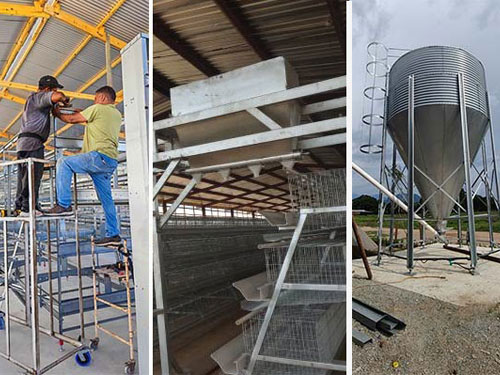

Good service
The complete pre-sales and after-sales ensures a smooth and worry-free purchasing experience for our overseas poultry farming customers.

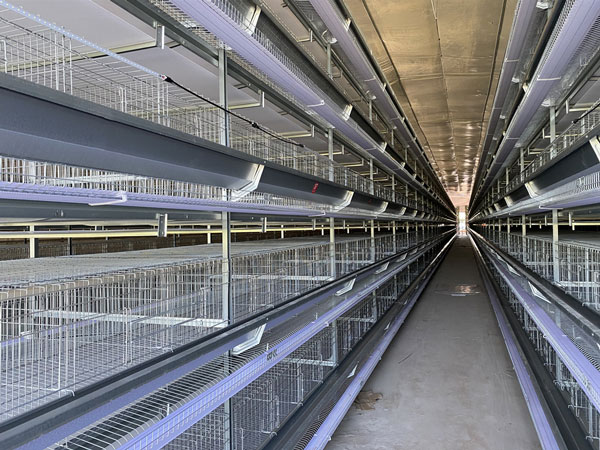

global cases of egg laying cages
50000 egg laying cages in Kenya
- Cage Type: H type, 5 tier, 2 door, 160 birds/set.
- Chicken Cage Layout: 4 rows/house, 79 sets/row, 316 sets/house.
- Chicken House Size: 105M*12M*5M.
- Total Capacity of One Chicken House: 50,560 birds/house.
50000 egg laying cages in Ghana
- Shed: 90m × 12m × 3.5m Project: A type
- Egg laying cages size: 1950mm*450mm*410mm (one set).4 tier 5 door, a set of cages keeps 160 brids 126 sets of cages can be placed in the shed, 42 sets of cages in each row, a total of 3 rows.
FAQ about egg laying cages
Q: Are your cages made of Q235 high-quality steel?
A: Yes, 275 grams per square meter of hot-dip galvanized steel. It has a smooth surface and does not easily break eggs.
Q: Why do you use a 2.15-millimeter U-shaped steel frame for your egg laying cage?
A: Because this will make the cage withstand heavy loads without deforming.
Q: Why is the inclined plane at the bottom of the egg laying cage set at 7 degrees?
A: A suitable incline makes egg from falling onto the floor and enables it to slide into the egg tray.
Q: Are the egg bands made of high-strength polypropylene?
A: Yes, polypropylene materials are resistant to bacteria and fungi and can prevent eggs from being contaminated.
Q: How many eggs can your automatic egg-collecting device collect in one hour?
A: The efficiency of our egg collection system is high, could collect 3000-6000 eggs per hour.
