laying hen cage
- Application: layers chicken house
- Chicken cage model: H Type , A type laying hen cage
- Chicken cage length: 650-2400 mm
- Chicken cage width: 1200-2210 mm.
- Tier: 2-9 layers
Turnkey solutions for laying hen cage
Recently, with the rapid development of automatic breeding modes, the laying hen cage mode is widely recognized. For laying hen cages, generally after the chicks grow to 15-18 weeks, move the chicks from the egg incubator to the chicken layer cages to continue breeding. A layer chicken is bred to 72 weeks until the end of the egg-laying cycle. The newly developed laying hen cages by AGICO poultry industry have a lower cost and investment. It is suitable for chicken coops with a capacity of less than 30,000 chickens.
The advantages of AGICO laying hen cage
- AGICO upgraded cage is more than 7.5 kg.
- AGICO upgraded cage is smooth and has bright surface, could protect egg and chicken feet.
- AGICO upgraded cage adds one wire, don’t have no gap, so eggs are saved.
- AGICO upgraded cage has connector. Cage is more stable, more neat and stronger.
- AGICO upgraded cage’s drinker with cup.
- AGICO upgraded cage has metal connector thick and wide 80mm wide, 0.6mm thick.

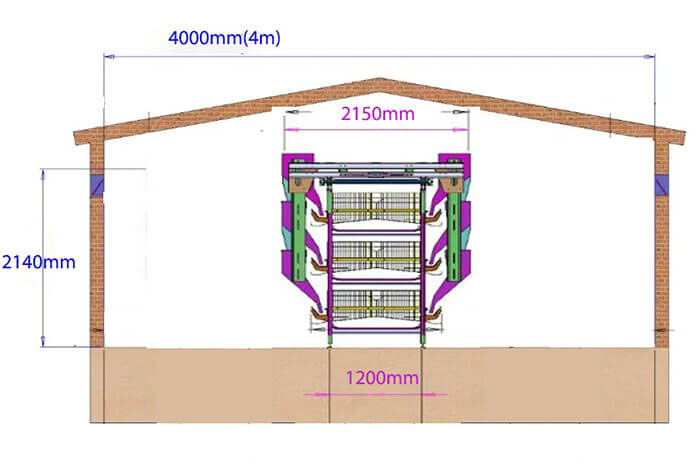

the parameter of laying hen cage
- Chicken cage model: H-Type layer cage, 3 tiers, 144 birds/set
- Number of chicken cages: 4 sets
- Design layout: 4 sets/row, 1 row/house
- Number of chickens: 144 birds/set ×4 sets/row ×1 row/house ＝576 birds/house
- Chicken house size (L×W×H): 10m×4m×3m
- Chicken cage size: 1800 mm×1200 mm×2140 mm
This coop is designed for 500 small-scale laying hen production customers with a scale of 500 laying hens. It adopts 4 sets of three-layer H type layer cages, each cage can breed up to 144 layers, and four sets of chicken cages can breed up to 576 layers. Because of breeding is small, the coop layout is arranged in a single row.
| Tier | Capacity | Cage size (cm) | Cell size | Cell capacity | Door | Area /bird(cm2) |
|---|---|---|---|---|---|---|
| 3 | 90 birds/set | 195*230*150 | 39*41*41 | 3 birds/cell | 5 doors | 533 |
| 3 | 96 birds/set | 172*230*150 | 43*41*41 | 4 birds/cell | 4 doors | 440.75 |
| 3 | 120 birds/set | 195*230*150 | 37*41*41 | 4 birds/cell | 5 doors | 399.75 |
| 3 | 120 birds/set | 215*230*150 | 43*41*41 | 4 birds/cell | 4 doors | 440.75 |
| 4 | 120 birds/set | 195*230*150 | 39*41*41 | 3 birds/cell | 5 doors | 533 |
| 4 | 128 birds/set | 172*230*150 | 43*41*41 | 4 birds/cell | 4 doors | 440.75 |
| 4 | 160 birds/set | 195*230*150 | 37*41*41 | 4 birds/cell | 5 doors | 399.75 |
| 4 | 160 birds/set | 215*230*150 | 43*41*41 | 4 birds/cell | 4 doors | 440.75 |
| 3 | 126 birds/set | 183*230*150 | 61*50*37 | 7 birds/cell | 3 doors | 435.7 |
| Tiers | Cell size | Set size | Capacity | Birds/cell | Area/bird(cm2) | Cage door |
|---|---|---|---|---|---|---|
| 3 | 450*500*410 | 1800*1000*2200 | 120 | 5 | 450 | 4 doors/side |
| 4 | 450*500*410 | 1800*1000*2800 | 160 | 5 | 450 | 4 doors/side |
| 3 | 450*600*410 | 1800*1200*2140 | 144 | 6 | 494 | 4 doors/side |
| 4 | 450*600*410 | 1800*1200*2790 | 192 | 6 | 494 | 4 doors/side |
| 5 | 450*600*410 | 1800*1200*3440 | 240 | 6 | 494 | 4 doors/side |
| 6 | 450*600*410 | 1800*1200*4090 | 288 | 6 | 494 | 4 doors/side |
| 3 | 650*625*500 | 650*1250*2200 | 54 | 9 | 451.38 | 1 door/side |
| 4 | 650*625*500 | 650*1250*2850 | 72 | 9 | 451.38 | 1 door/side |
| 5 | 650*625*500 | 650*1250*3500 | 90 | 9 | 451.38 | 1 door/side |
| 6 | 650*625*500 | 650*1250*4150 | 108 | 9 | 451.38 | 1 door/side |
| 8 | 650*625*500 | 650*1250*6200 | 144 | 9 | 451.38 | 1 door/side |
how to choose A type and H type laying hen cage
| Item | Full automatic H type | Full automatic A type |
|---|---|---|
| Raising Quantity Per House | 10000-30000 birds | 10000-30000 birds |
| Feed-to-egg Ratio | 2.0:1 | 2.0:1 |
| Environment | Constant temperature and humidity | Constant temperature and humidity |
| Mortality In The Whole Raising Process | Less than 5% | Less than 5% |
| Service Life | 20 years | 20 years |
| Building Cost | High | low |
| Land Size | High | low |
| Labor Cost | High | low |
| Management | High | low |
AGICO’s single laying hen cage support length range is 650-2400 mm, and the width range is 2100-2210 mm. The customer could choose according to their needs. The laying hen cage design is 2-9 layers. The cage’s specific height is decided based on the number of layers. AGICO Group has a professional poultry cage design team. If you don’t know what kind of chicken coop to choose or how to lay out your coop, you just need to trust AGICO. The chicken coop equipment expert provides a one-stop poultry breeding solution.
Auxiliary Equipment of laying hen cage
automatic feeding
The automatic ladder feeding system can adjust the distributed feeds, avoid feed waste.
automatic heating
The advanced auto heating system connects to the cage mesh directly, maximizing the heating and reducing fuel consumption.
automatic Manure Removal
Auto manure removal system delivers the manure outside the shed, reduces ammonia inside the shed, and poses less hazard to birds.
automatic drinking
This system includes a water pipe, v-shaped sink, pressure regulator, nipple drinker, water filter, mediator.
egg collection machine
Automatic egg collection collects eggs produced by each chicken and through the operation of the device sends it to the specified location.
egg incubator
AGICO egg incubator could precisely control hatching temperature, humidity, ventilation, egg flipping, and other conditions.
why choose AGICO Group
01
Efficiency
An automatic system could save labor and collect more eggs.
02
cost effective
Automatic systems reduce feed waste and labor costs.
03
Healthy and hygiene
Automatic manure systems and proper ventilation reduce the risk of disease.
04
Sustainability
An efficient system could reduce resource consumption and environmental impact.
AGICO produces whole system products for poultry farms, including automatic battery cages for layer, broiler chickens, pullet chicken, and rabbit with fully automatic equipment for feeding, egg collection, manure cleaning, ventilation, lighting, and disinfection.
With an innovative technical team, a professional sales team, and a responsible after-sales team, AGICO always provides the best solution for poultry farmers and poultry product distributors. Our goal is to continuously upgrade technology and equipment, provide easy-to-understand and operate solutions at reasonable prices to ensure the best production.
